Premium Heavy Duty Polyurethane

- - - -

Description
Model Chart
PDF's
Image Gallery

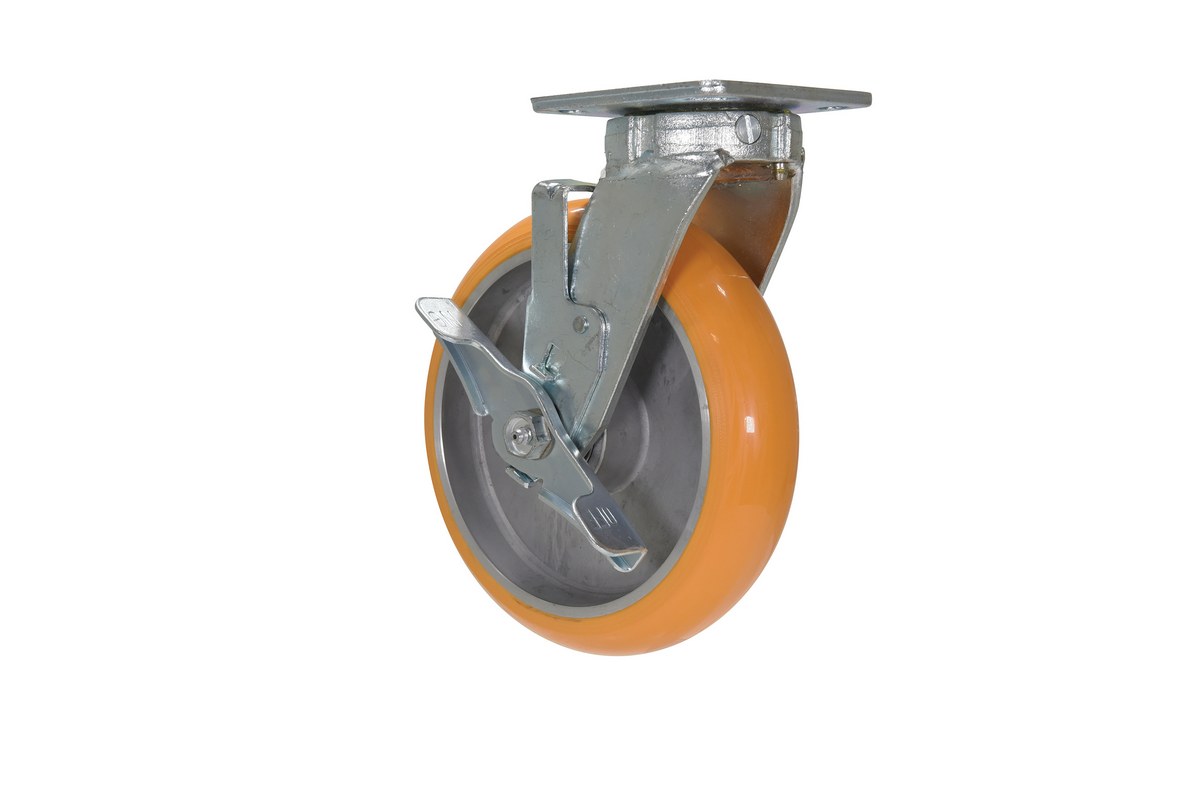

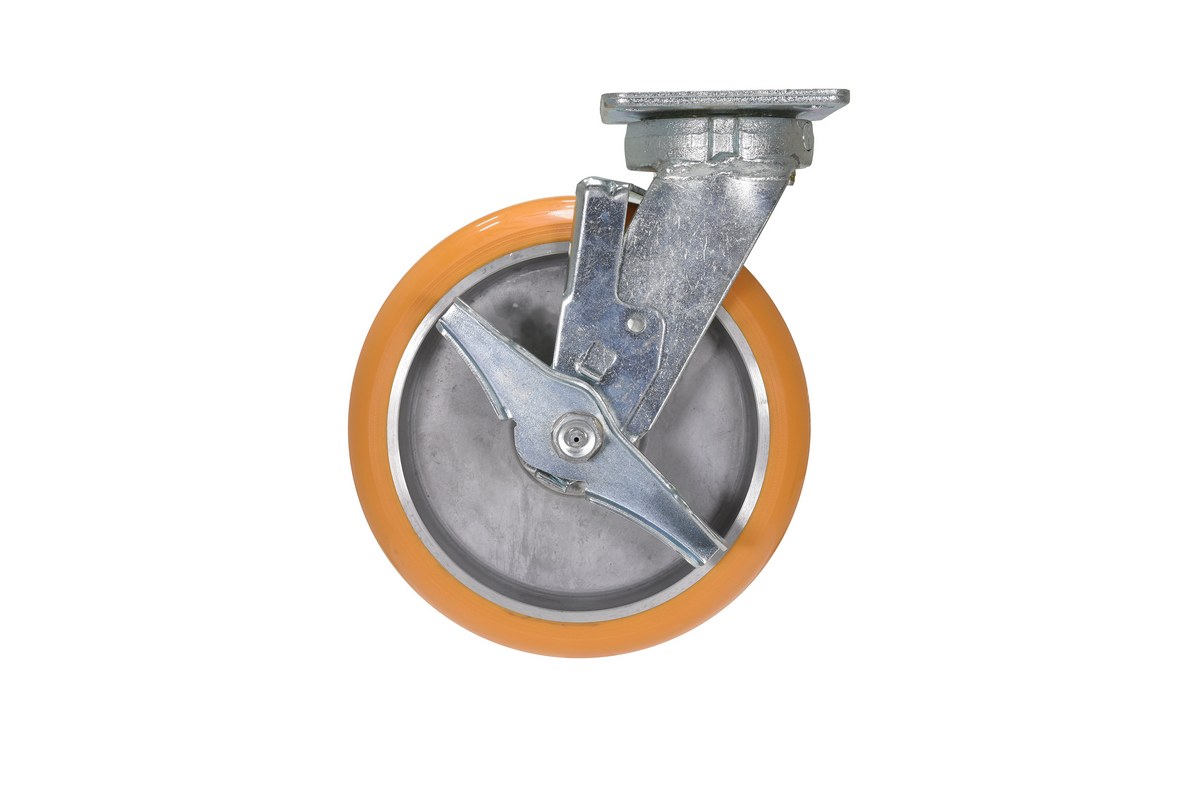

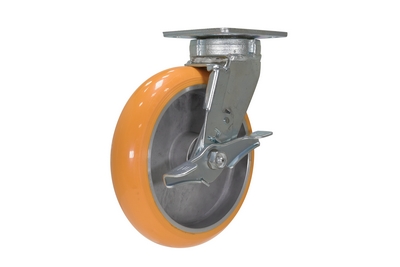

CST-F40-8X2SI-SWB_A.jpg CST-F40-8X2SI-SWB_B.jpg CST-F40-8X2SI-SWB_C.jpg
Premium Heavy Duty Polyurethane

model: CST-F40-8X2SI-SWB



Premium Heavy Duty Polyurethane

model: CST-F40-8X2SI-SWB

Featured Casters & Wheels


Glass Filled Nylon (RX)
Cast Iron Wheel
High-Quality Polyurethane-Elastomer Casters
Phenolic Casters
Flat-Free (Foam-Filled) Casters
Conductive Rubber (TPR) Wheel
Mold On Rubber Casters
Mold On Rubber (On Aluminum) Casters
High-Temp Phenolic Casters
model chart

Product Family Overview

Print Friendly
Premium Heavy Duty Polyurethane
SERIES: CST-F40-SI

Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty).
Ideal for applications where superior strength and high ergonomic performance is required. Orange
tread color. 85 +/-5 Shore A. Wheel core is constructed of aluminum. Made in Taiwan.


  • Kingpinless
  • High Capacity
  • Non-Marking
  • Precision Sealed Ball Bearing
  • Ideal for TOWLINE Applications (3/8" diameter steel ball bearings absorb thrust and load)
  • Donut Tread Allows for Easier Roll Ability
  • Precision Machined and Induction Hardened Raceway

Made of exclusive premium grade proprietary polyurethane with donut tread (SI Heavy Duty).
Ideal for applications where superior strength and high ergonomic performance is required. Orange
tread color. 85 +/-5 Shore A. Wheel core is constructed of aluminum. Made in Taiwan.


  • Kingpinless
  • High Capacity
  • Non-Marking
  • Precision Sealed Ball Bearing
  • Ideal for TOWLINE Applications (3/8" diameter steel ball bearings absorb thrust and load)
  • Donut Tread Allows for Easier Roll Ability
  • Precision Machined and Induction Hardened Raceway

Other Better Casters

 Polyurethane Casters (Blue) Polyurethane (SI) Casters Polyurethane (SI - Electrostatic Dissipating) Casters TPR(Thermoplastic Rubber) On Stainless Still Casters

Additional Models In This Family
view entire Image Gallery

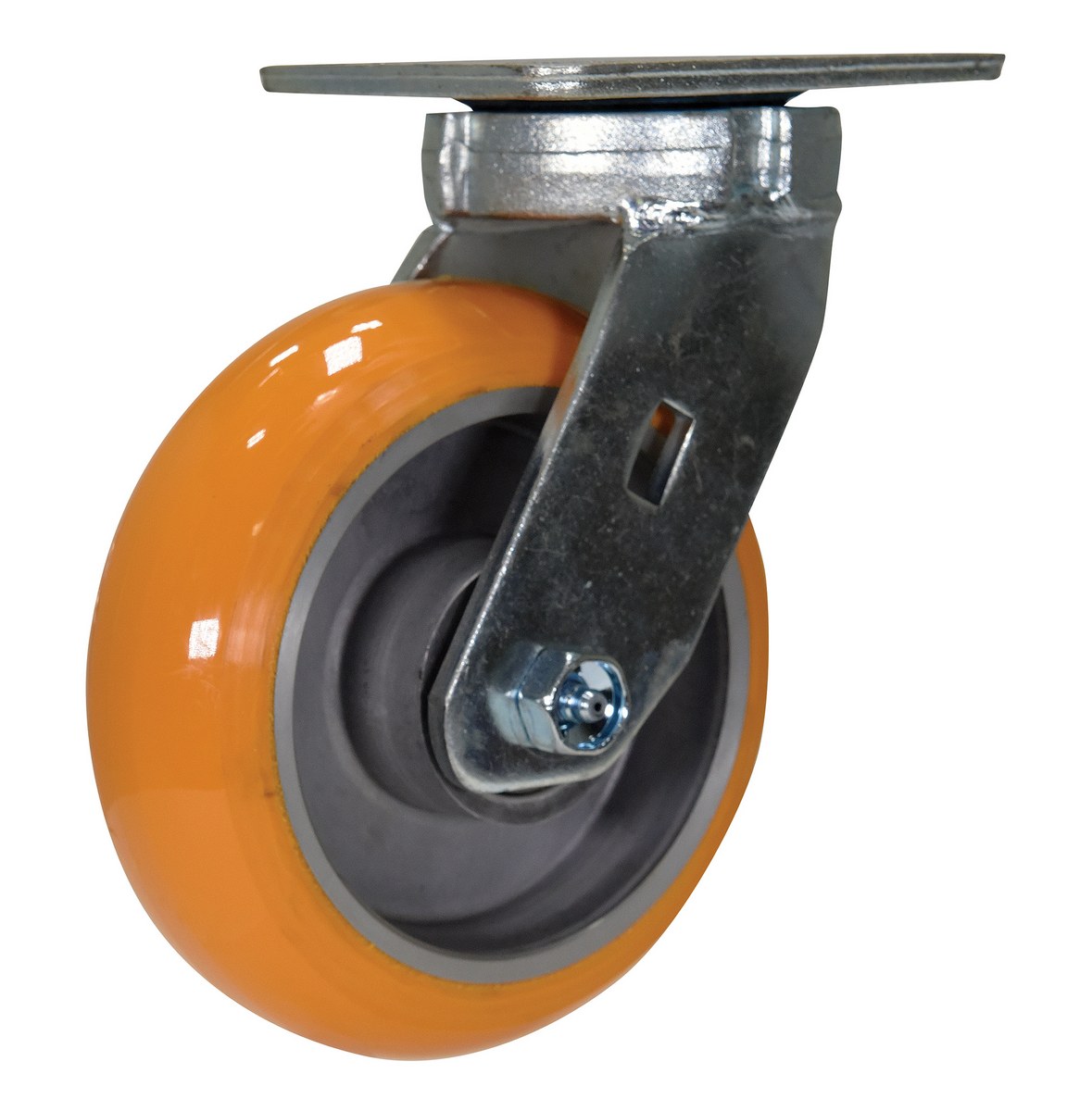

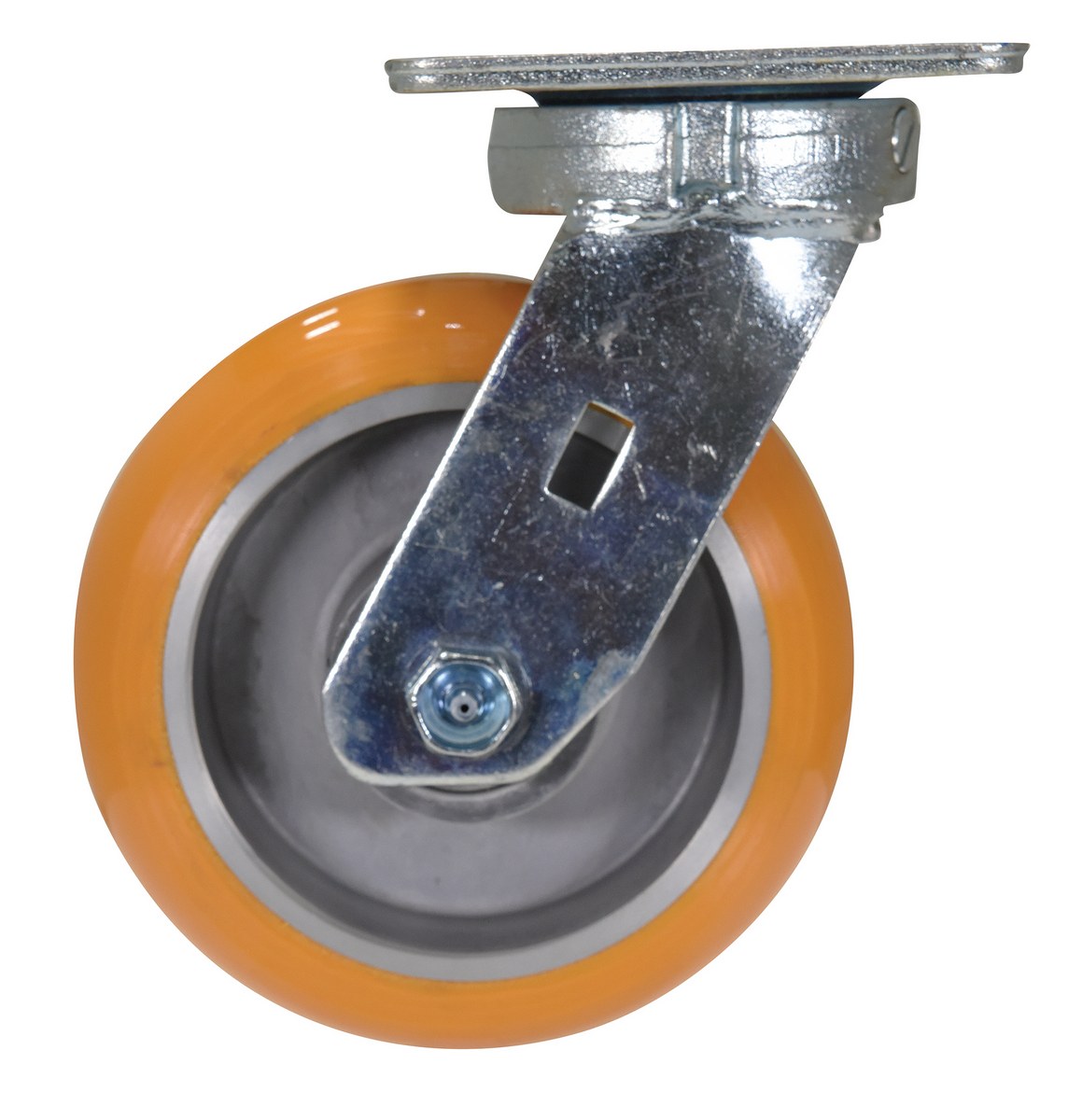

CST-F40-6X2SI-S

model CST-F40-6X2SI-S

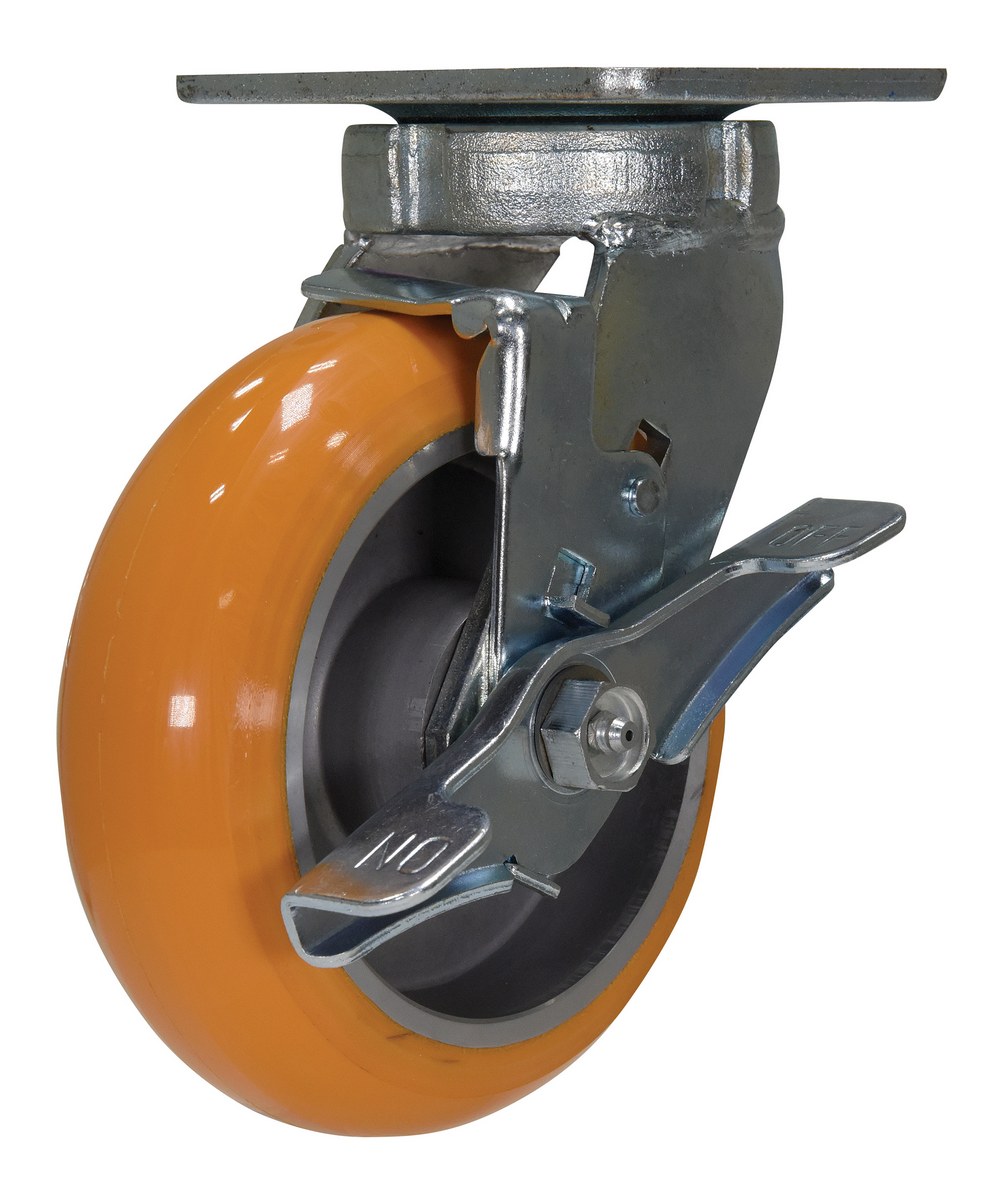

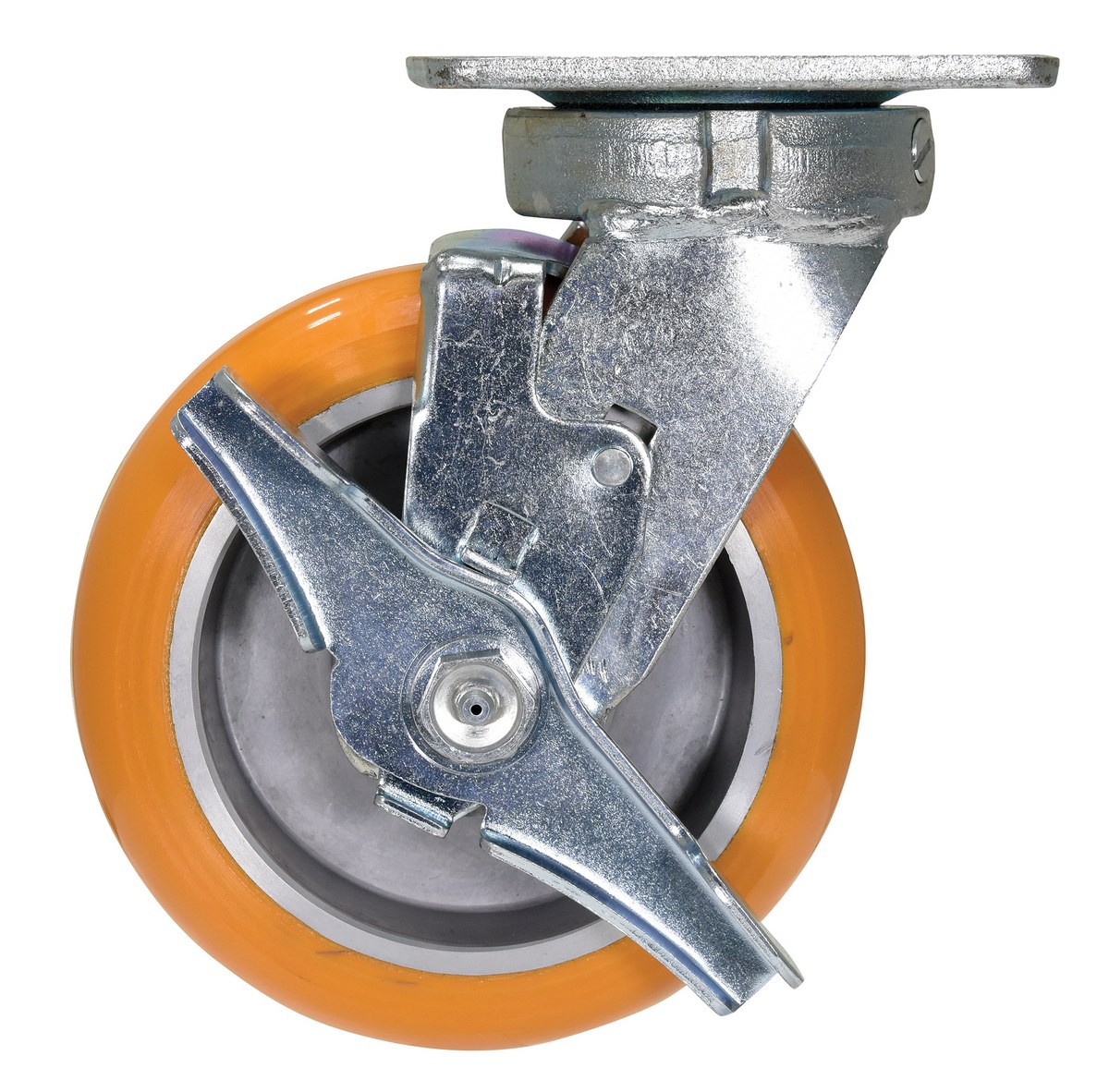

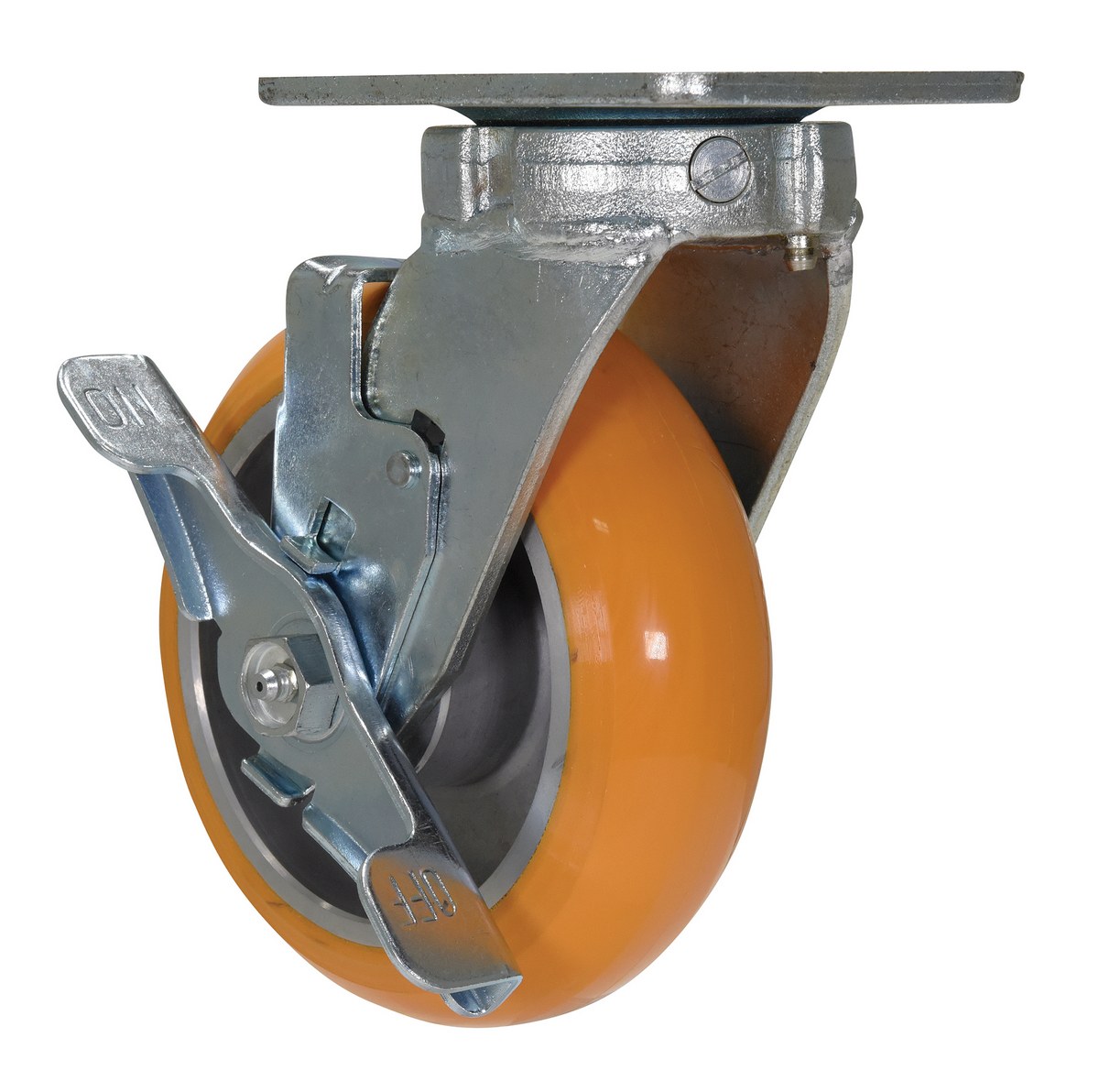

CST-F40-6X2SI-SWB

model CST-F40-6X2SI-SWB

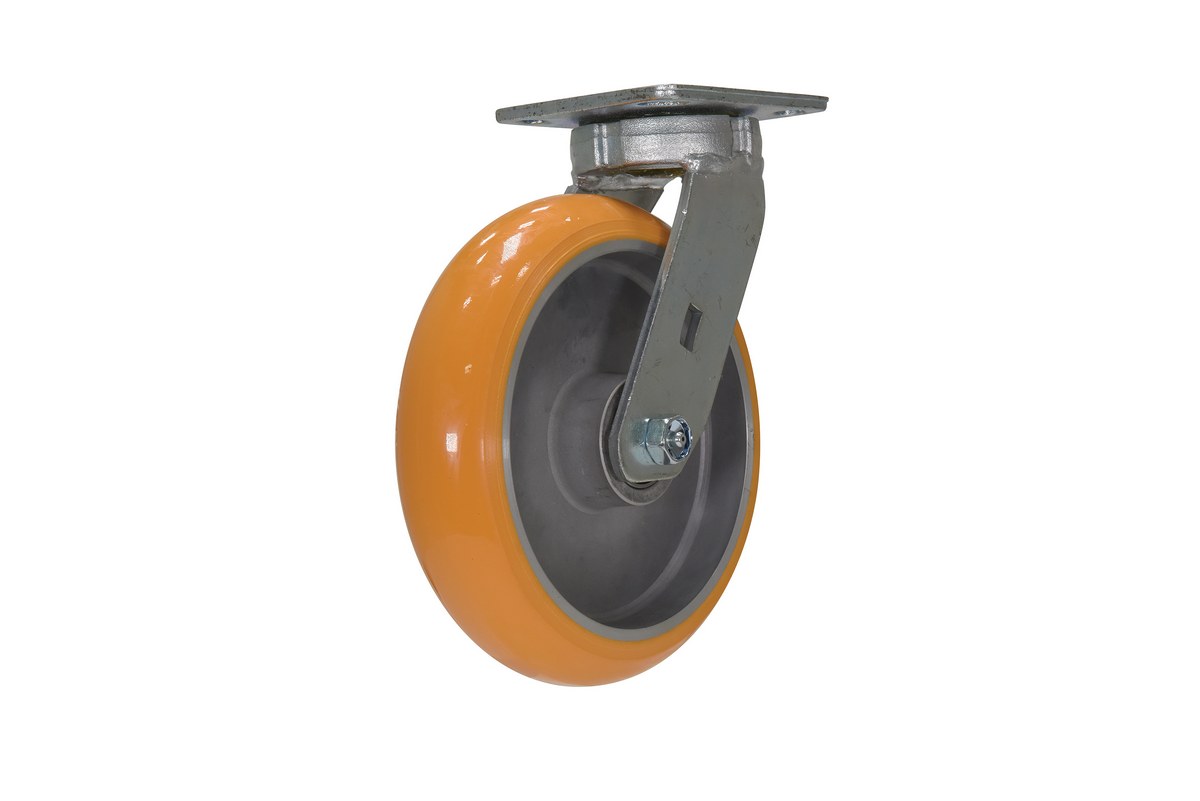

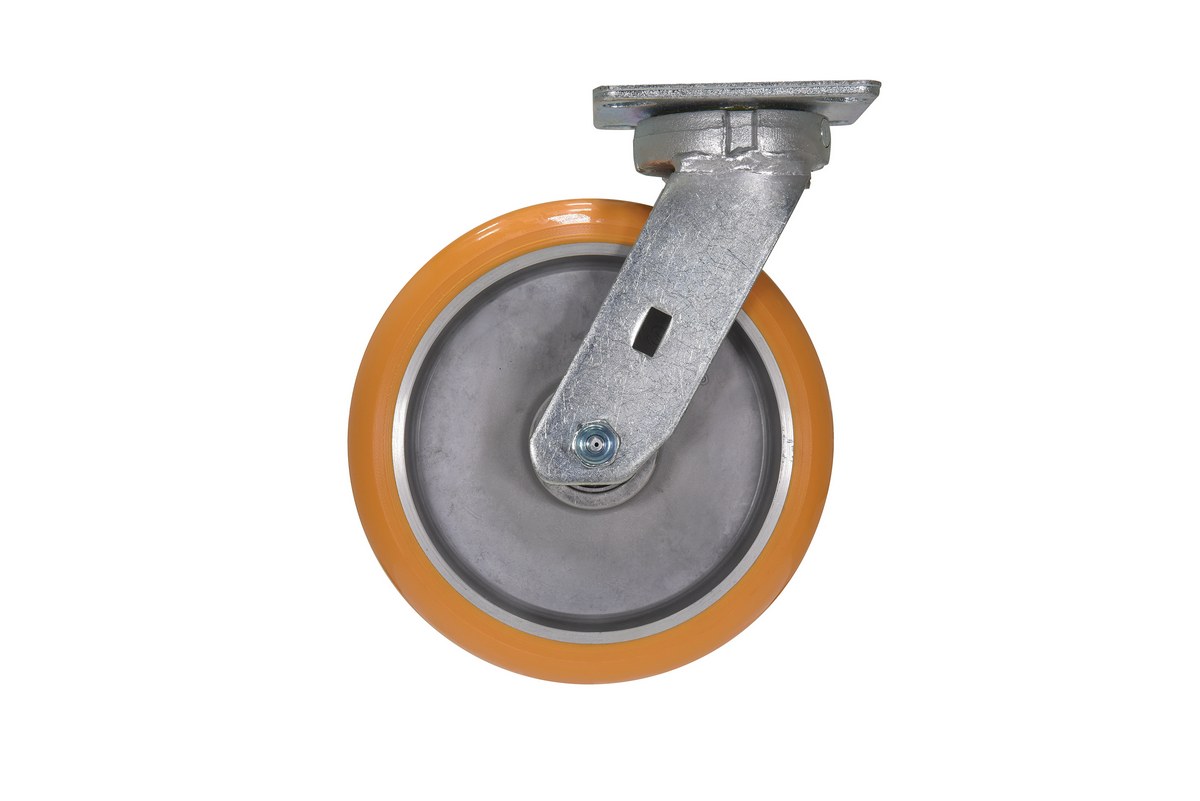

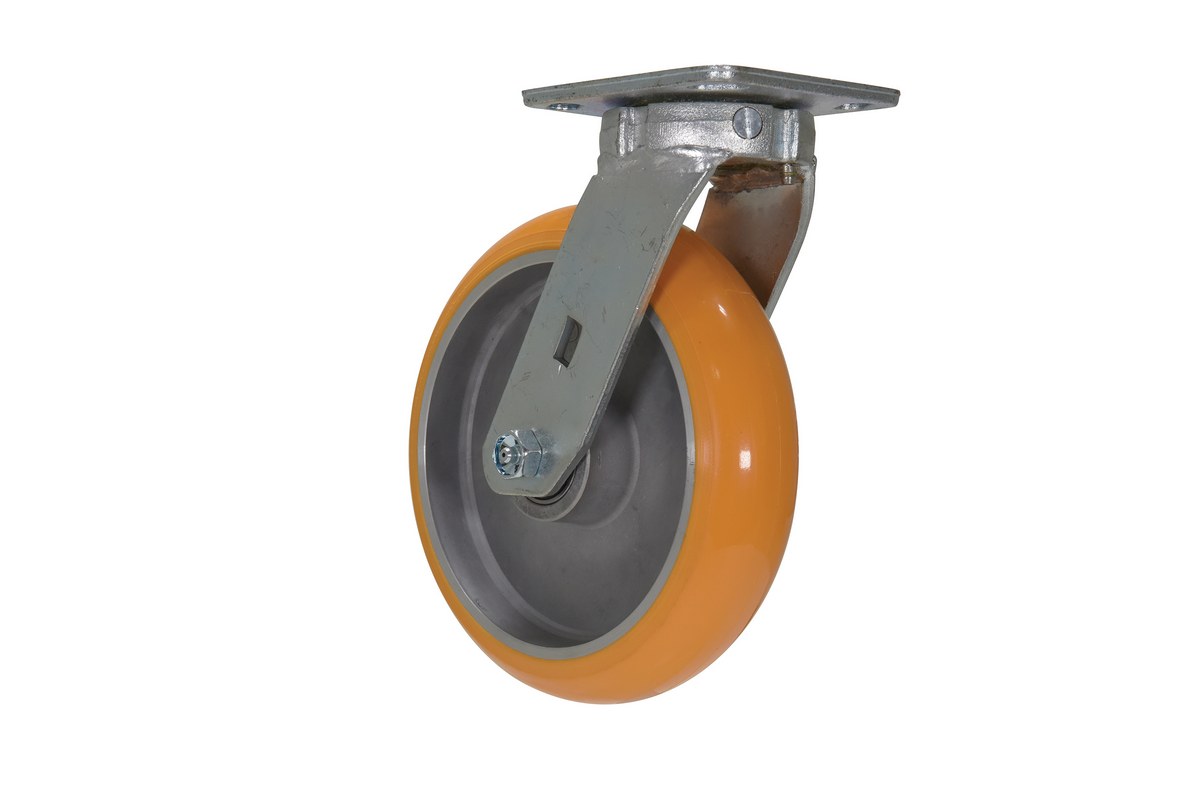

CST-F40-8X2SI-S

model CST-F40-8X2SI-S

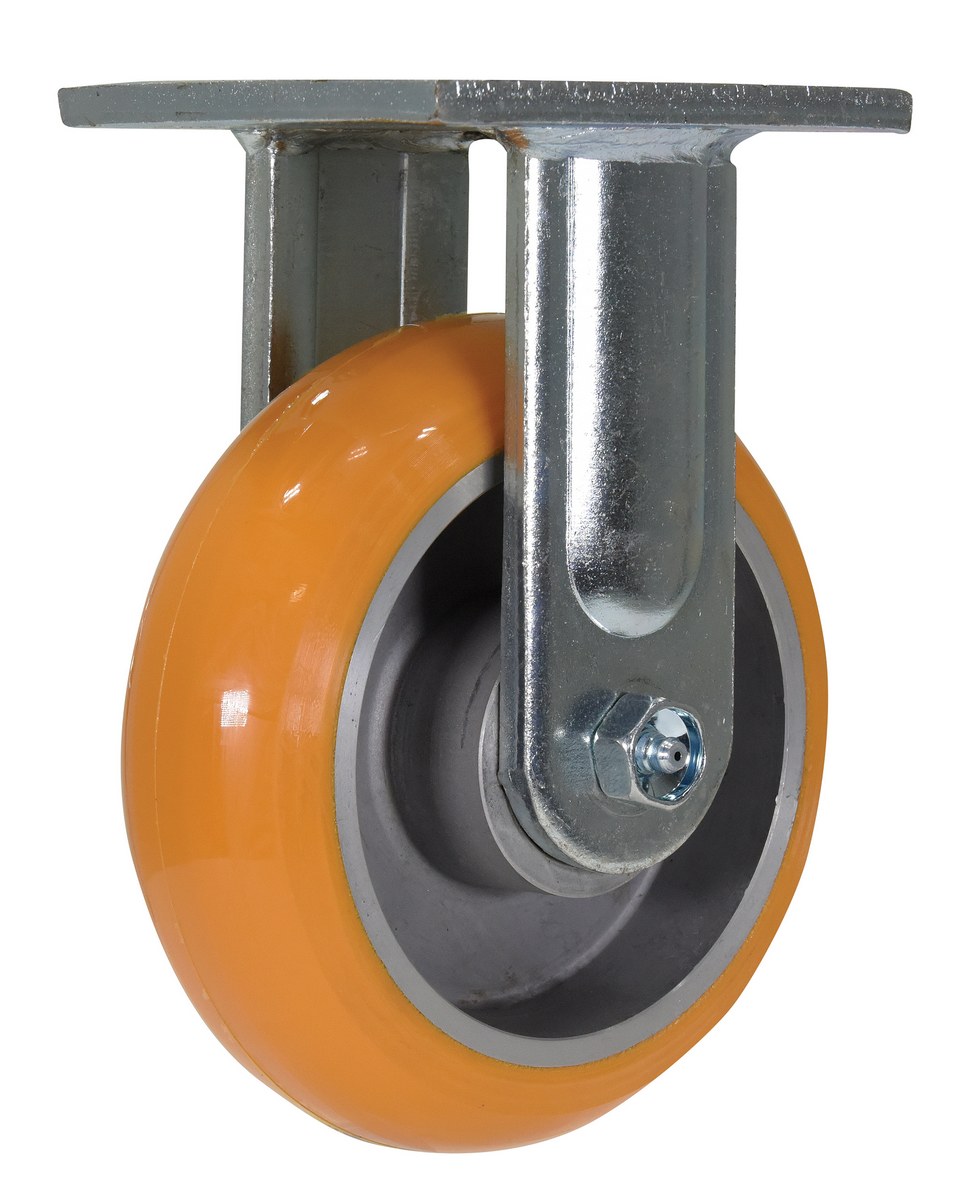

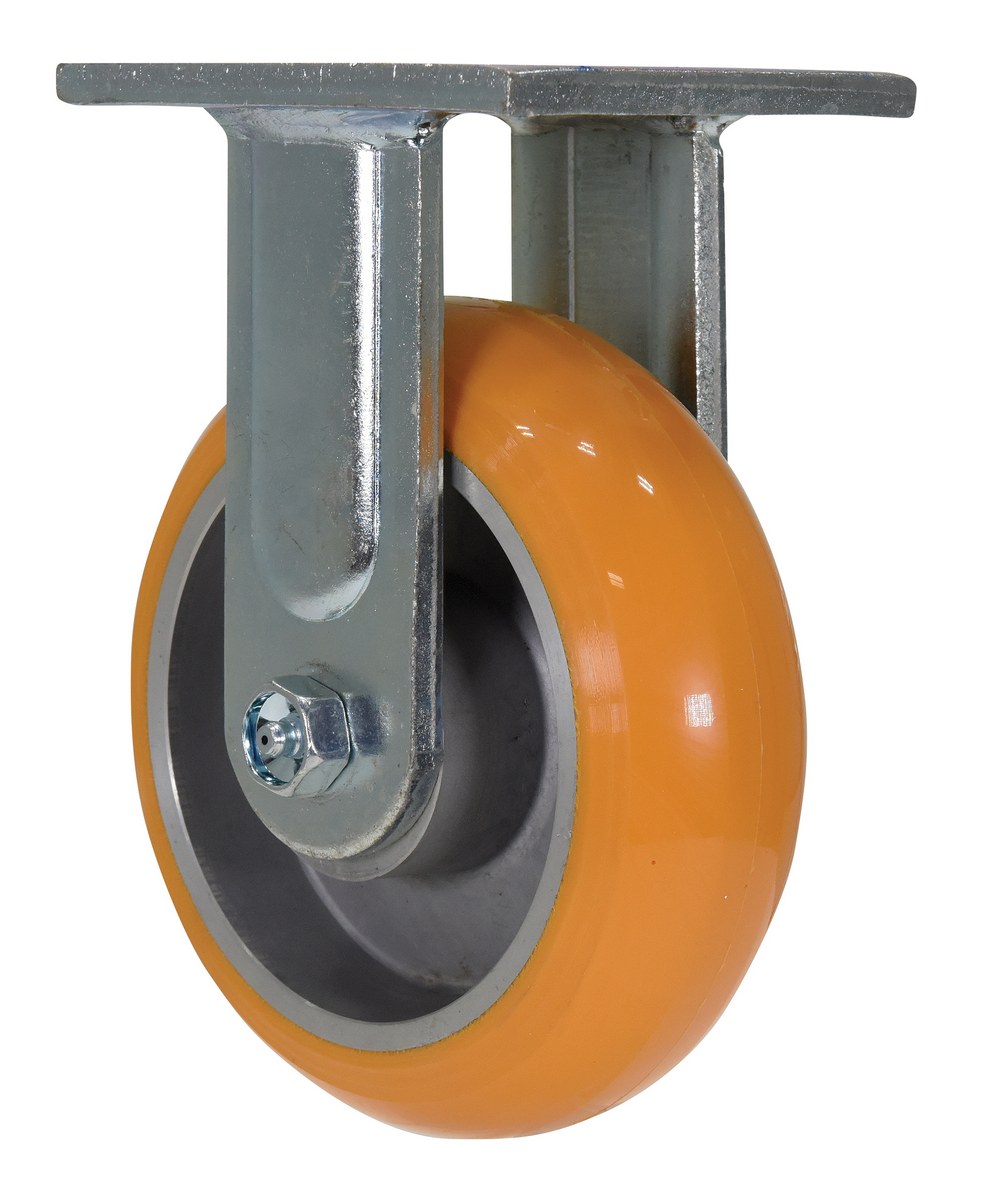

CST-F40-6X2SI-R

model CST-F40-6X2SI-R

model chart
How To Purchase


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size		 Type Capacity
(lbs.)		 Overall
Height		 Top Plate
Size		 Net Wt.
(lbs)
CST-F40-6X2SI-R CST-F40-6X2SI-R3 YEARS Limited Warranty6 x 2RIGID15007-1/2 4 x 4-1/26

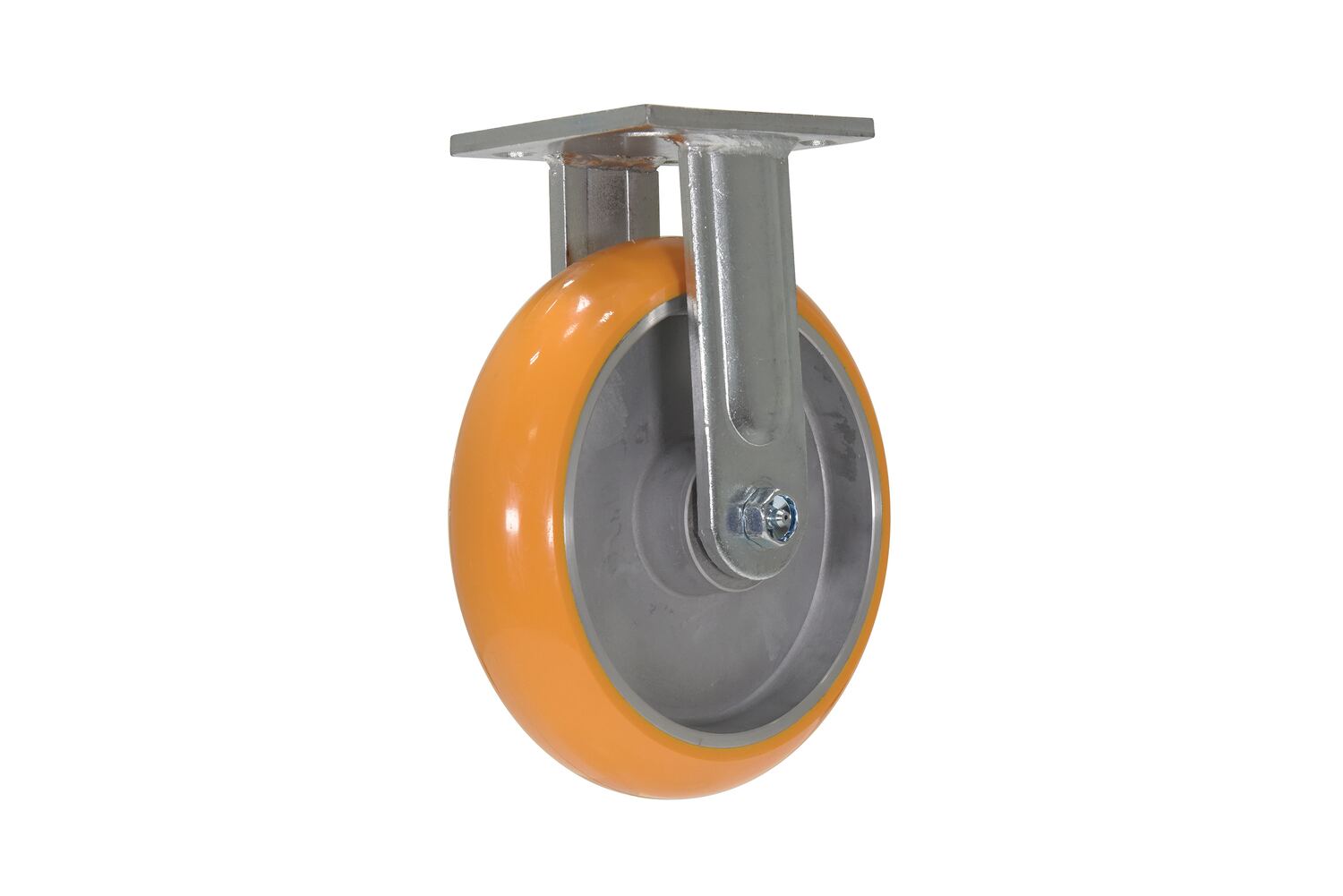

CST-F40-8X2SI-R CST-F40-8X2SI-R3 YEARS Limited Warranty8 x 2RIGID20009-1/2 4 x 4-1/28
CST-F40-6X2SI-S CST-F40-6X2SI-S3 YEARS Limited Warranty6 x 2SWIVEL15007-1/2 4 x 4-1/27
CST-F40-8X2SI-S CST-F40-8X2SI-S3 YEARS Limited Warranty8 x 2SWIVEL20009-1/2 4 x 4-1/28
CST-F40-6X2SI-SWB CST-F40-6X2SI-SWB3 YEARS Limited Warranty6 x 2SWIVEL W/BRAKE15007-1/2 4 x 4-1/27
CST-F40-8X2SI-SWB CST-F40-8X2SI-SWB3 YEARS Limited Warranty8 x 2SWIVEL W/BRAKE20009-1/2 4 x 4-1/28

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Premium Heavy Duty Polyurethane PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


CST-F40-6X2SI-R

CST-F40-6X2SI-S

CST-F40-6X2SI-SWB

CST-F40-8X2SI-R

CST-F40-8X2SI-S

CST-F40-8X2SI-SWB

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...
