Thermoplastic Polyurethane Rubber Casters

SERIES: CST-B28-TPR

Thermoplastic polyurethane rubber casters provide low resistance when maneuvering with heavy loads. Resistant to chemicals, acids, bases, alcohol, salts, and steam. Gray tread color. Wheel core is constructed of polypropylene. CST-B28 85 +/-5 Shore A. Made in China.

Resistant to chemical, acids, bases, alcohol, salts, & The Steam
Hardened Bearing Raceway
Anti-Corrosive & Rust Resistant Zinc Plate Finish
Precision Ball Bearing

Resistant to chemical, acids, bases, alcohol, salts, & The Steam
Hardened Bearing Raceway
Anti-Corrosive & Rust Resistant Zinc Plate Finish
Precision Ball Bearing

Other Good Casters

Poly On Poly Casters (Orange)

Pneumatic Casters

Glass Filled Nylon Casters

Polyurethane Casters

Follow @vestilmfg

Additional Models In This Family
view entire Image Gallery

CST-B28-4X1TPR-SWB

CST-B28-4X1TPR-R

CST-B28-5X1TPR-SWB

CST-B28-5X1TPR-R

CST-B28-5X1TPR-S

CST-B28-4X1TPR-SWB

CST-B28-5X1TPR-R

CST-B28-4X1TPR-S

CST-B28-5X1TPR-R

CST-B28-4X1TPR-R

CST-B28-5X1TPR-S

CST-B28-4X1TPR-SWB

CST-B28-5X1TPR-SWB

model chart

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.

Model	PDFs	Caster Size	Type	Capacity (lbs.)	Overall Height	Top Plate Size	Net Wt. (lbs)

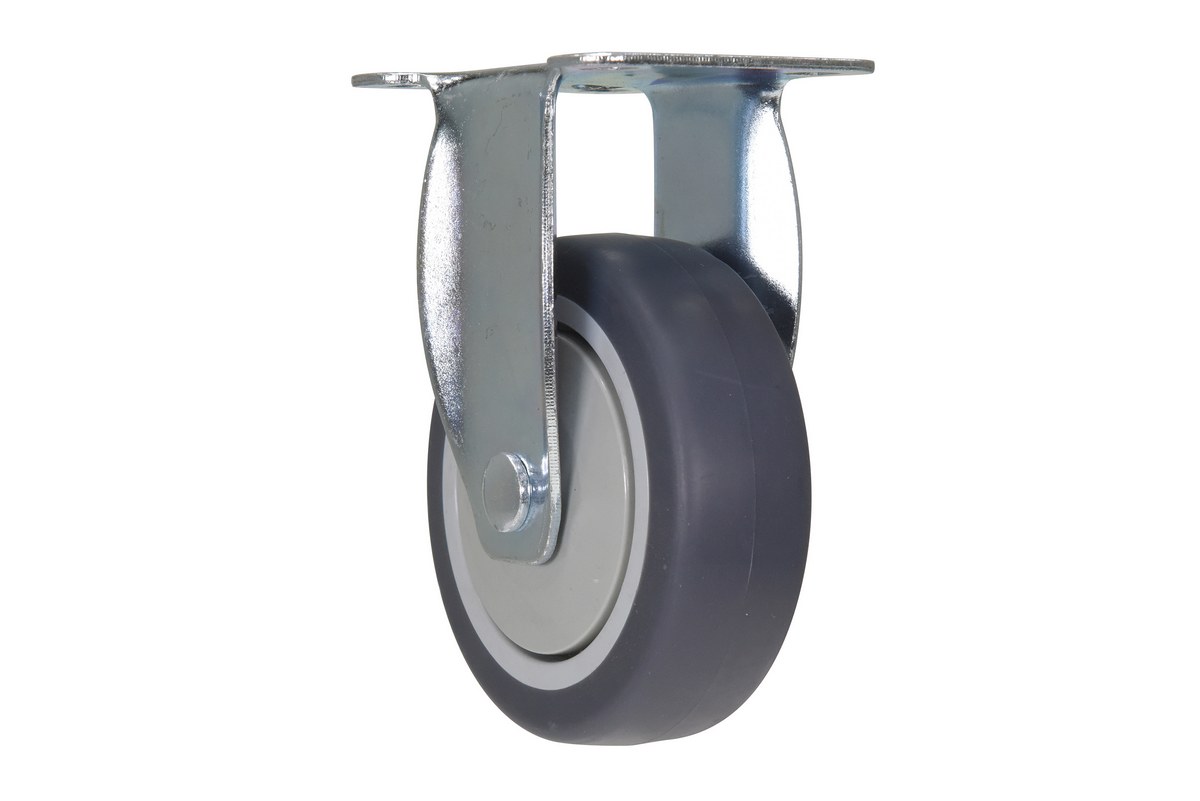

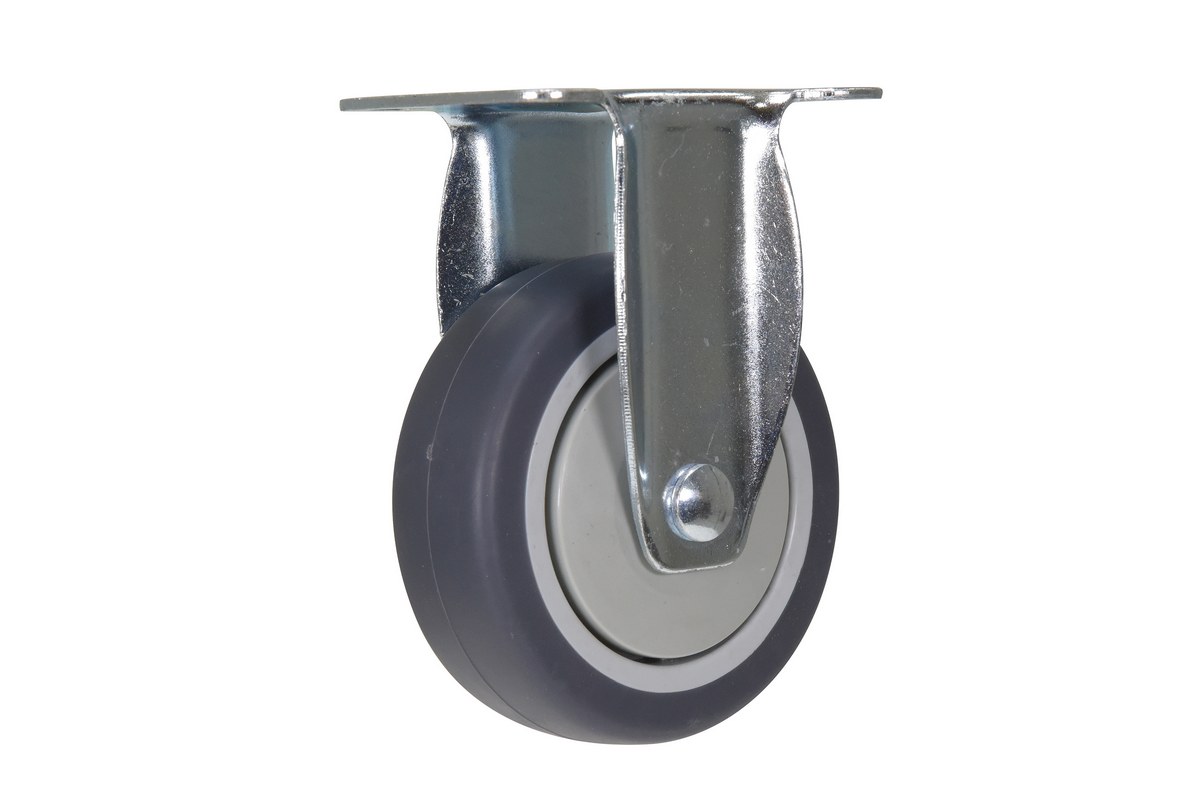

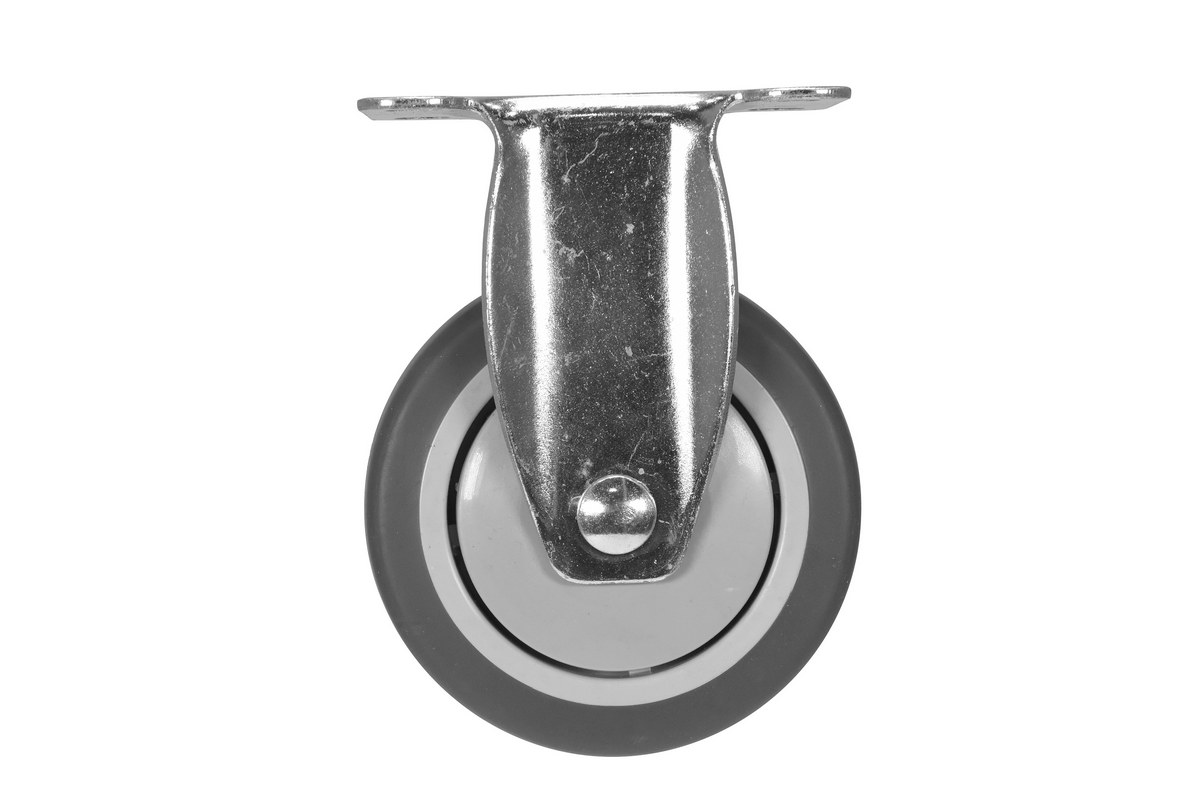

CST-B28-4X1TPR-R	1YEAR Limited Warranty	4 x 1-1/4	RIGID	220	5-1/4	2-5/8 x 3-3/4	3

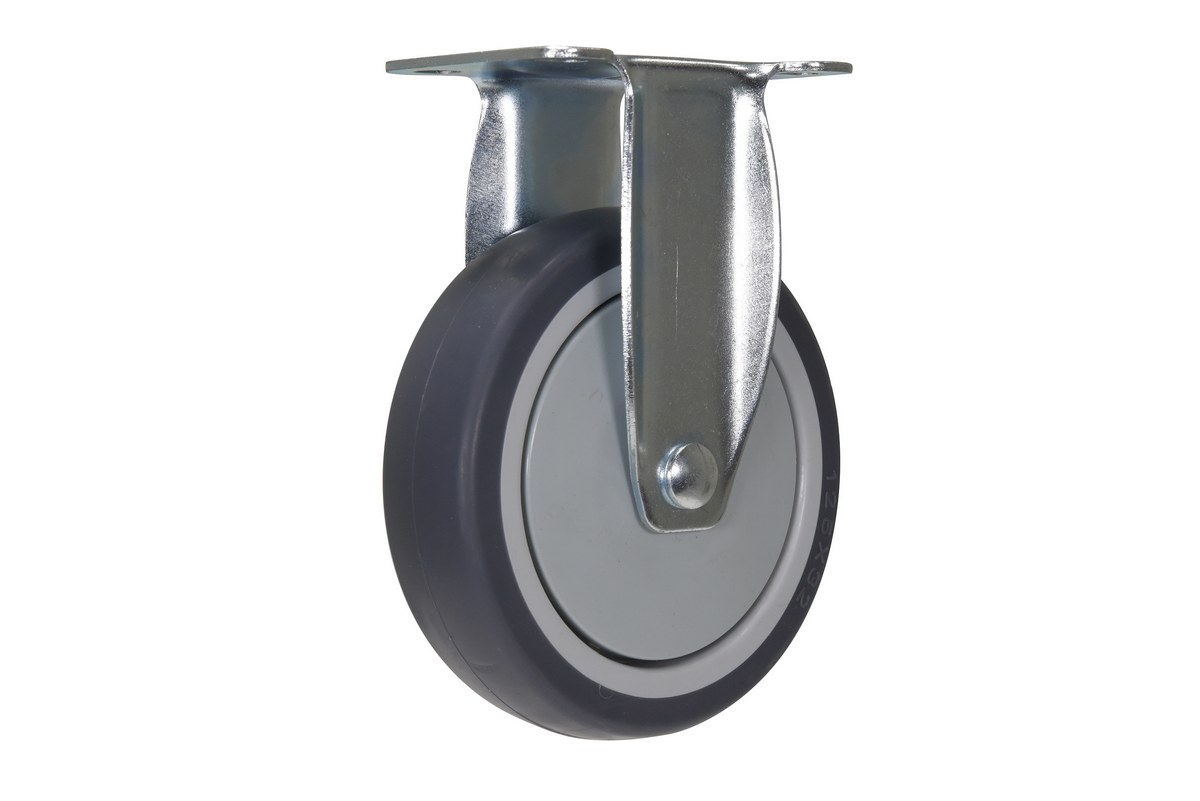

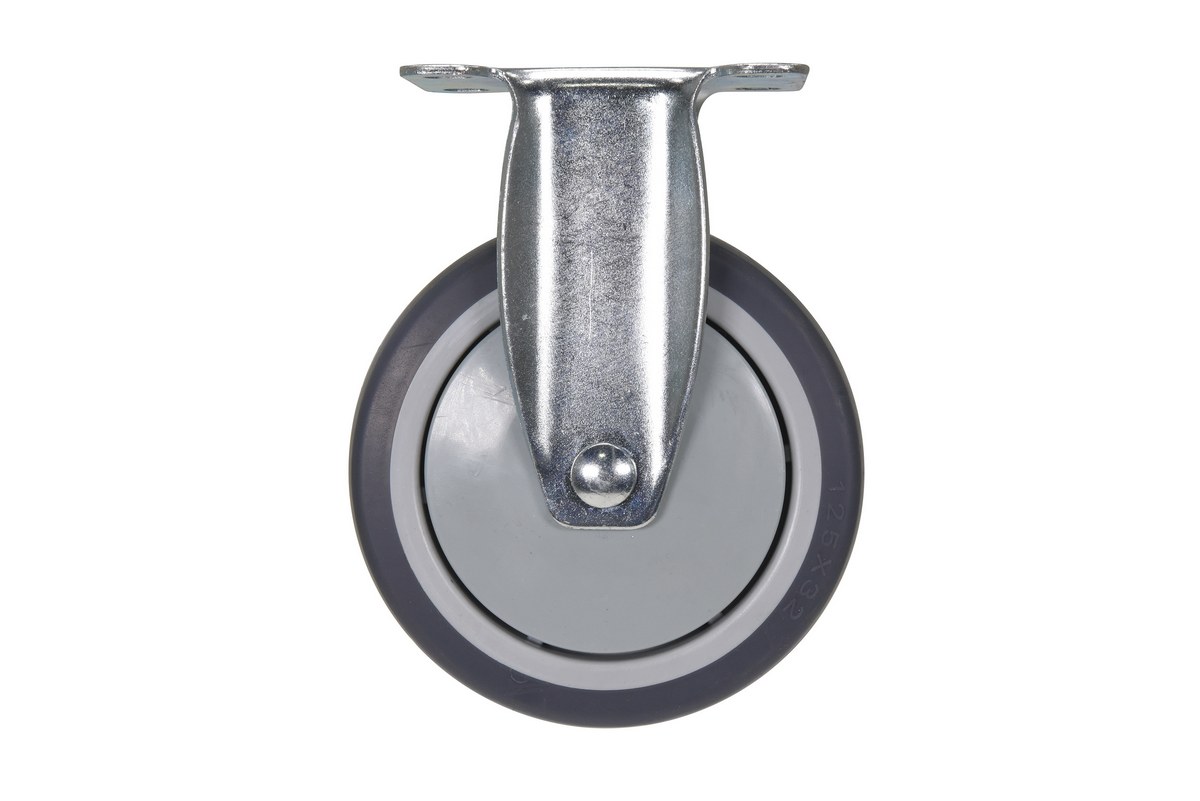

CST-B28-5X1TPR-R	1YEAR Limited Warranty	5 x 1-1/4	RIGID	308	6-1/4	2-16/25 x 3-3/4	3

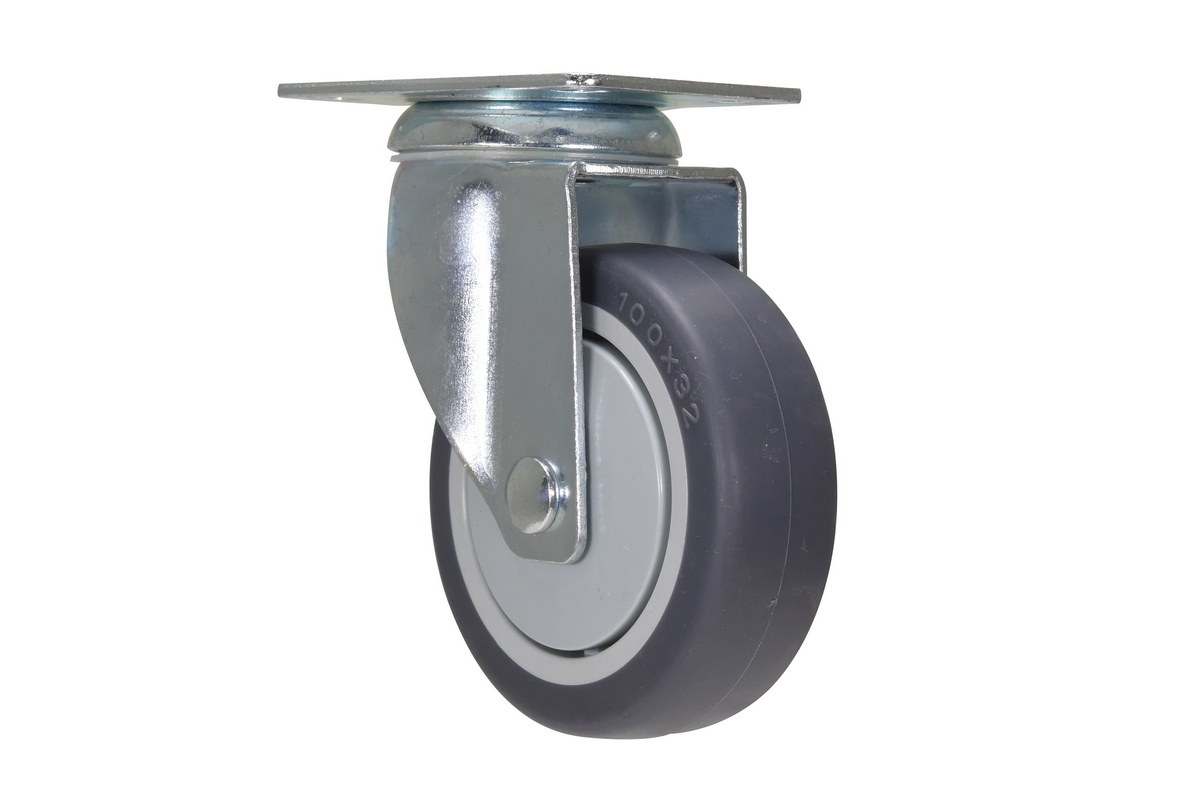

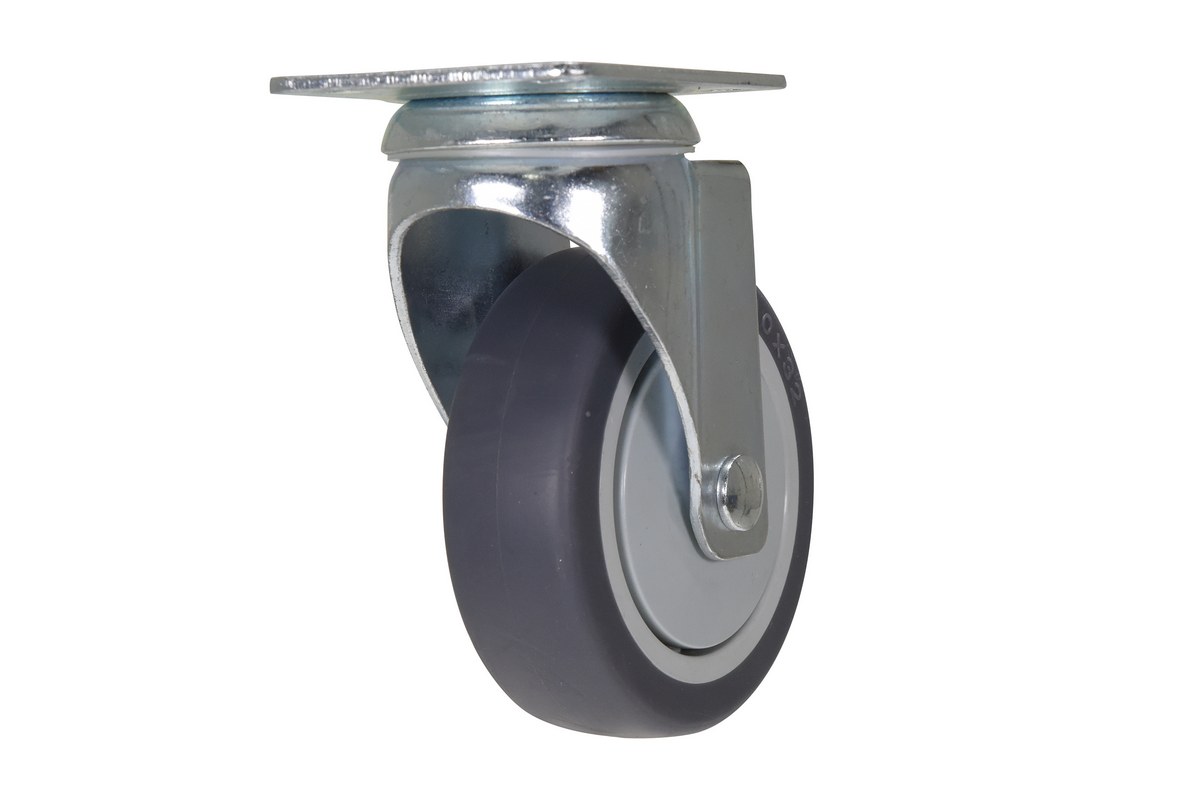

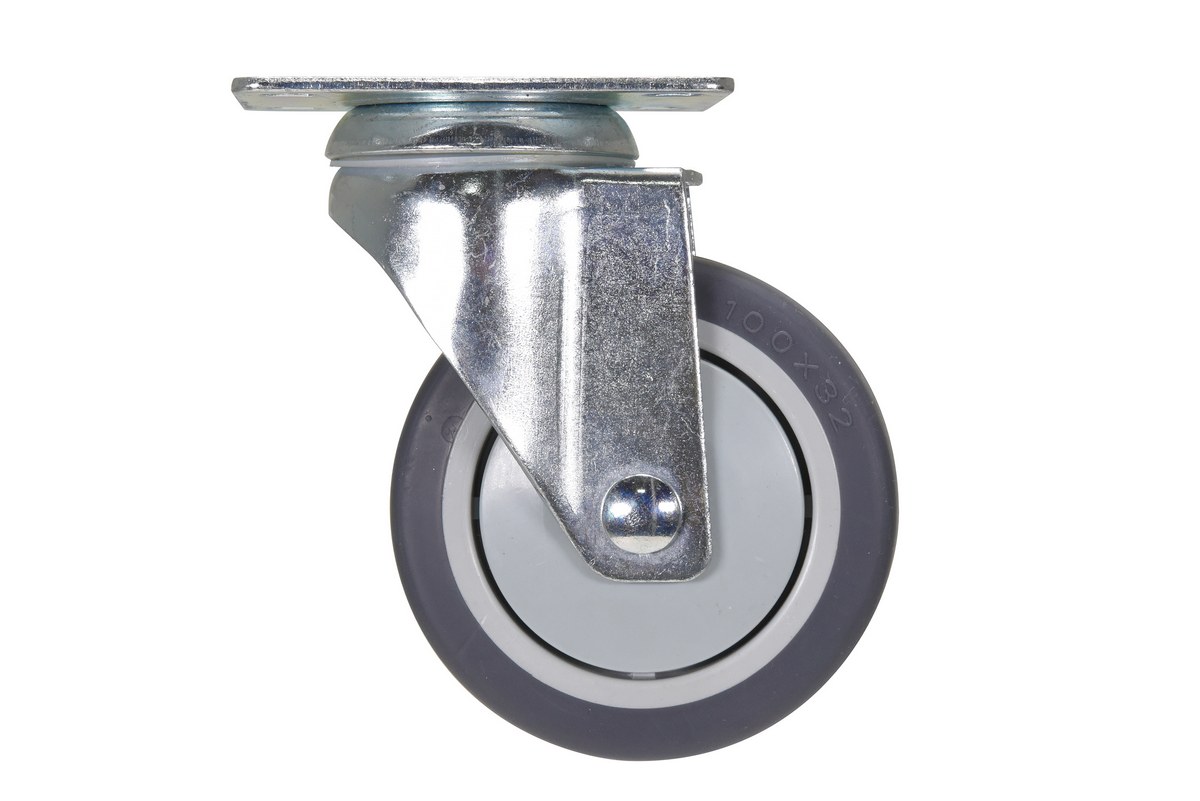

CST-B28-4X1TPR-S	1YEAR Limited Warranty	4 x 1-1/4	SWIVEL	220	5-1/4	2-5/8 x 3-3/4	3

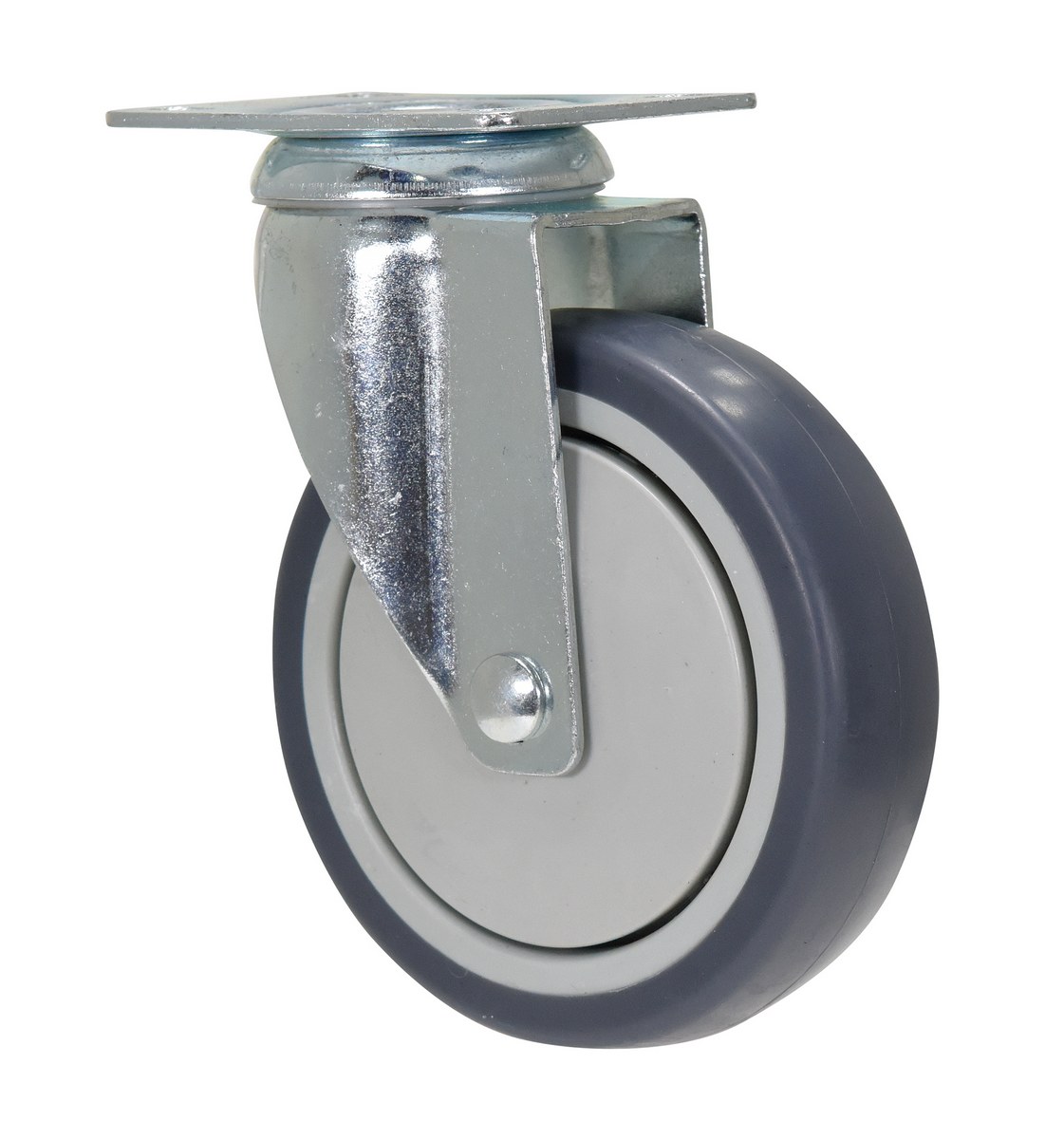

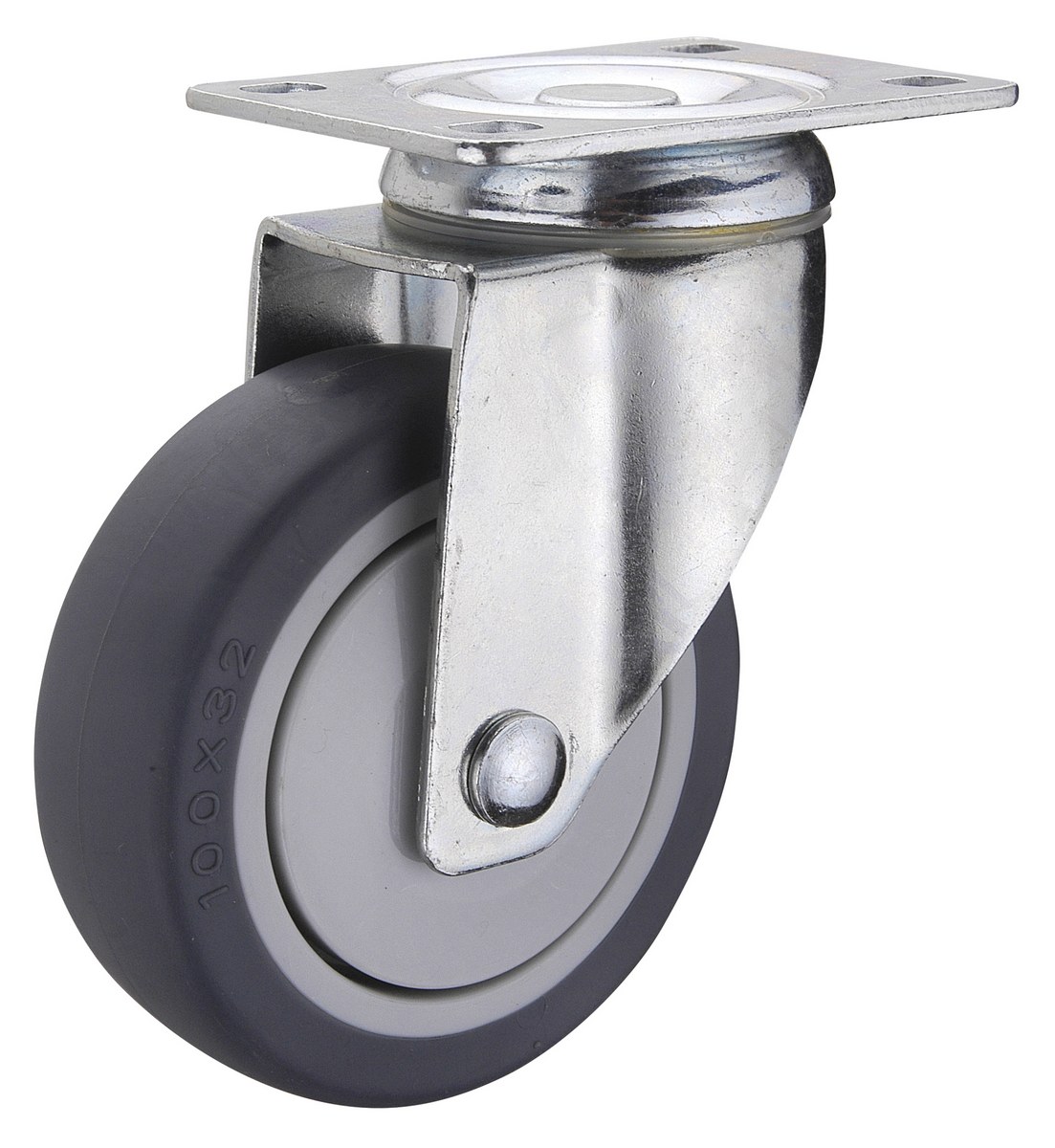

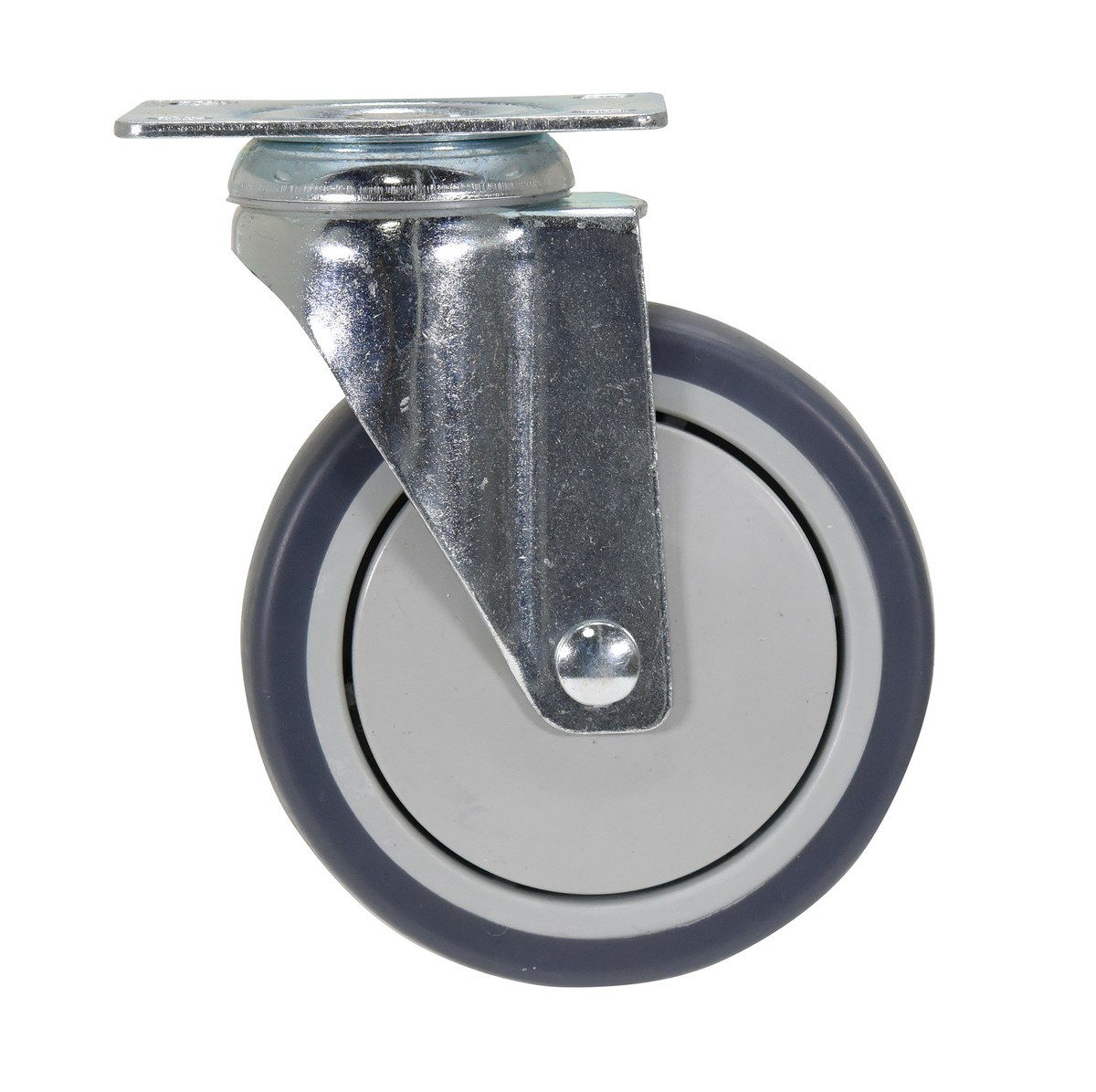

CST-B28-5X1TPR-S	1YEAR Limited Warranty	5 x 1-1/4	SWIVEL	308	6-1/4	2-16/25 x 3-3/4	3

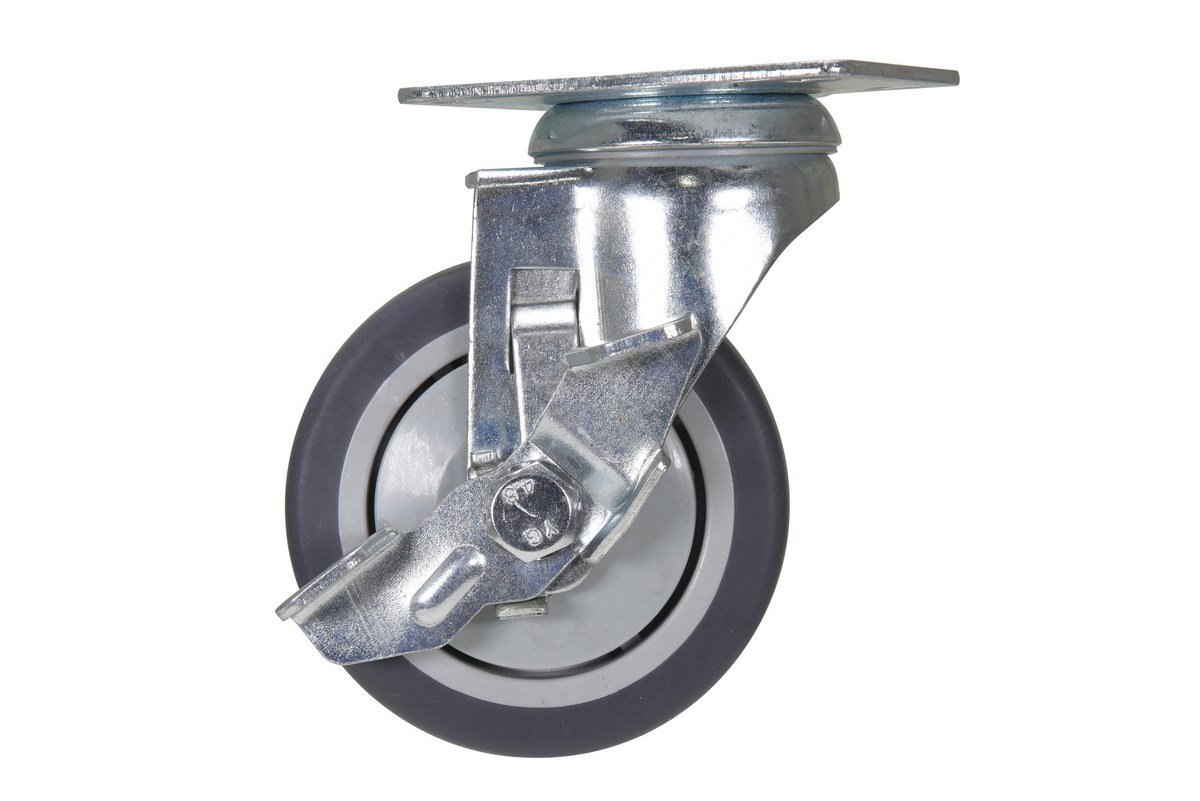

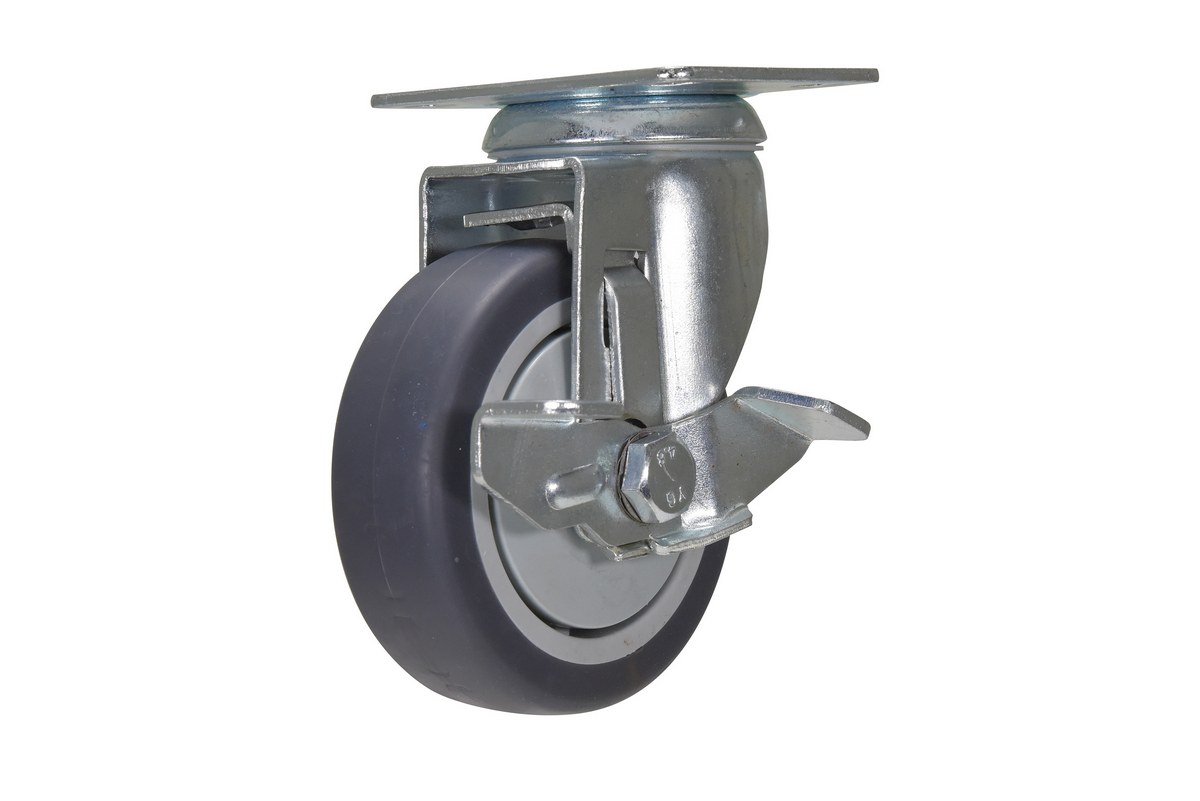

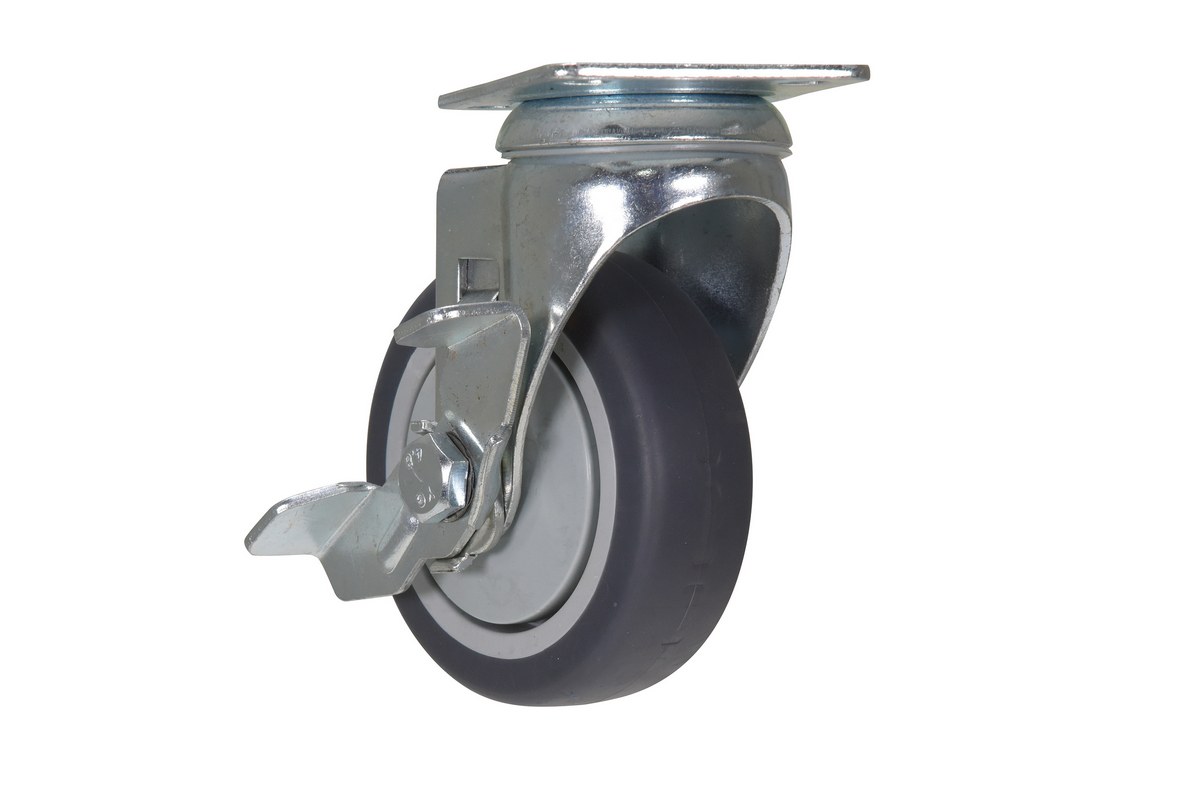

CST-B28-4X1TPR-SWB	1YEAR Limited Warranty	4 x 1-1/4	SWIVEL W/BRAKE	220	5-1/4	2-5/8 x 3-3/4	4

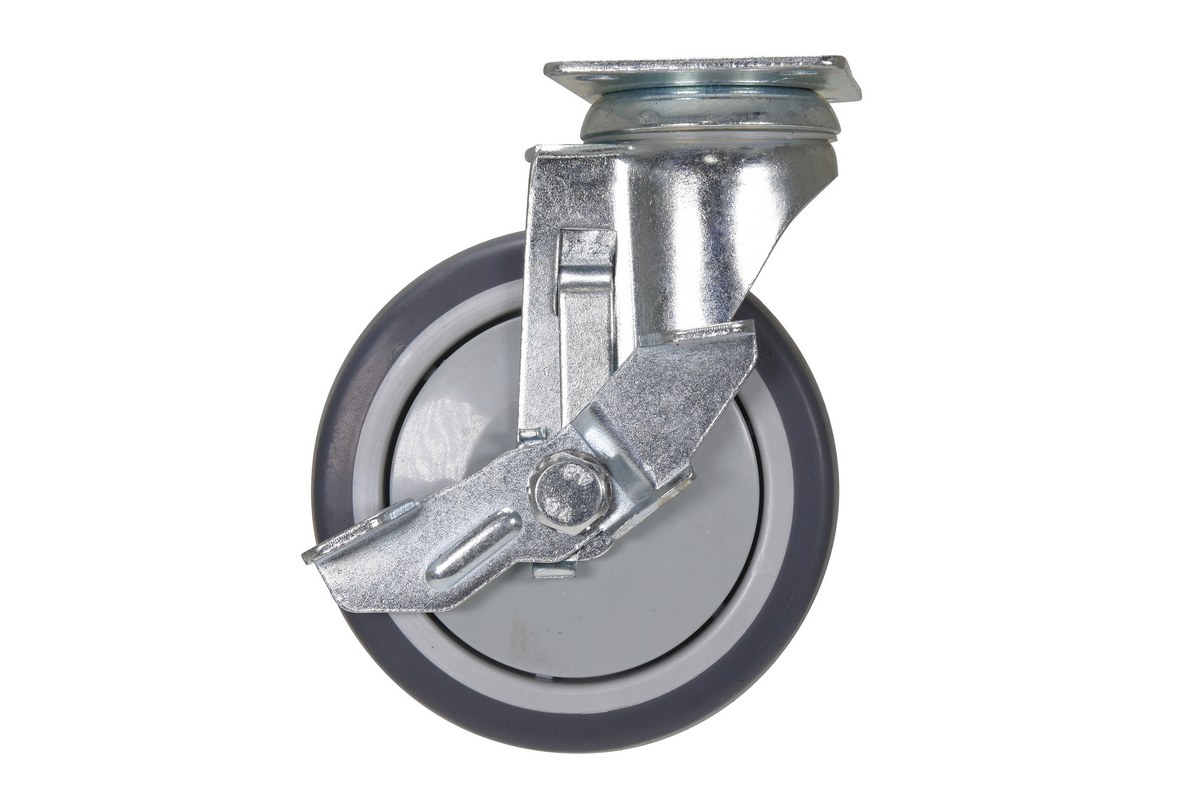

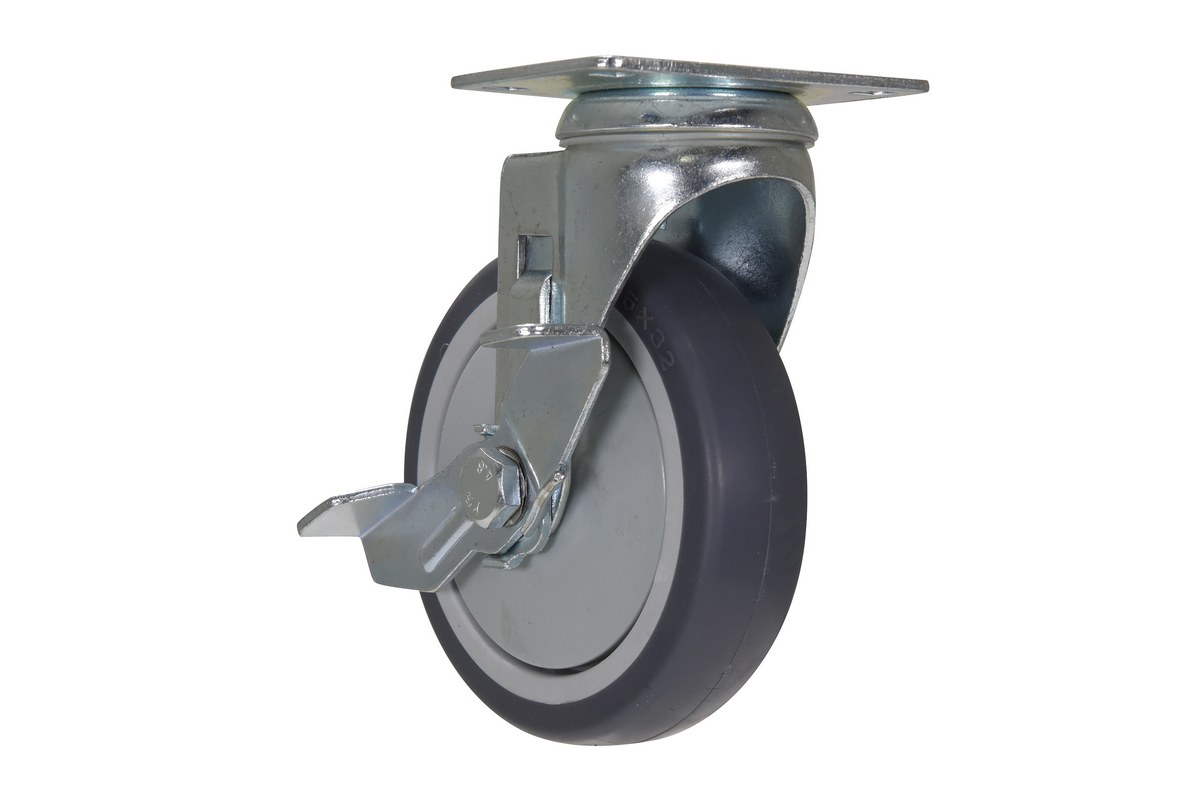

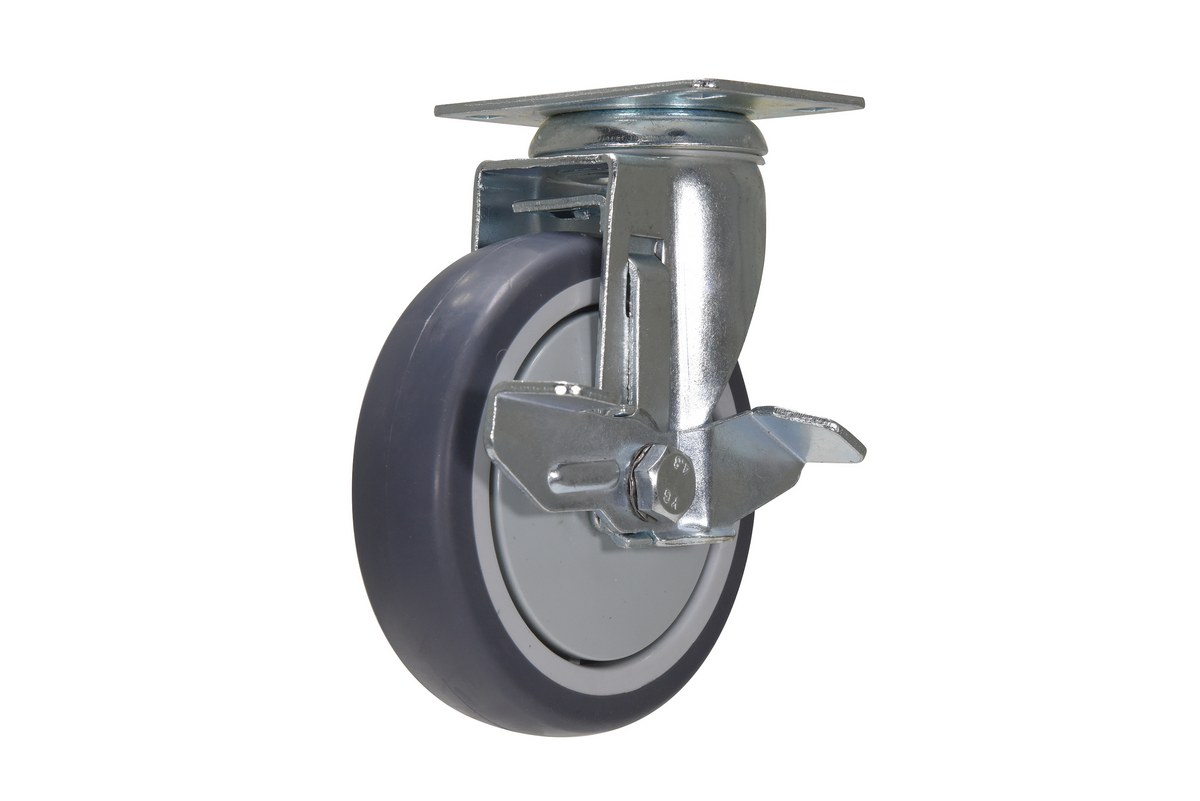

CST-B28-5X1TPR-SWB	1YEAR Limited Warranty	5 x 1-1/4	SWIVEL W/BRAKE	308	6-1/4	2-16/25 x 3-3/4	4
