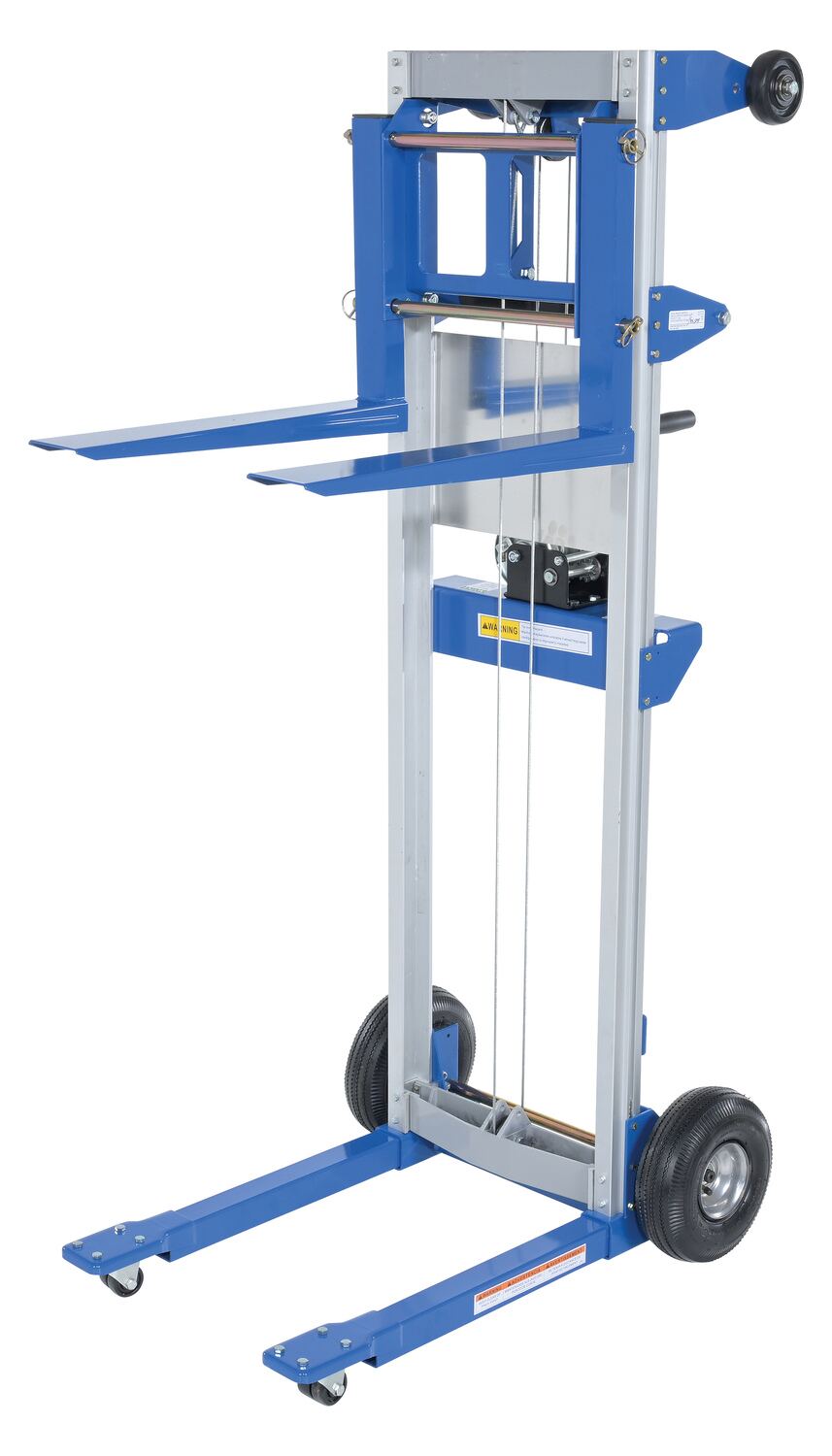

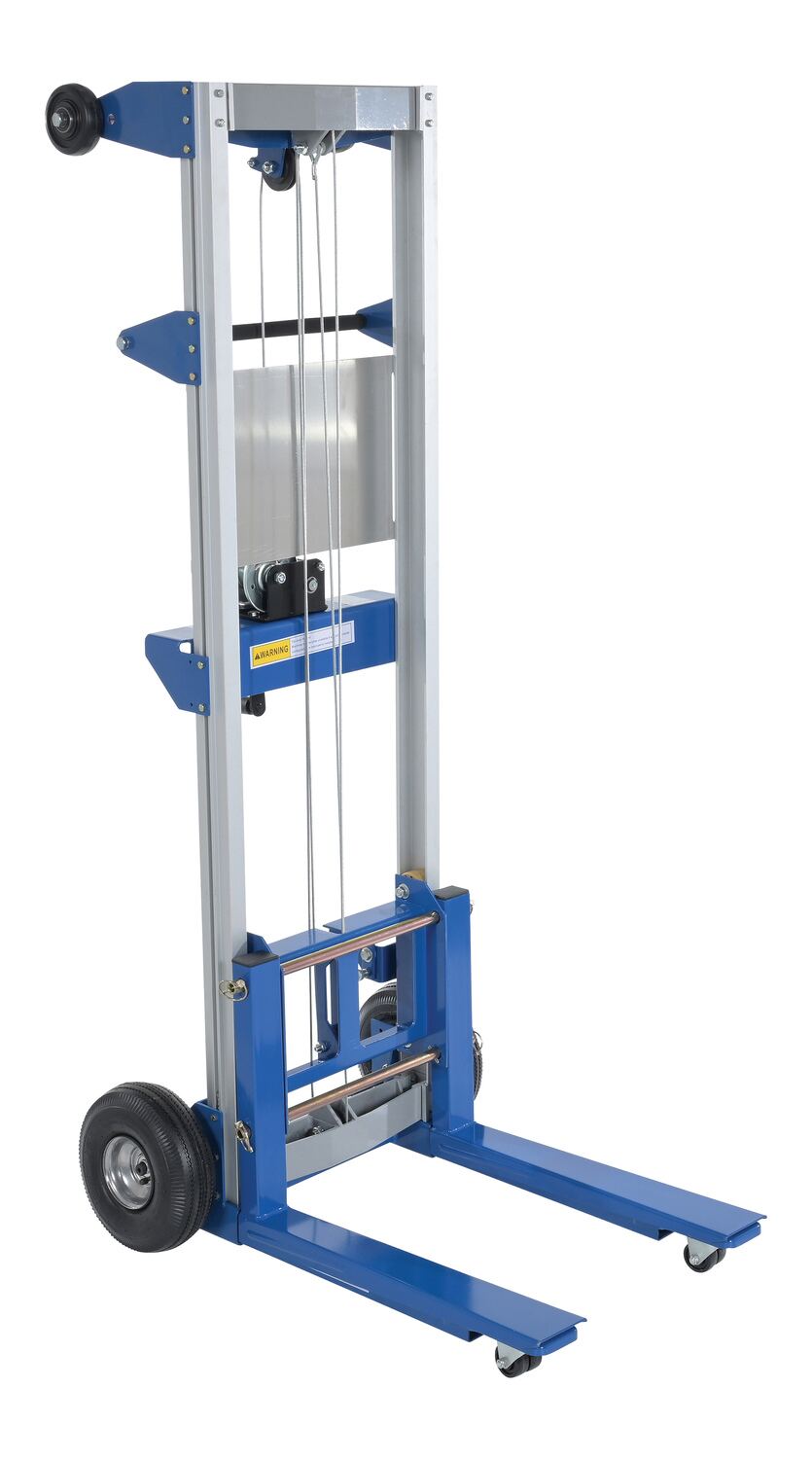

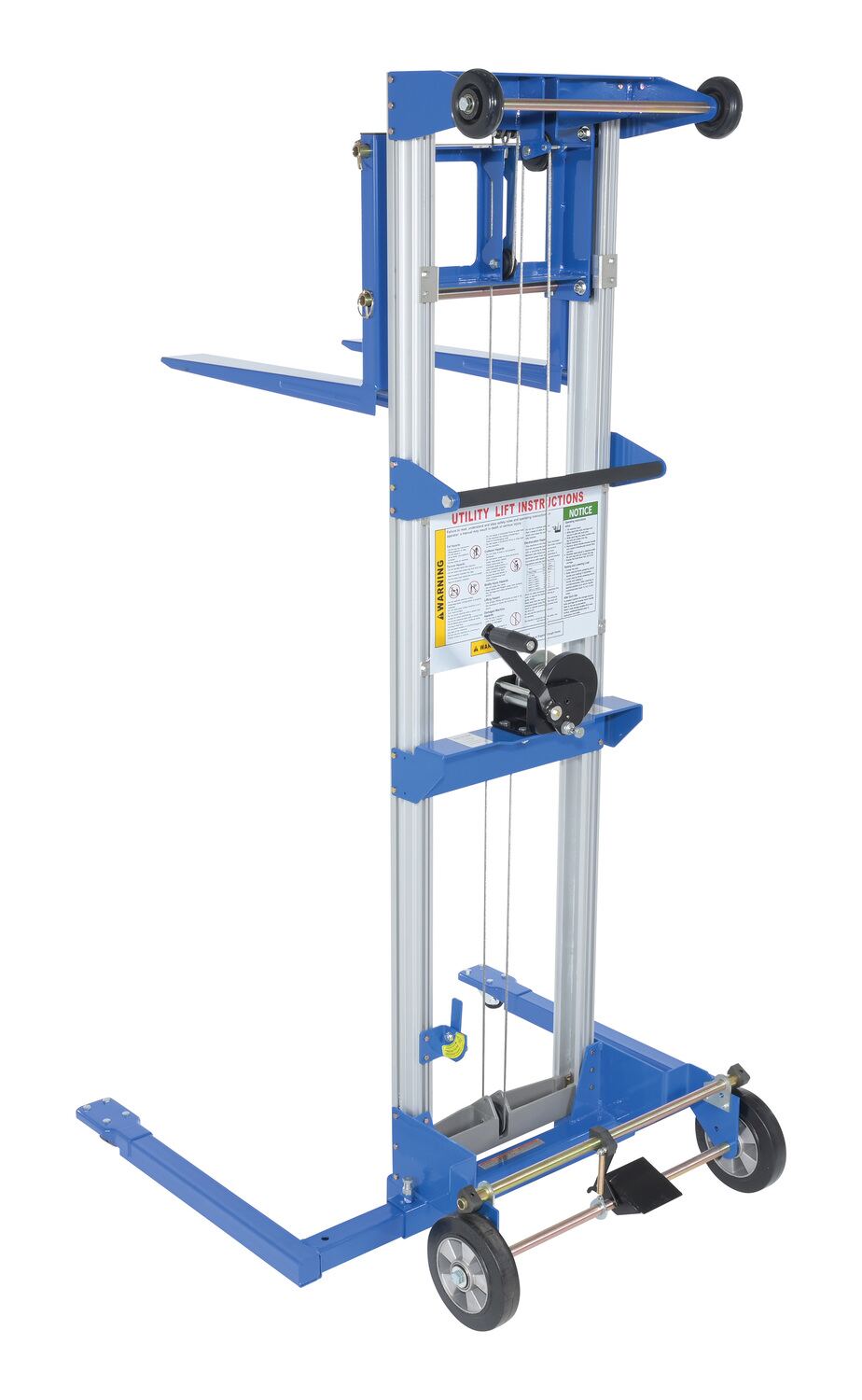

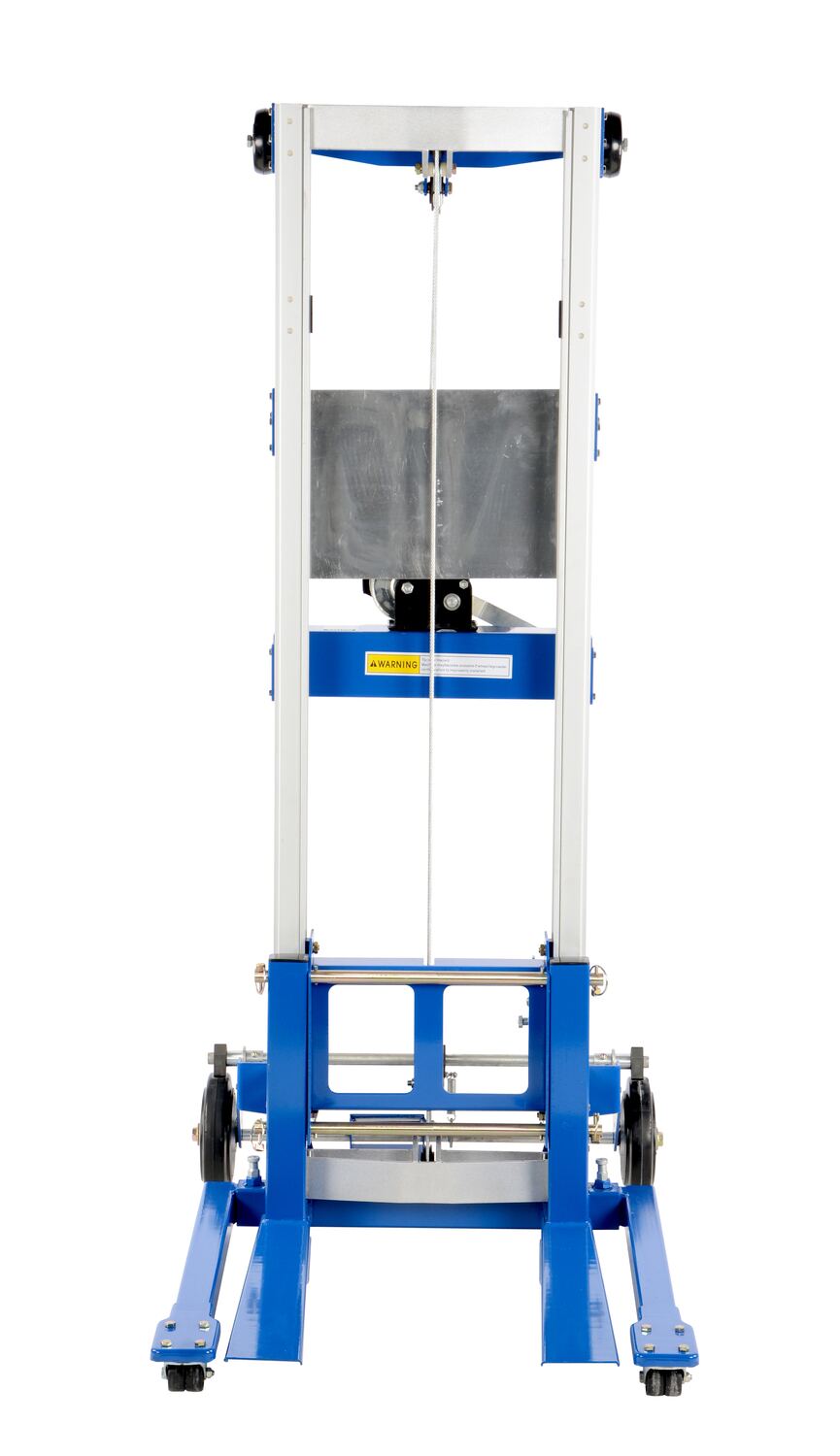

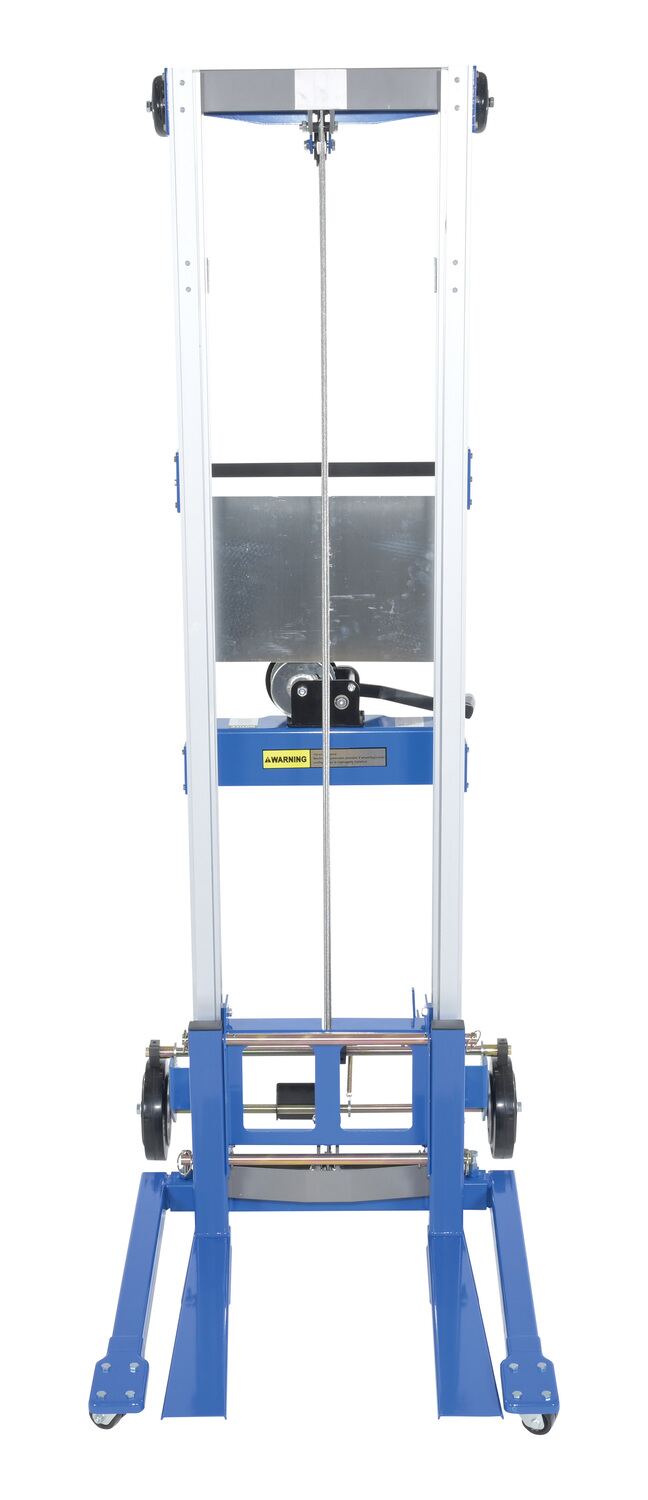

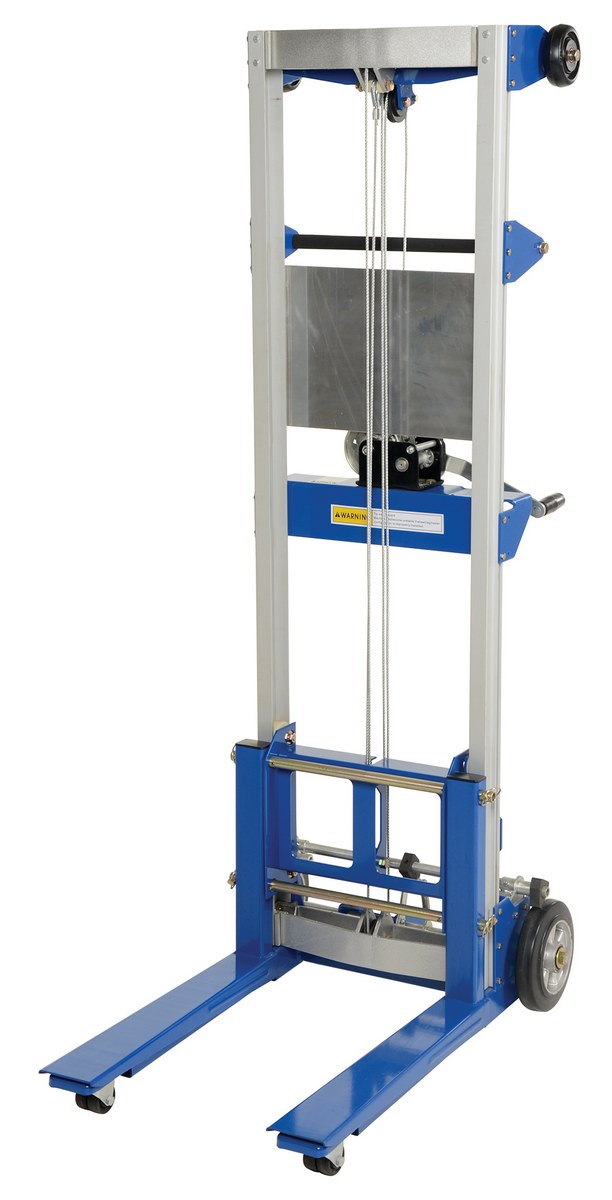

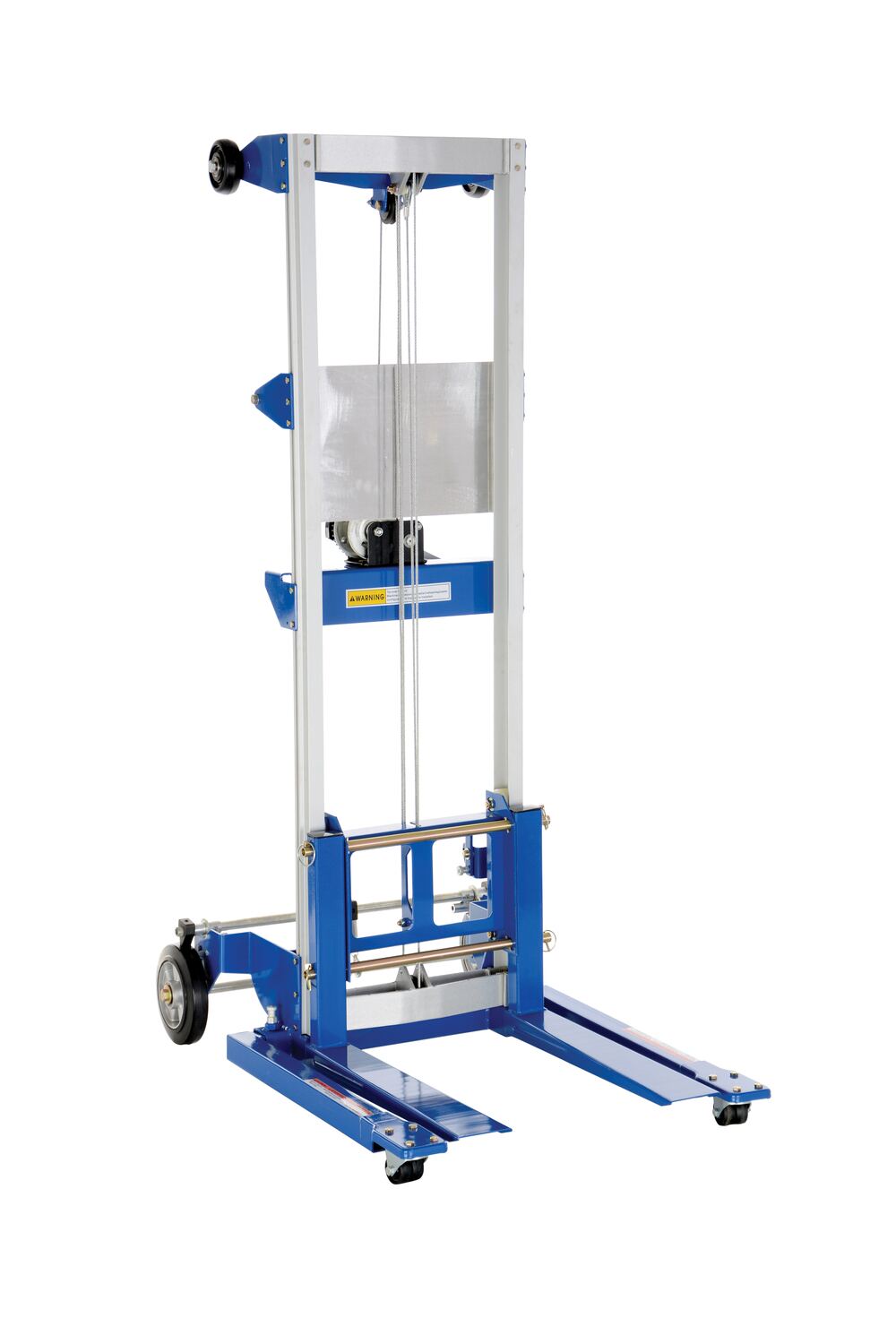

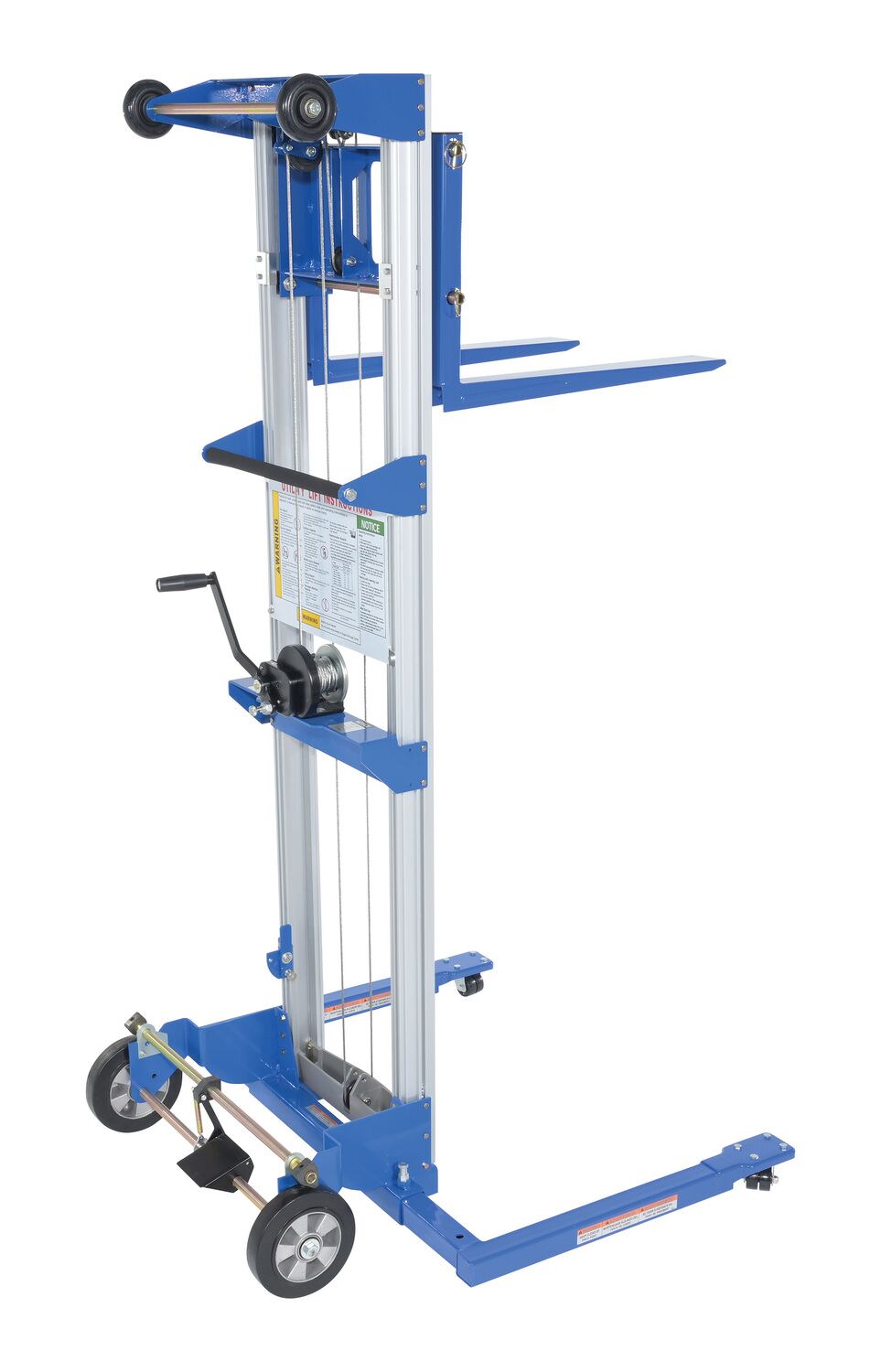

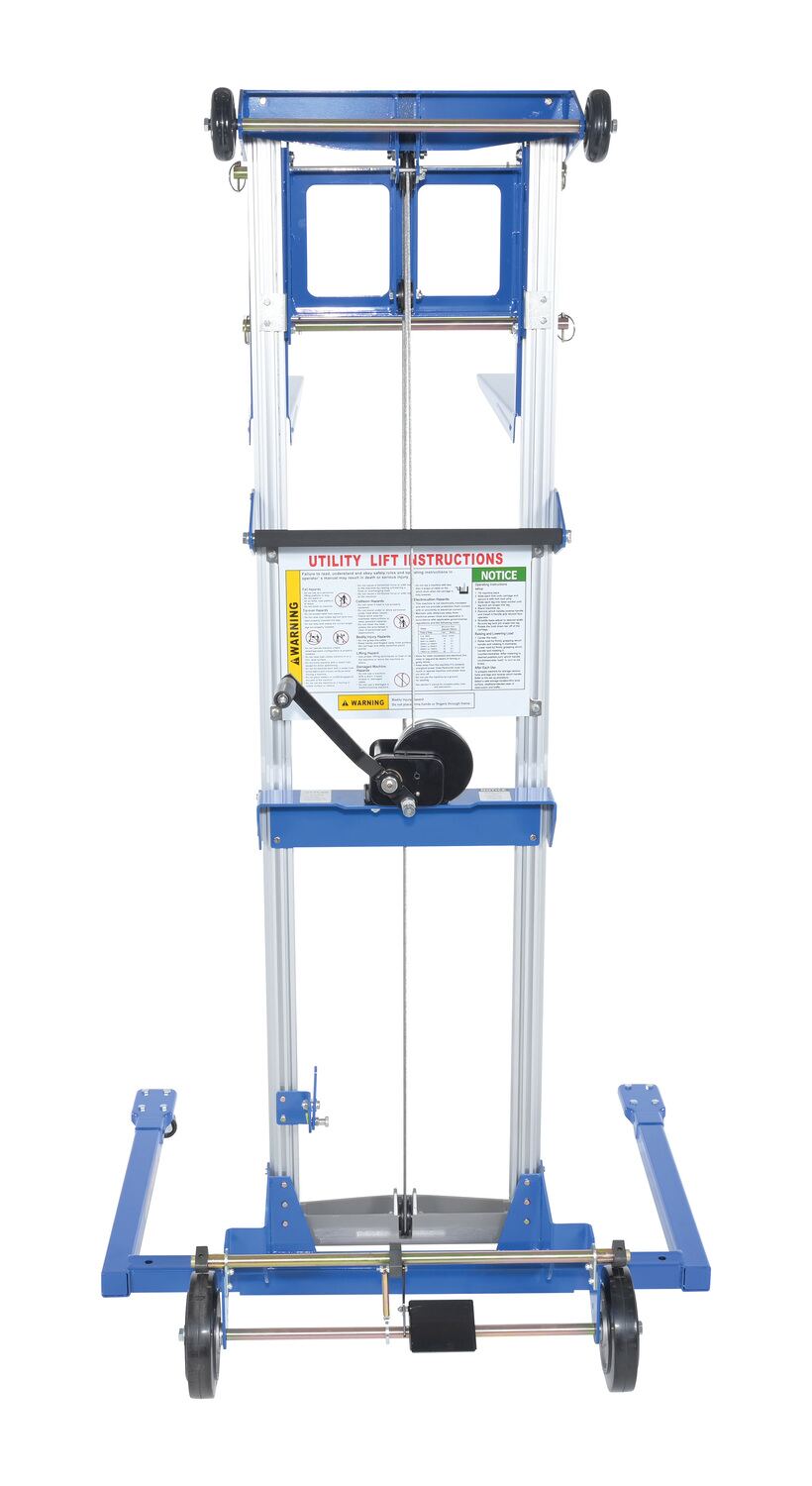

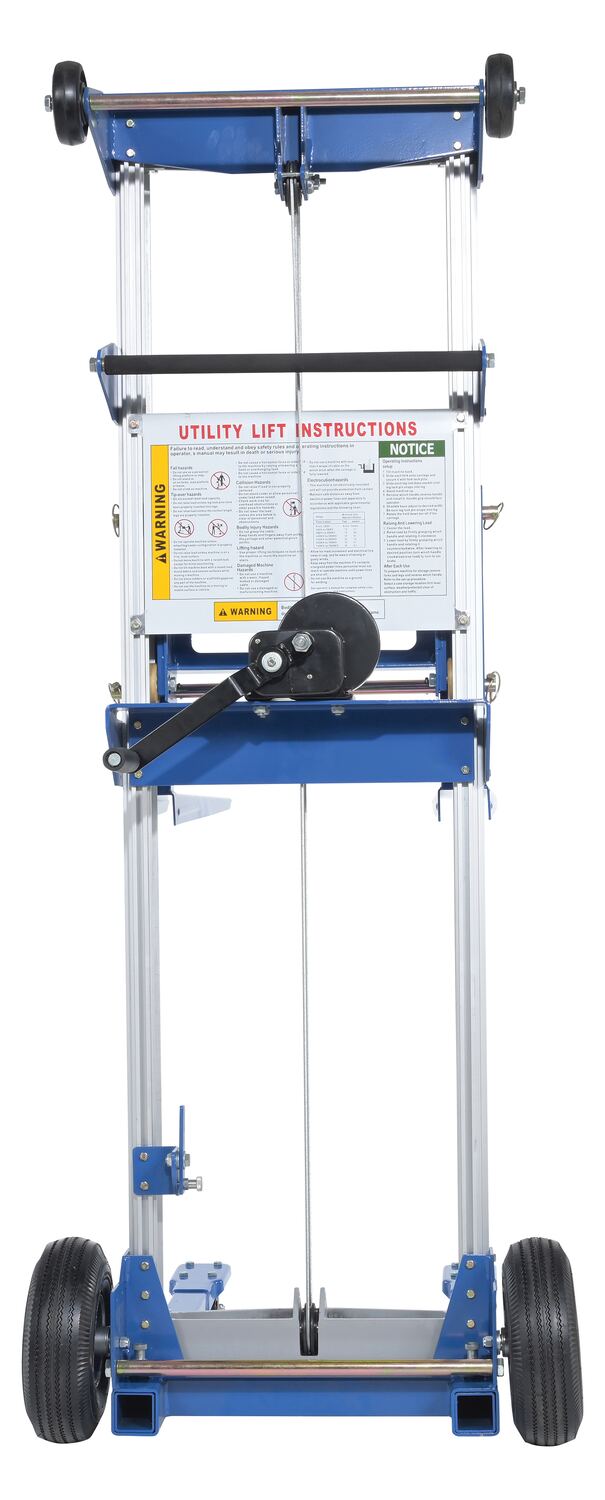

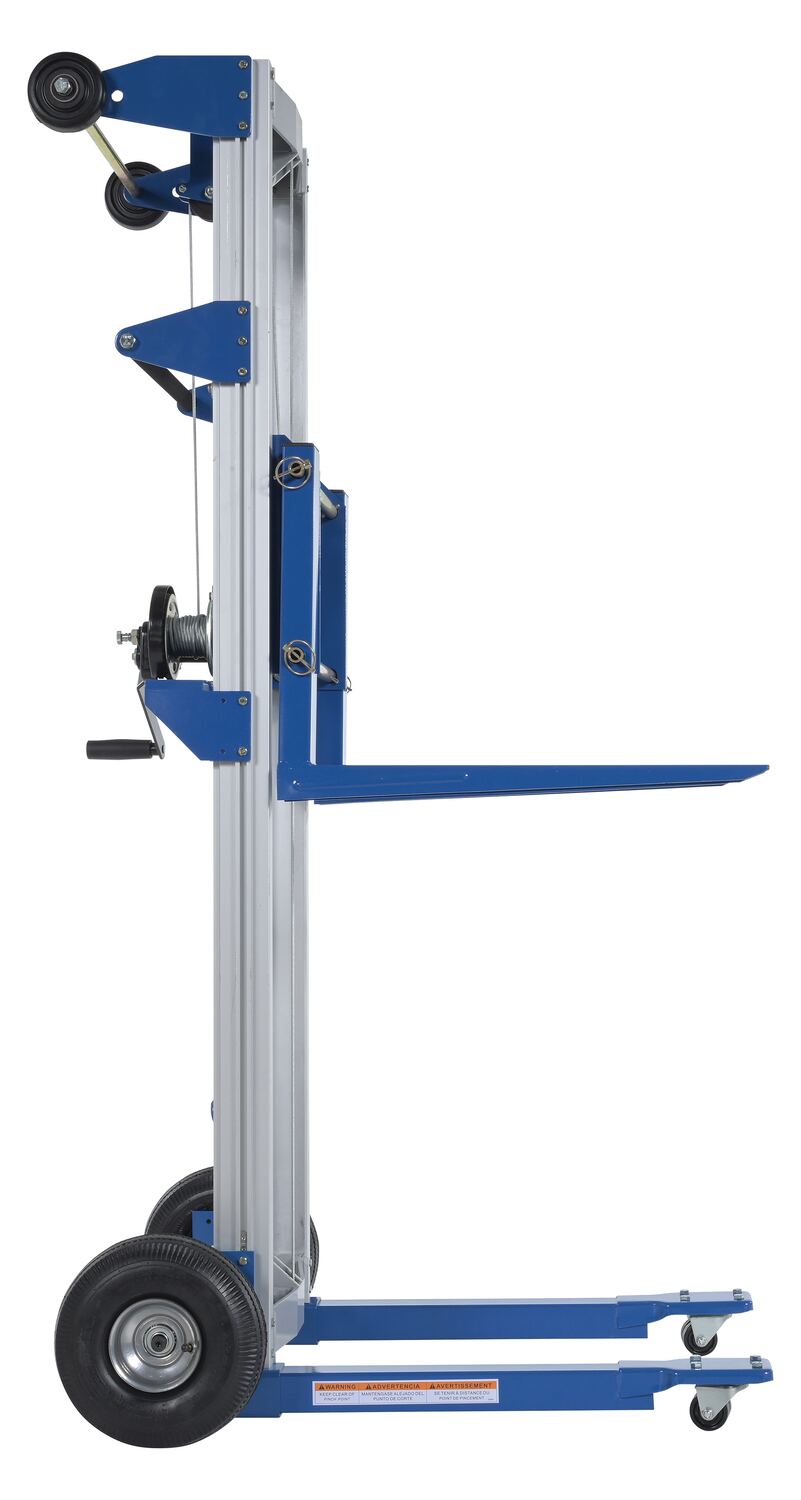

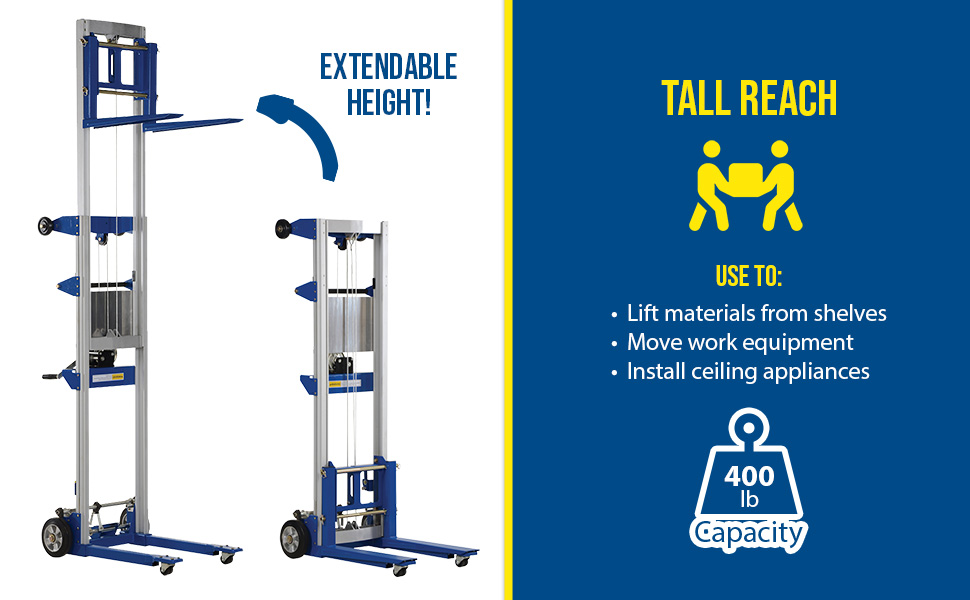

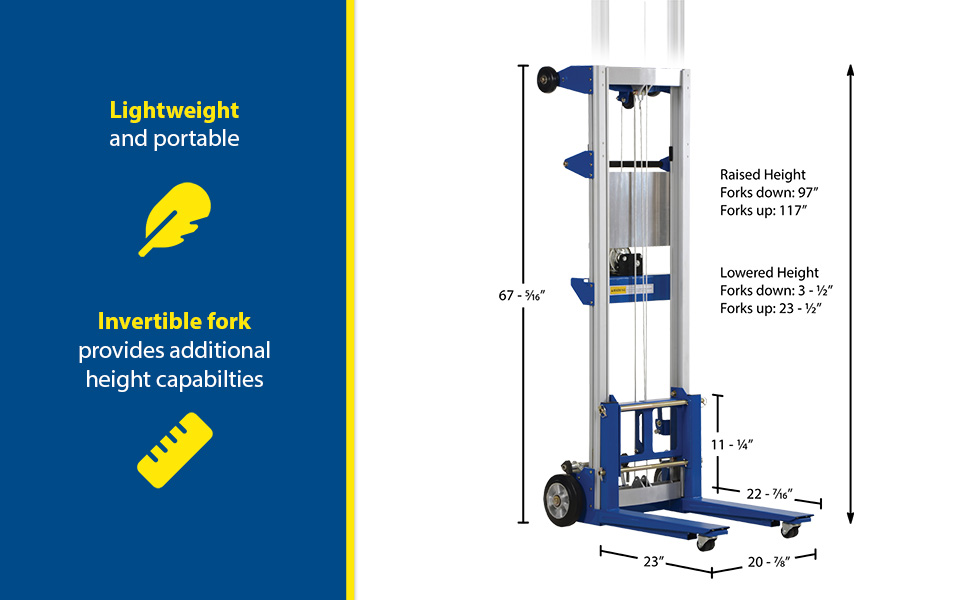

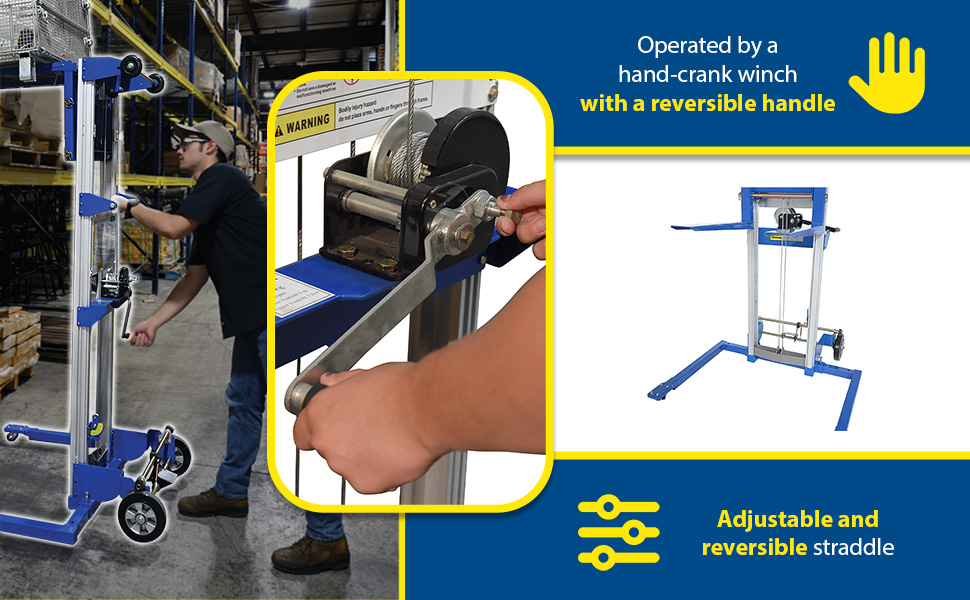

Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.

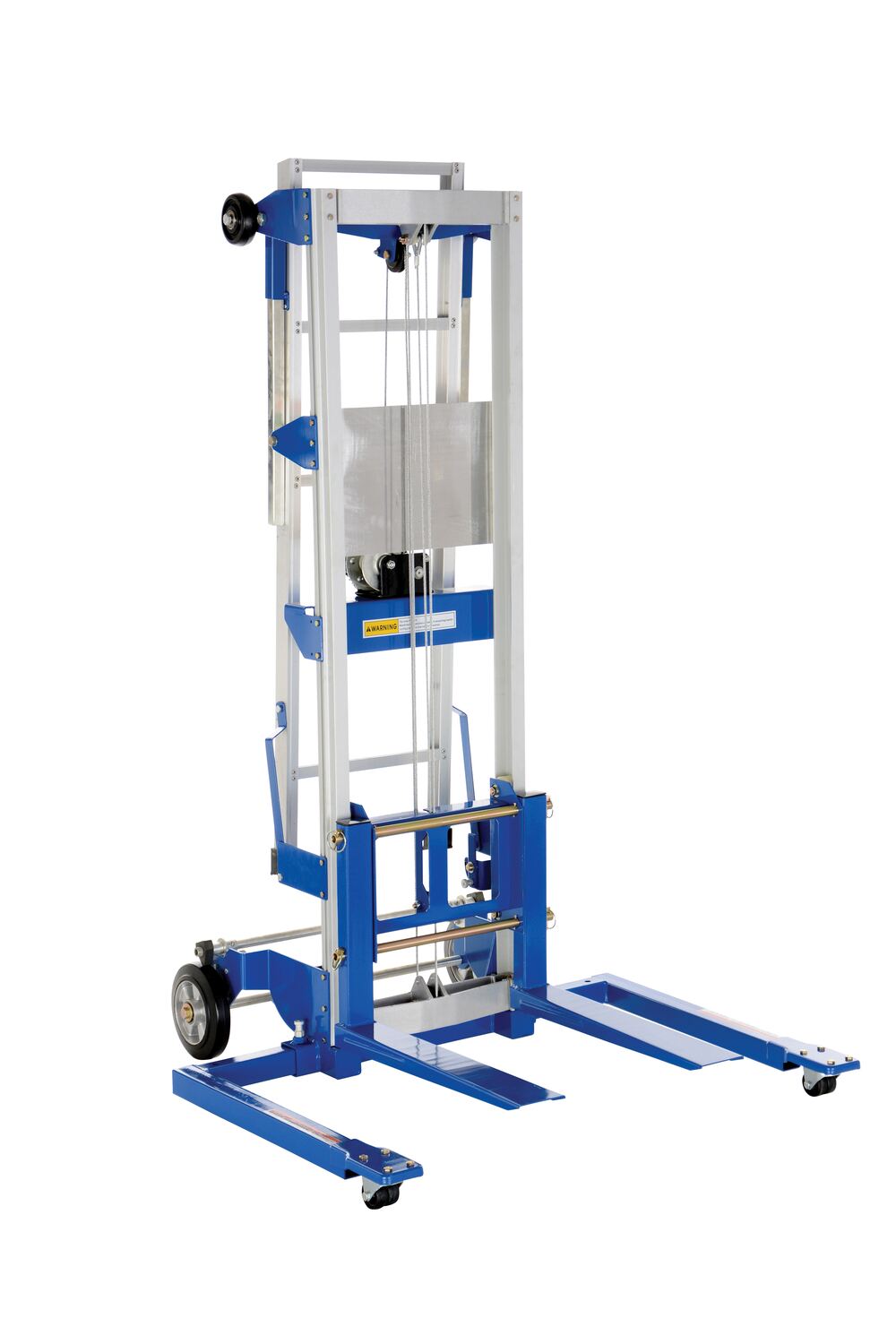

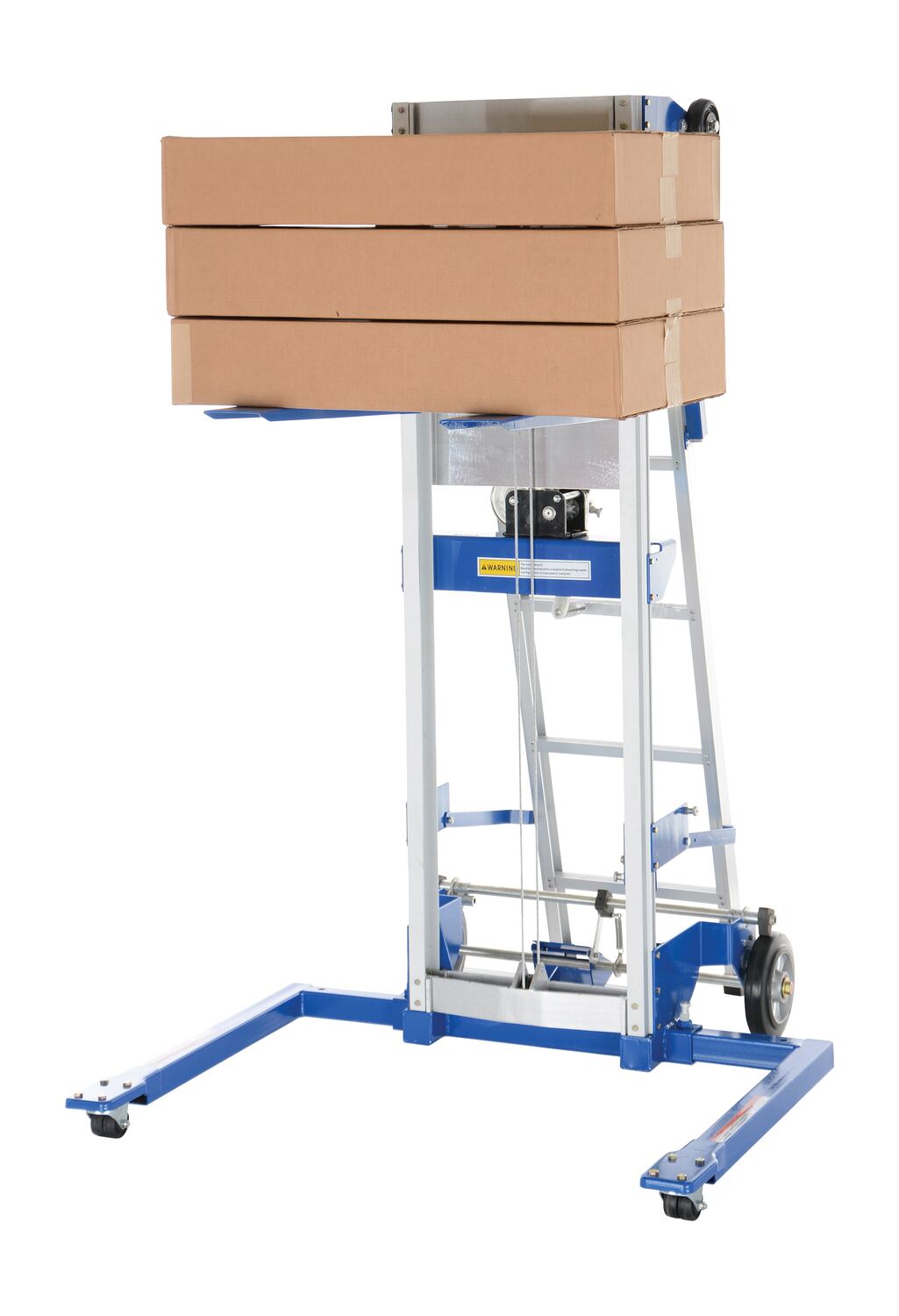

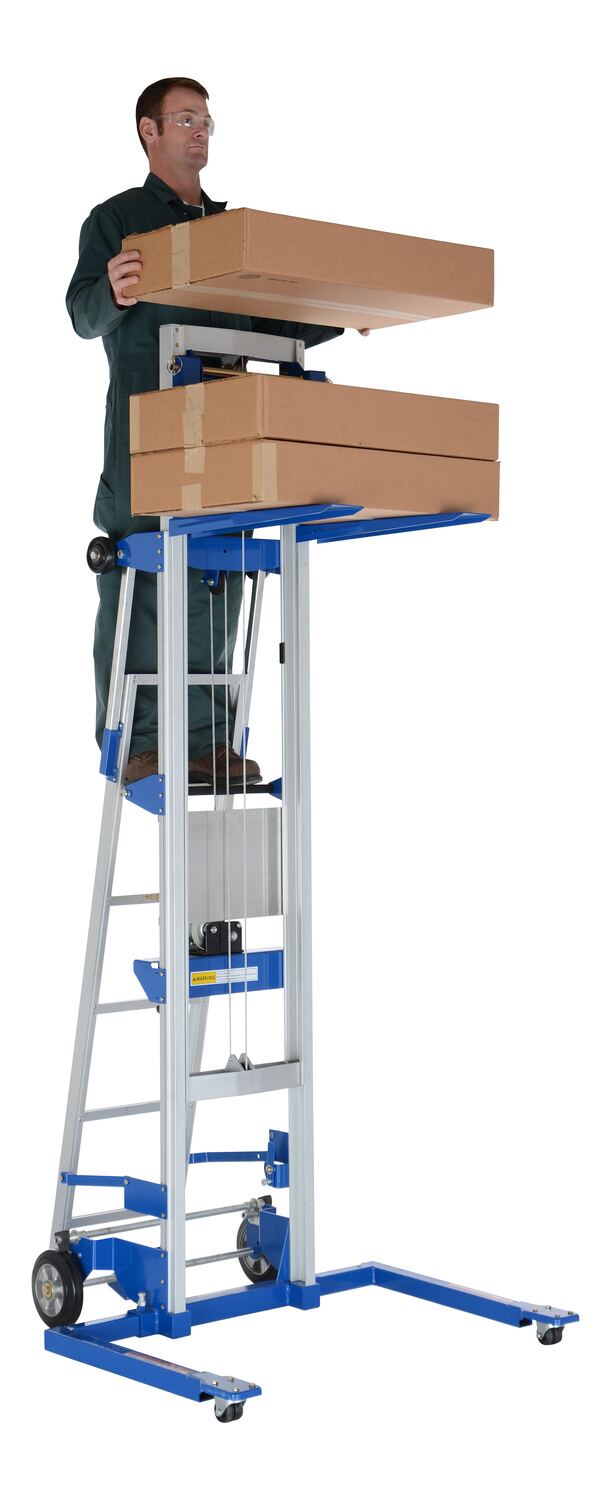

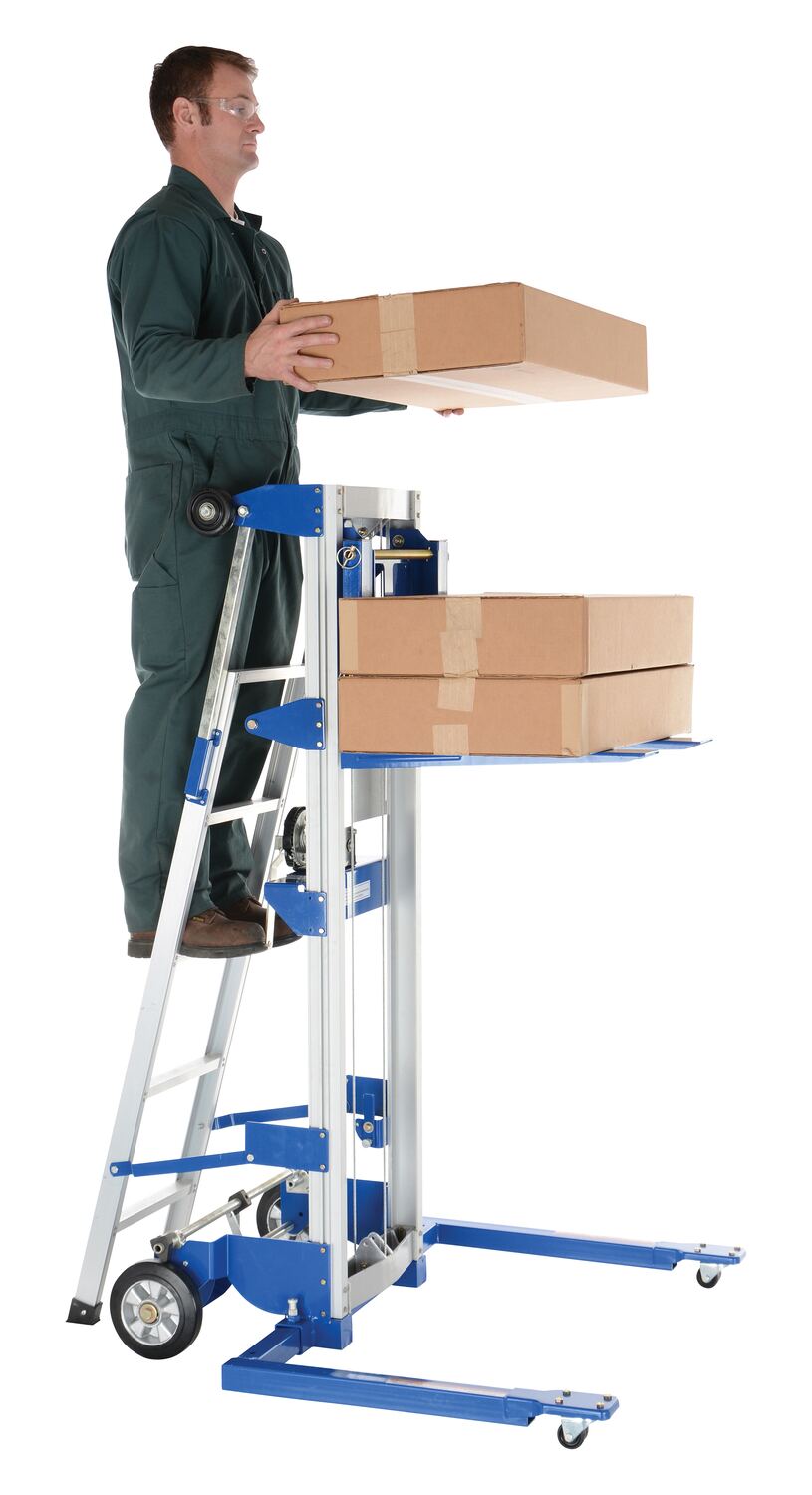

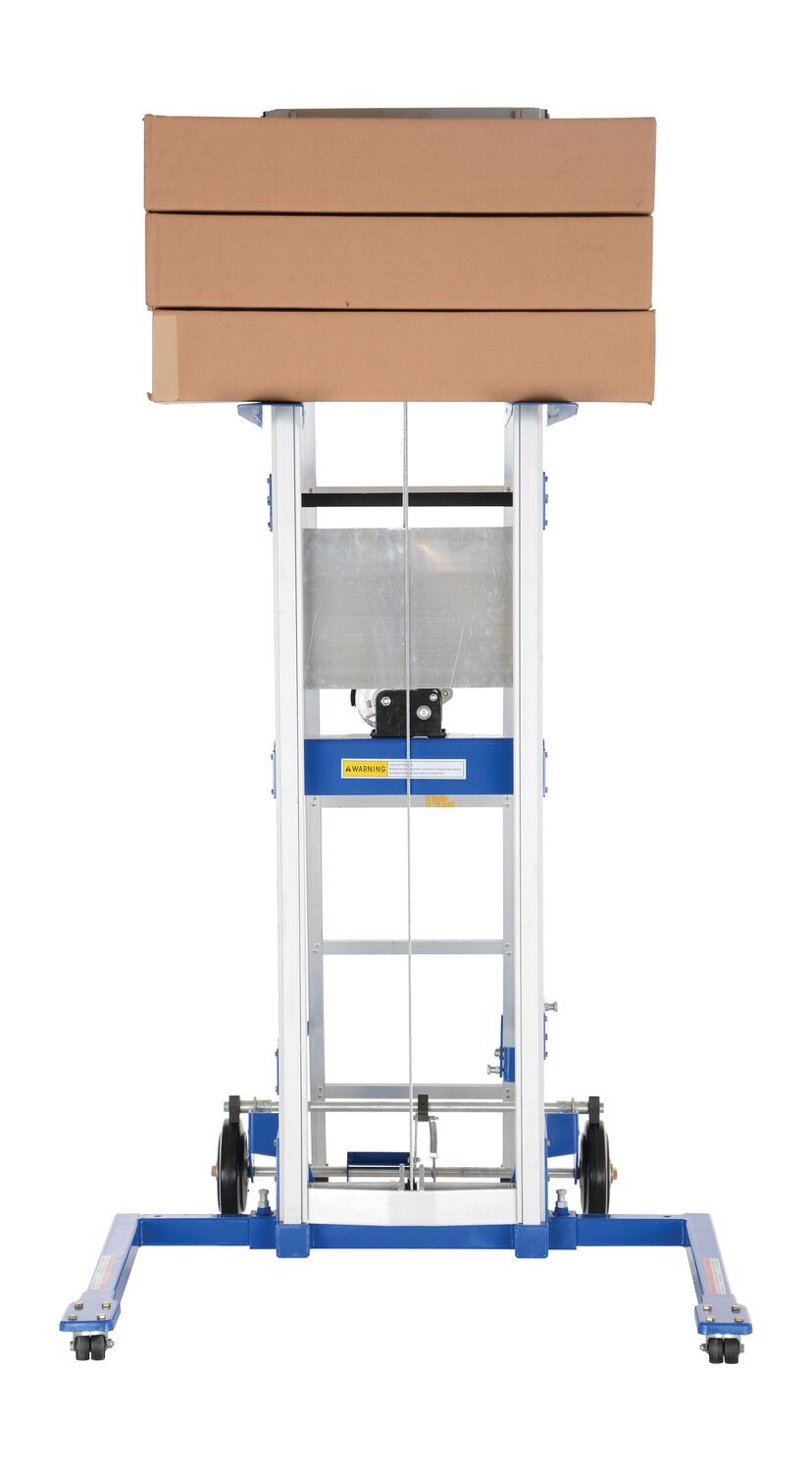

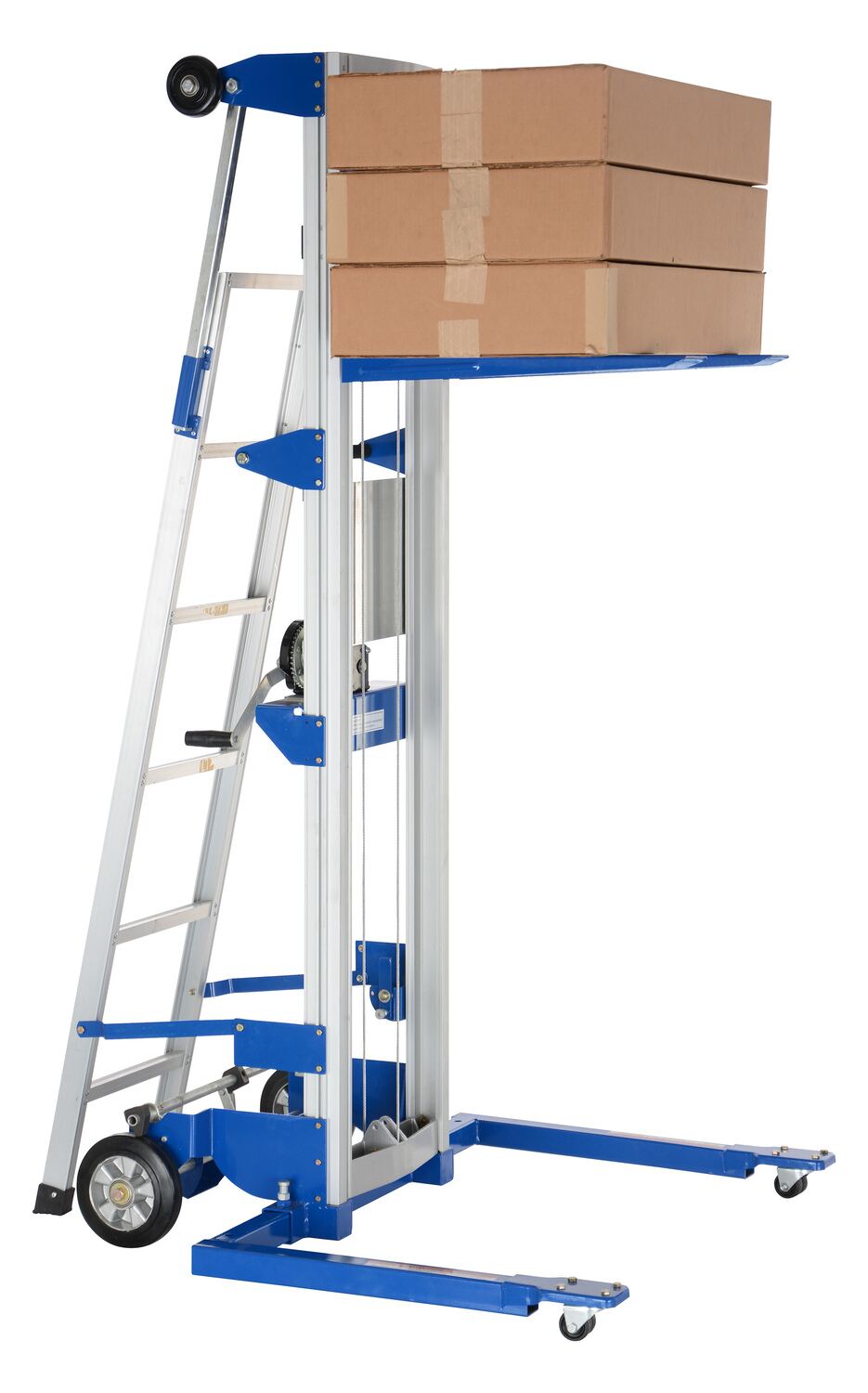

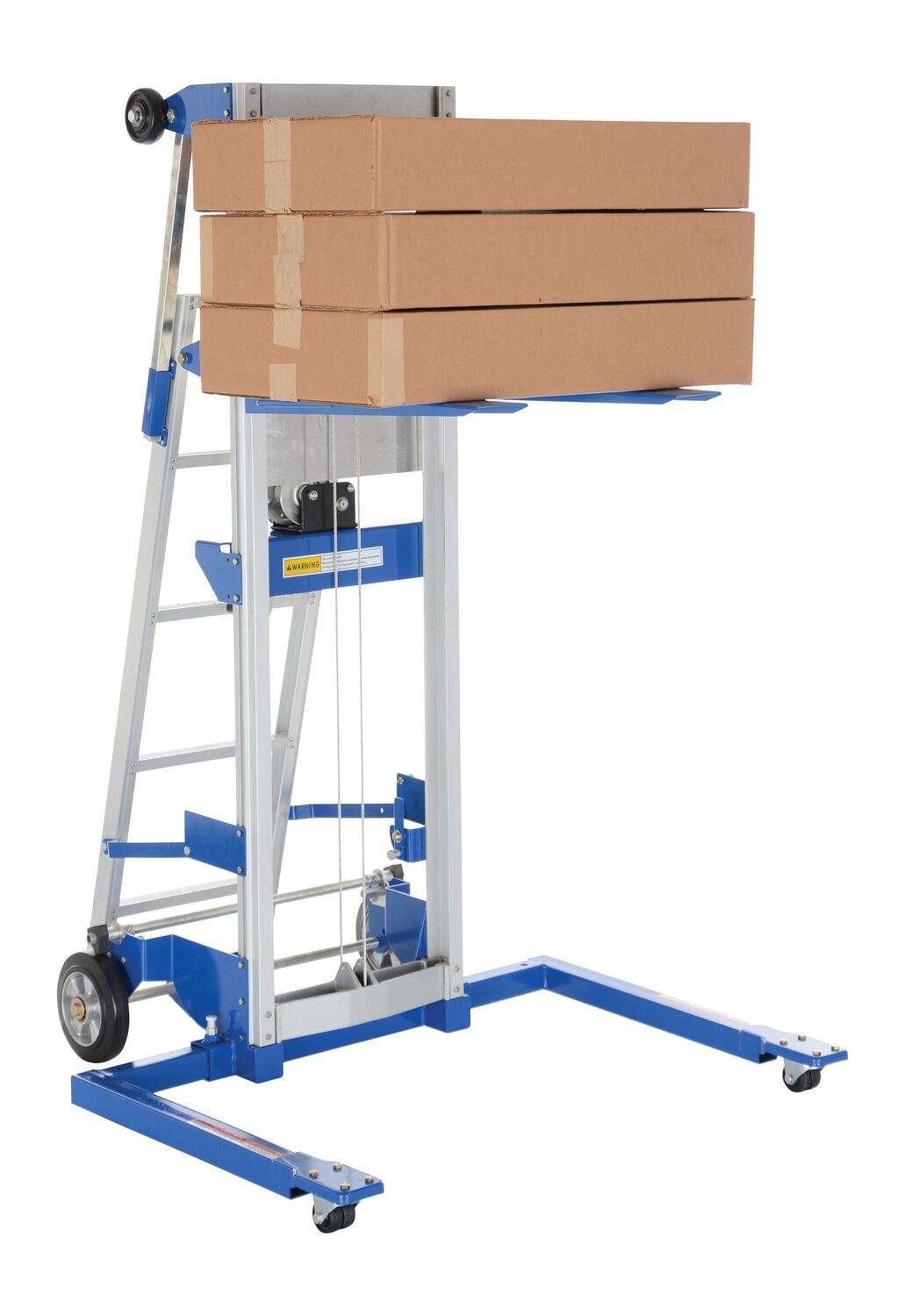

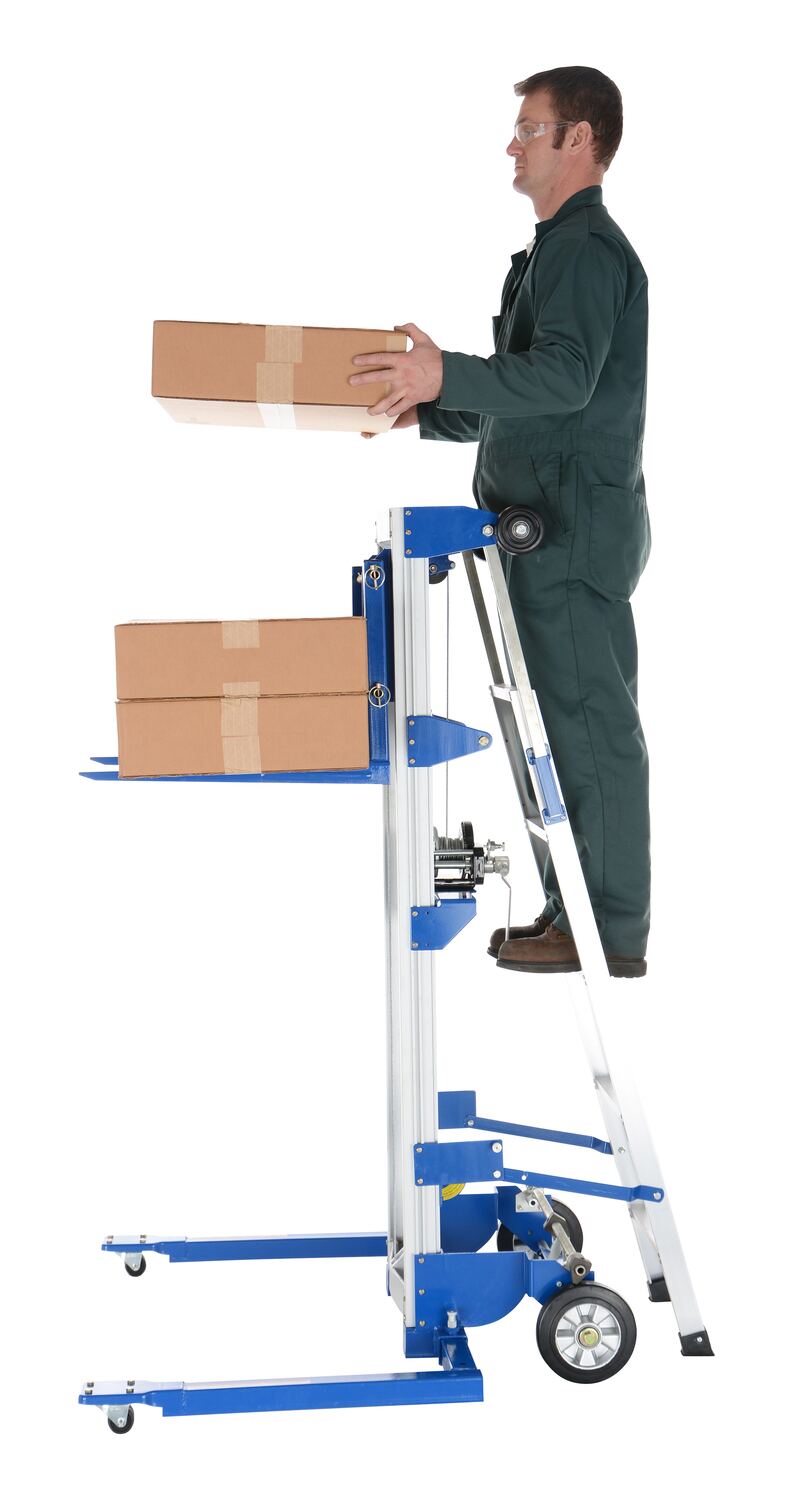

Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.

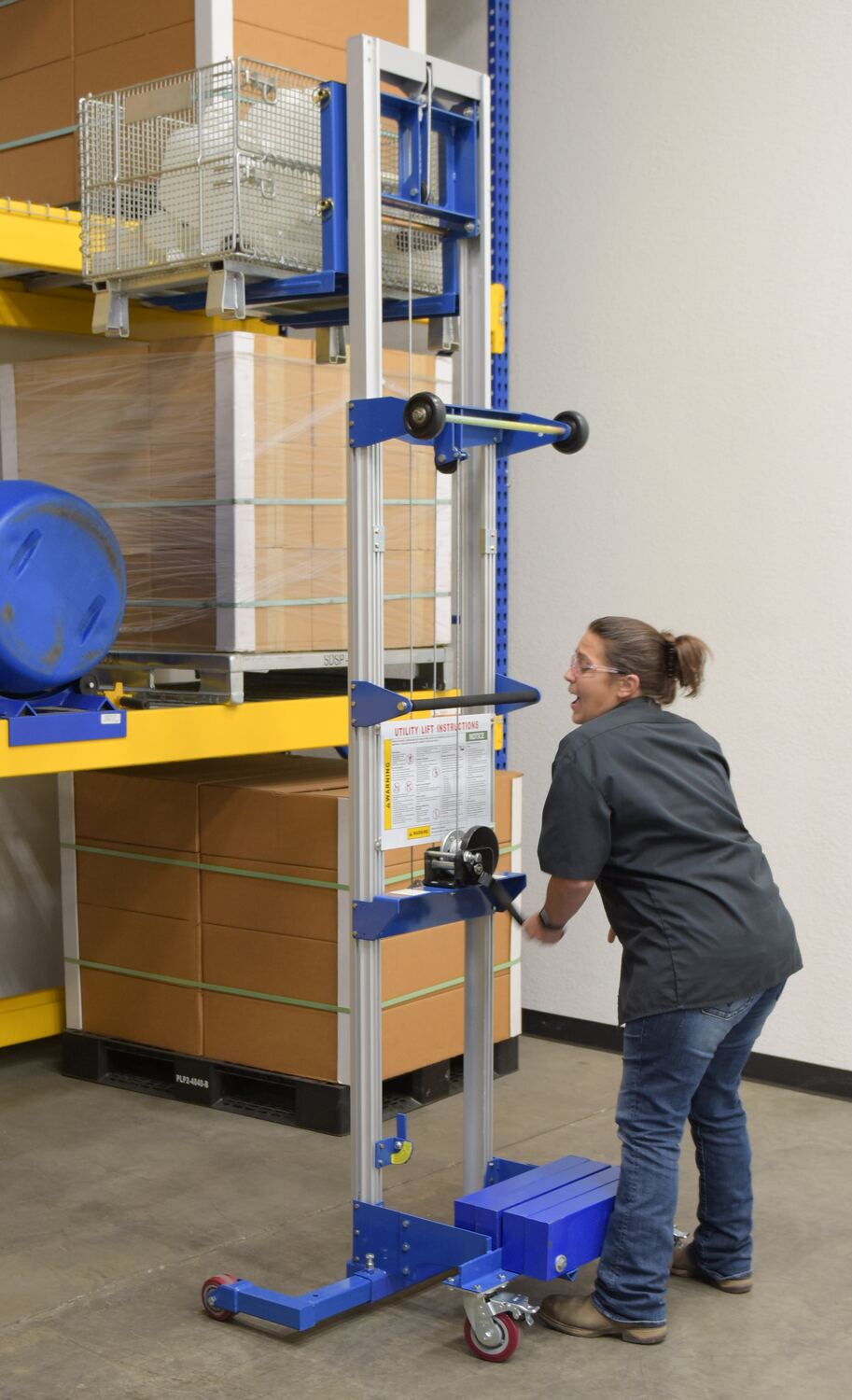

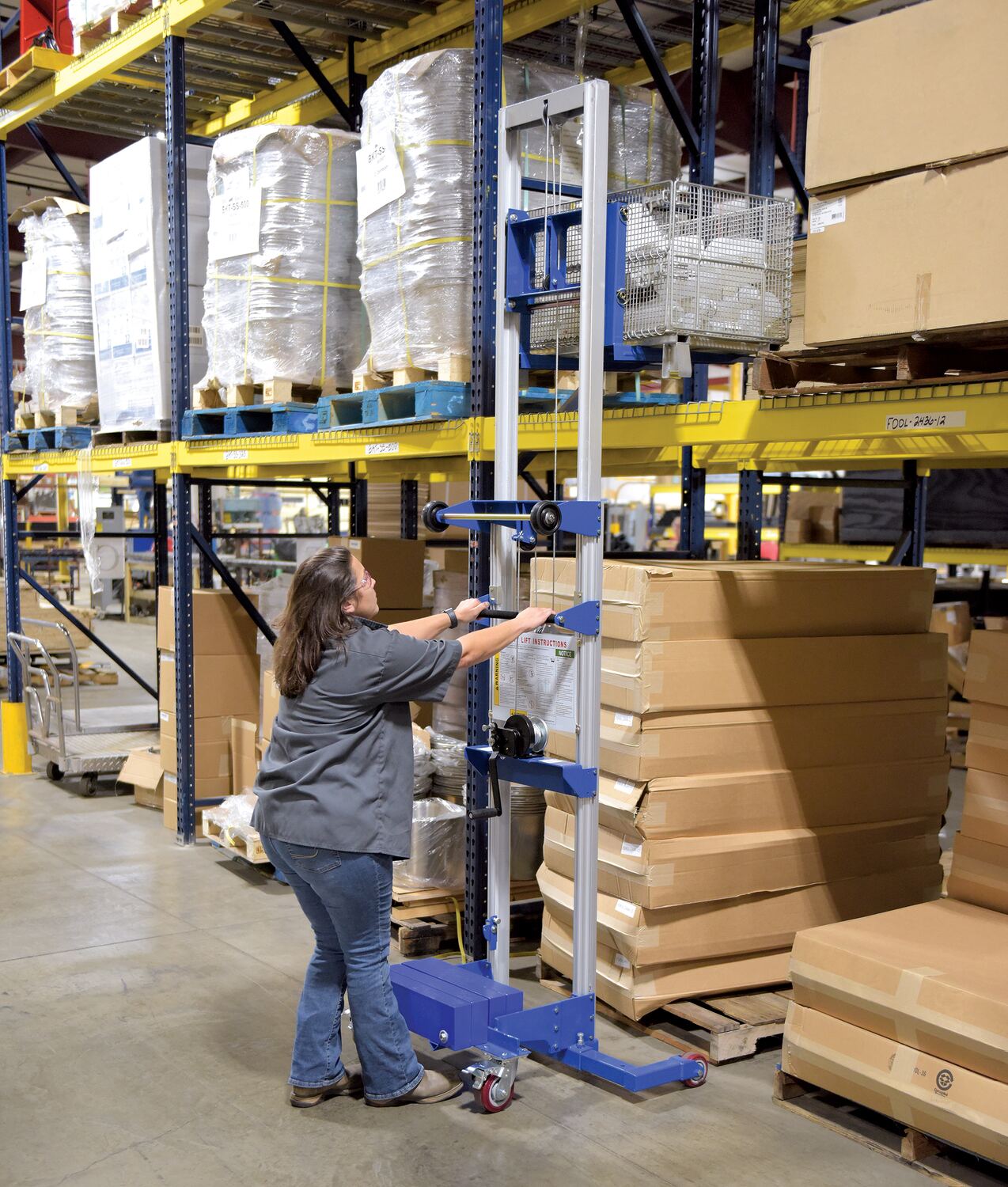

Lightweight portable lifts are great for hundreds of applications

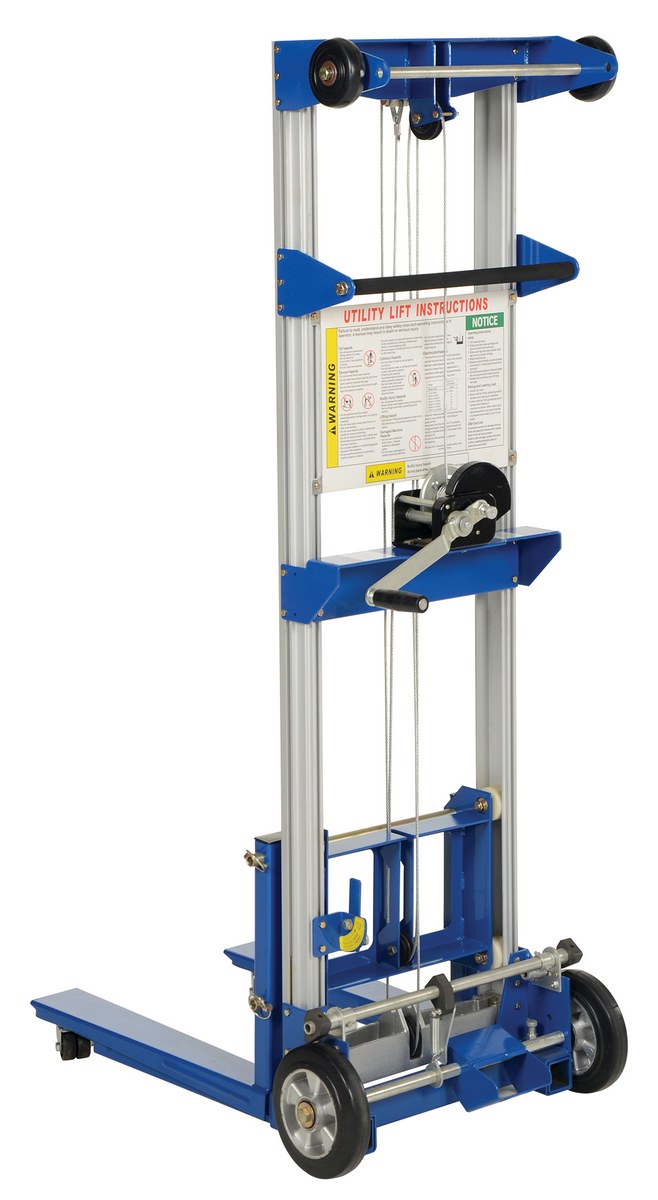

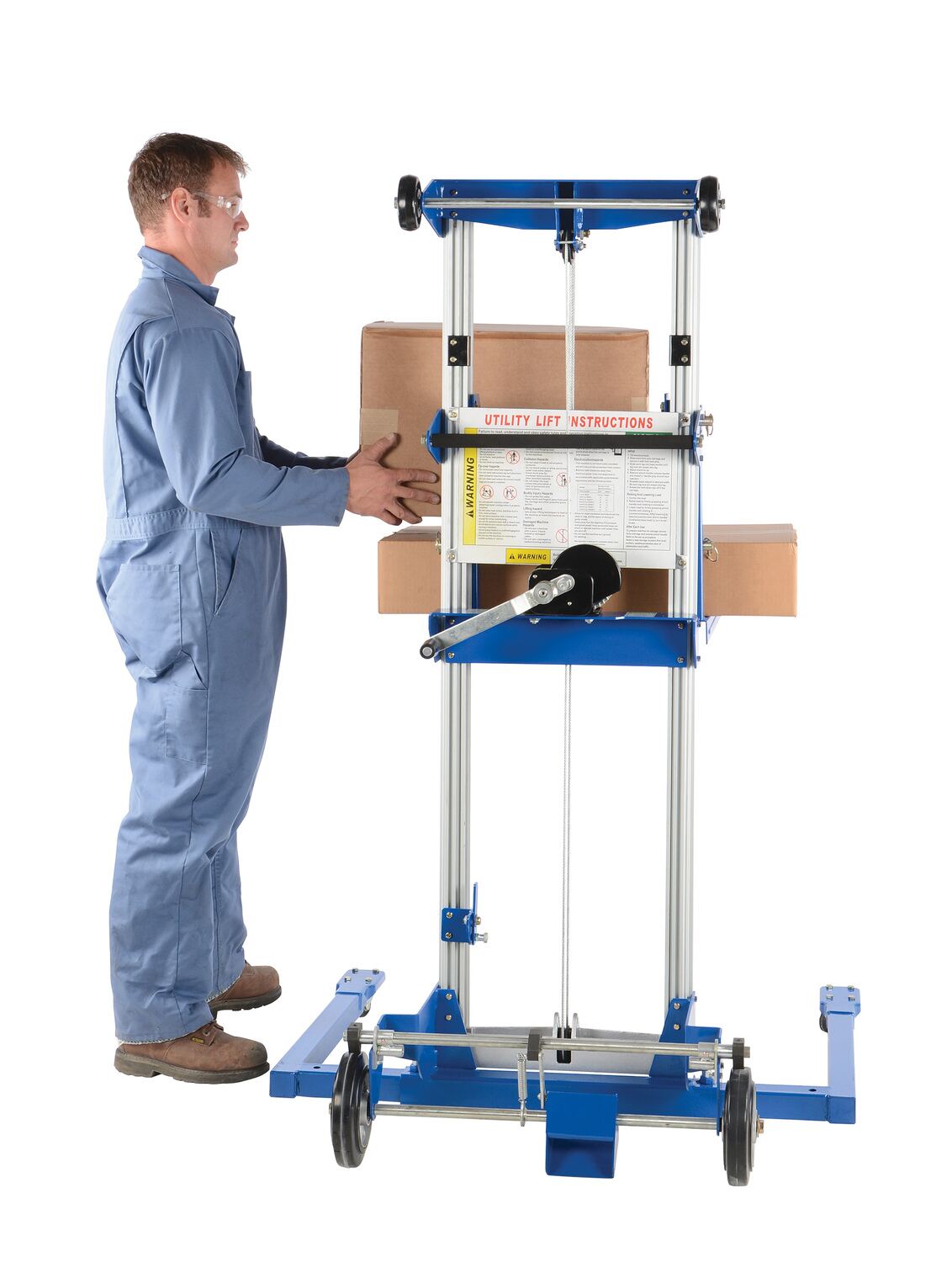

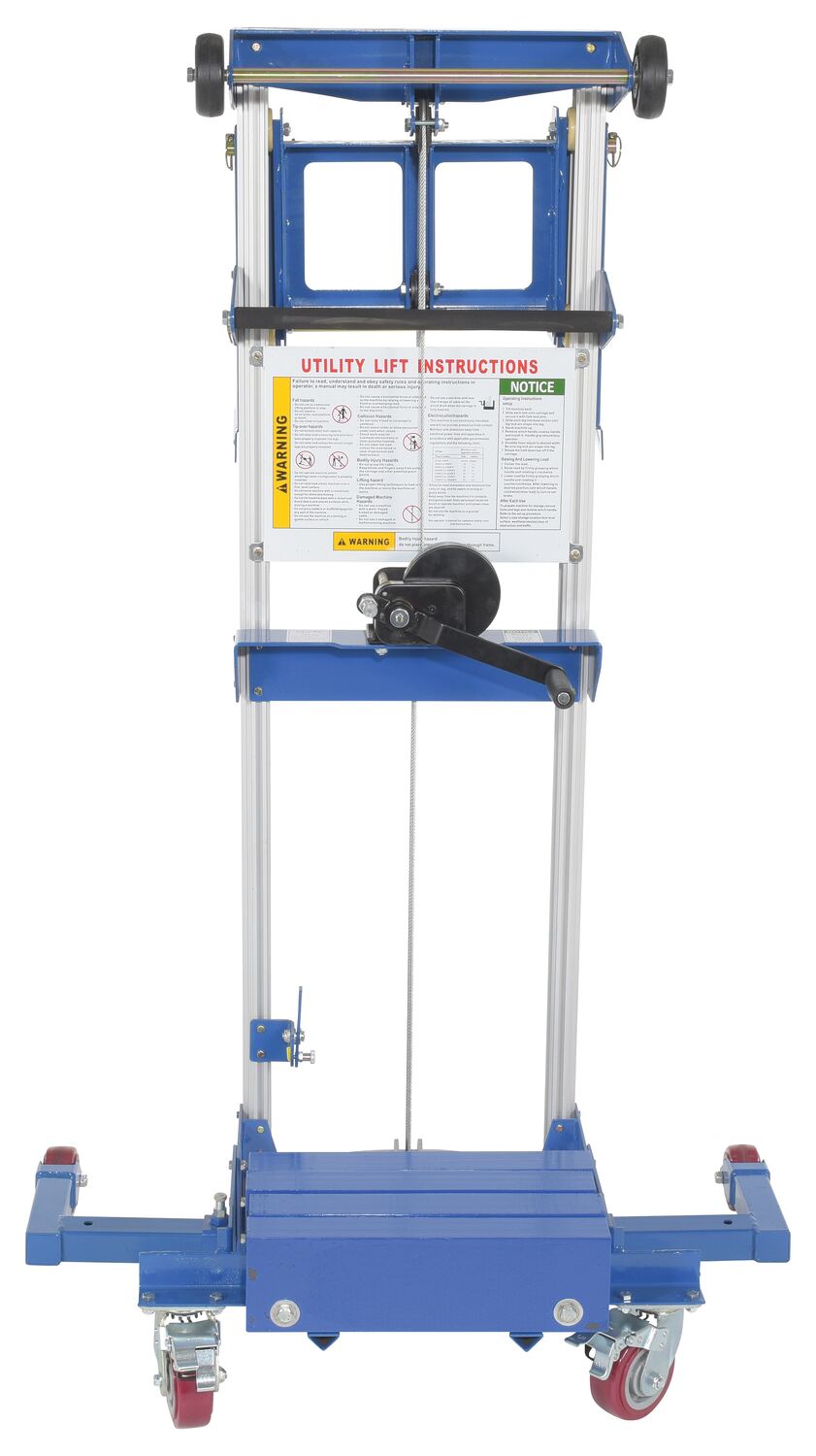

Manual cable winch easily raises and lowers forks

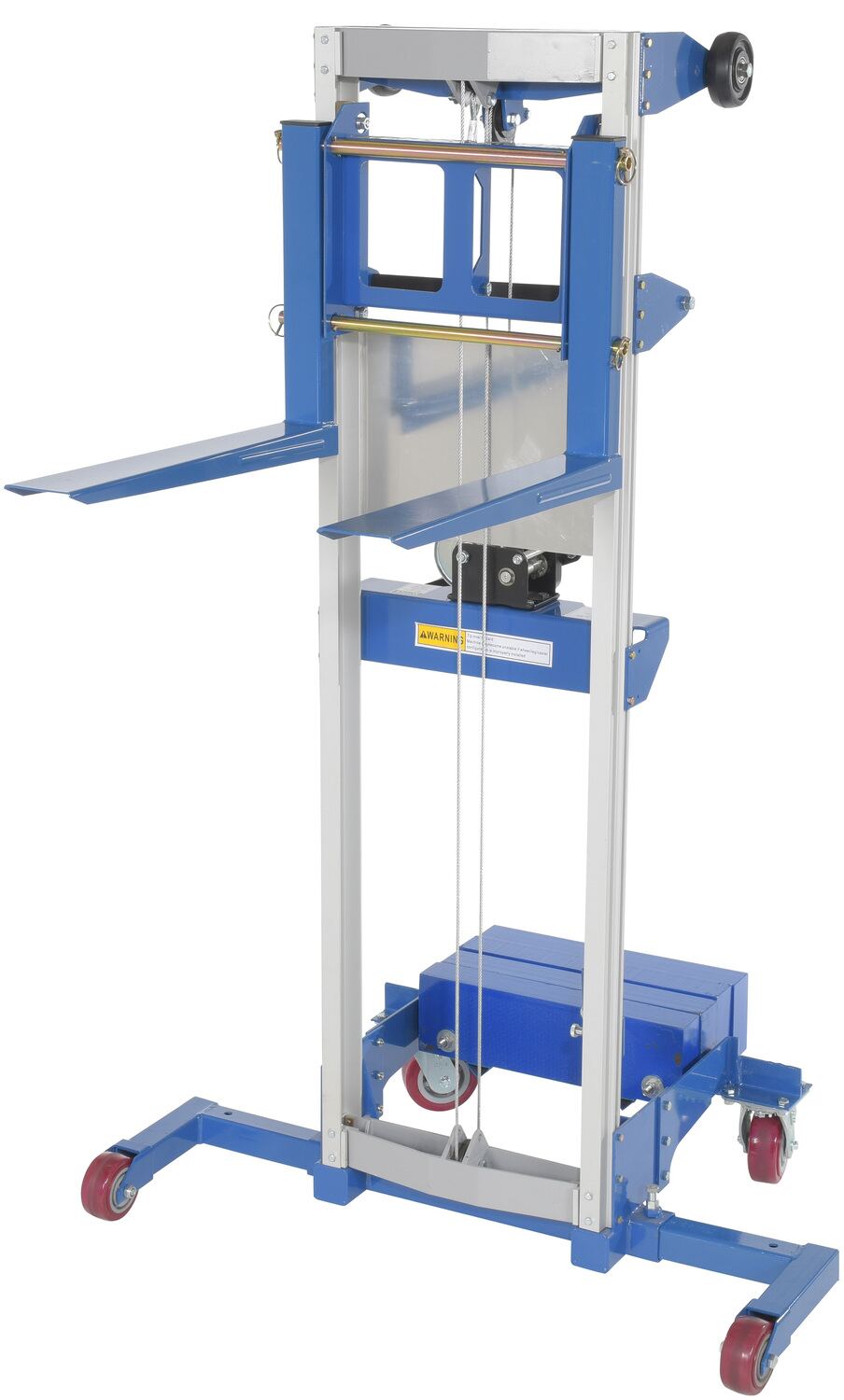

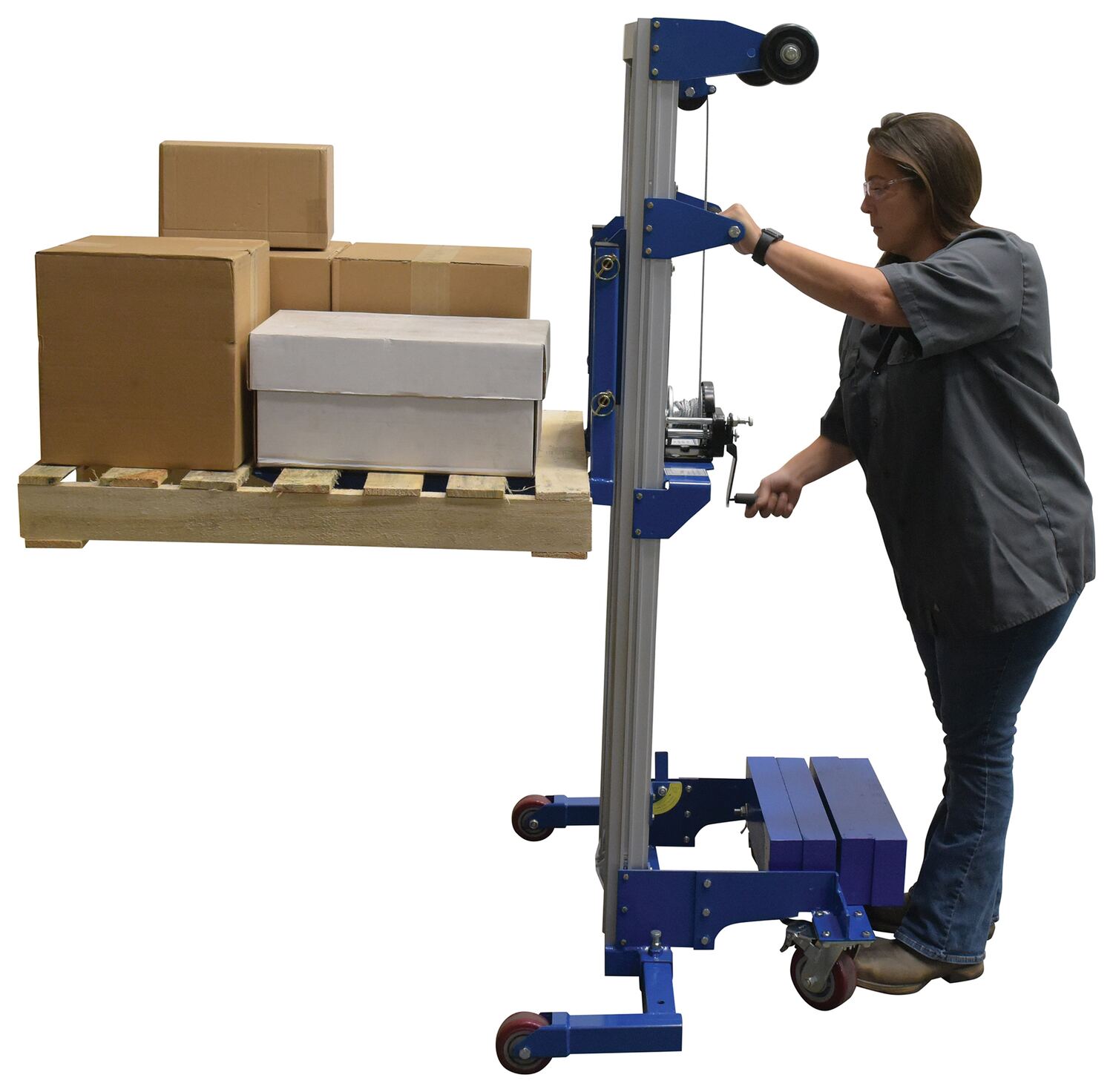

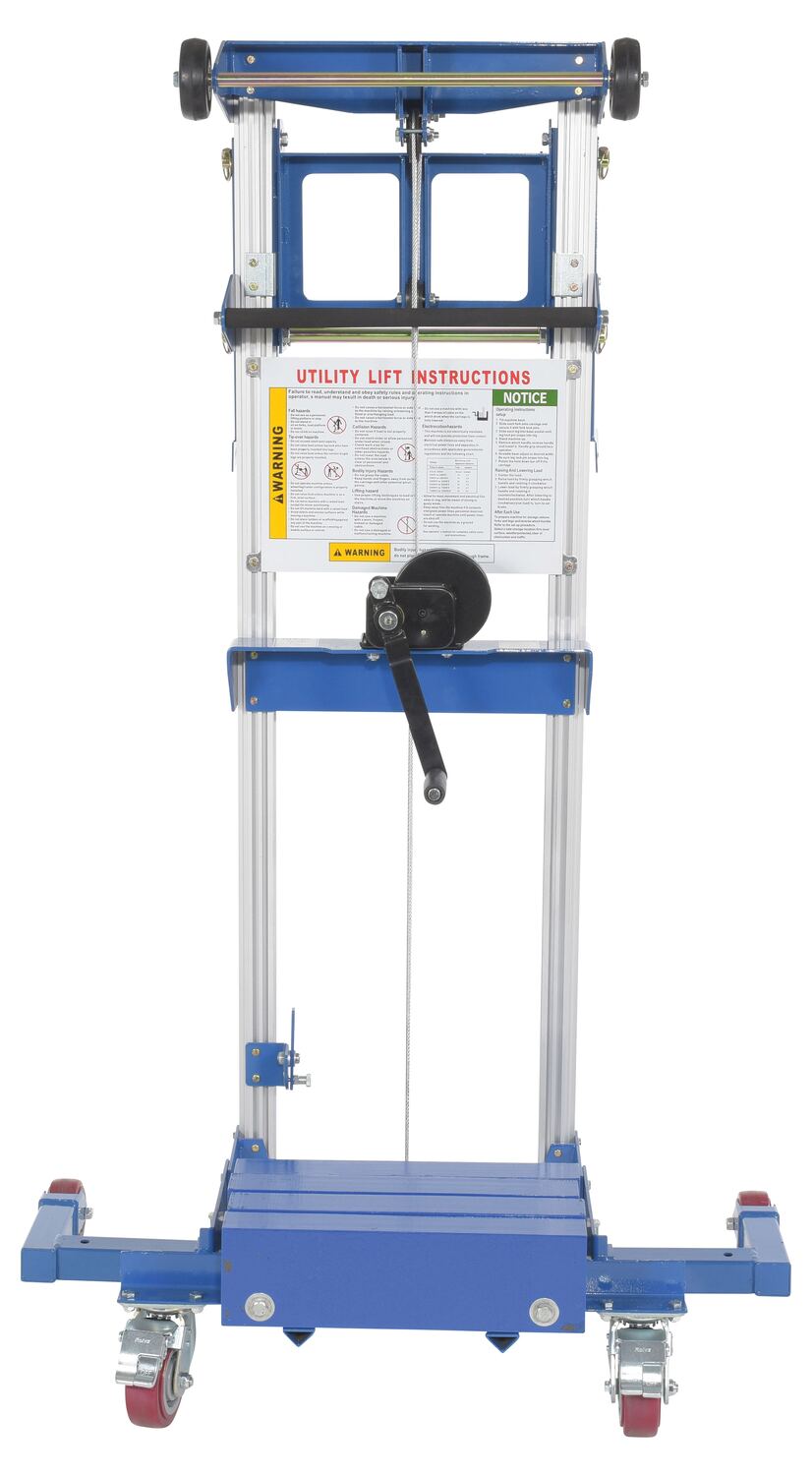

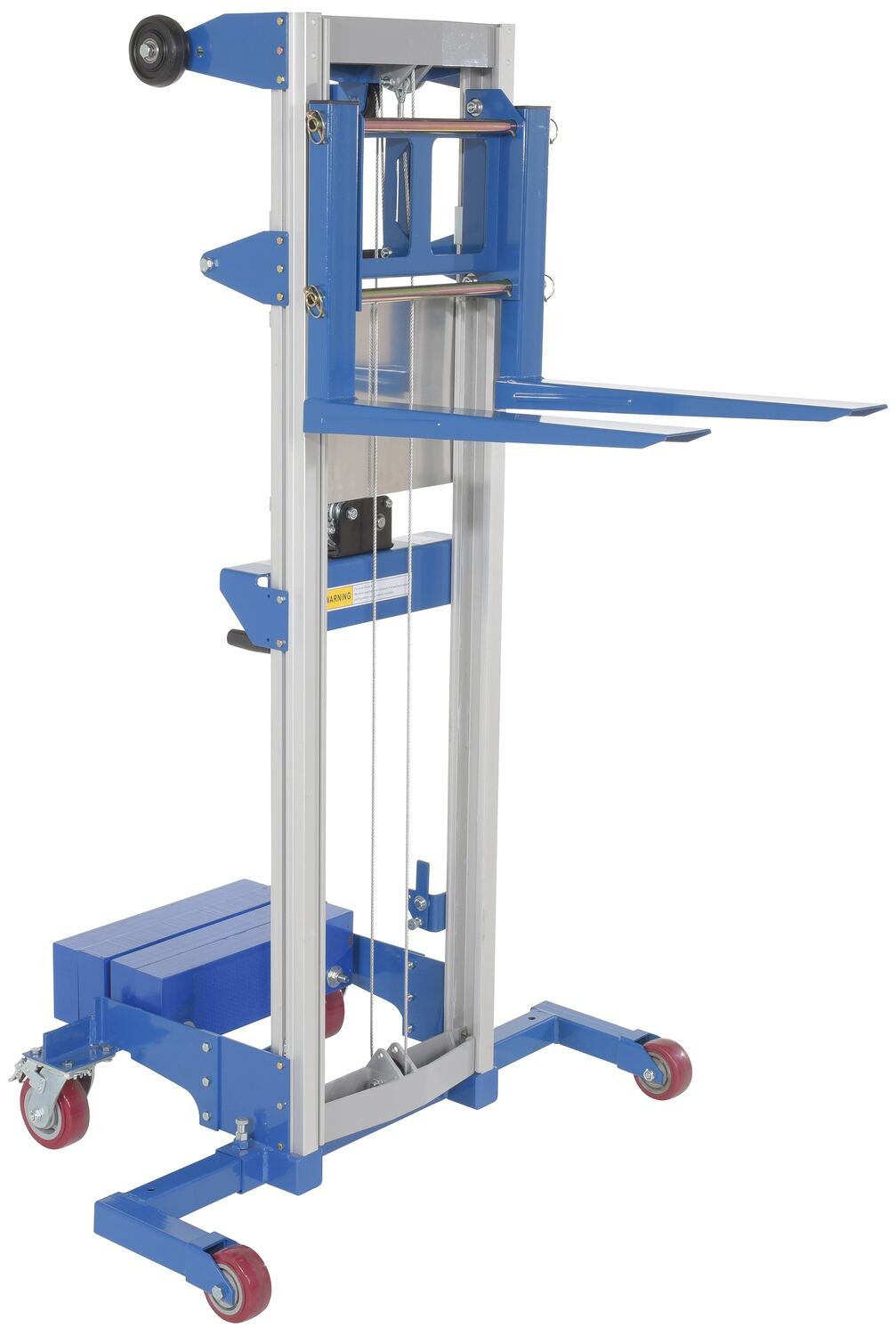

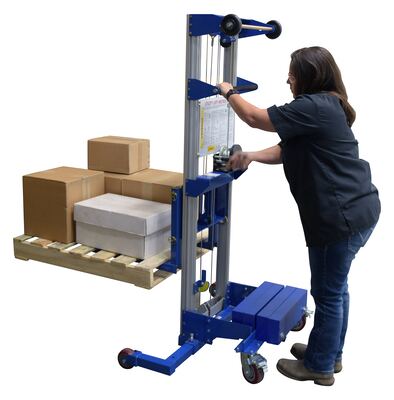

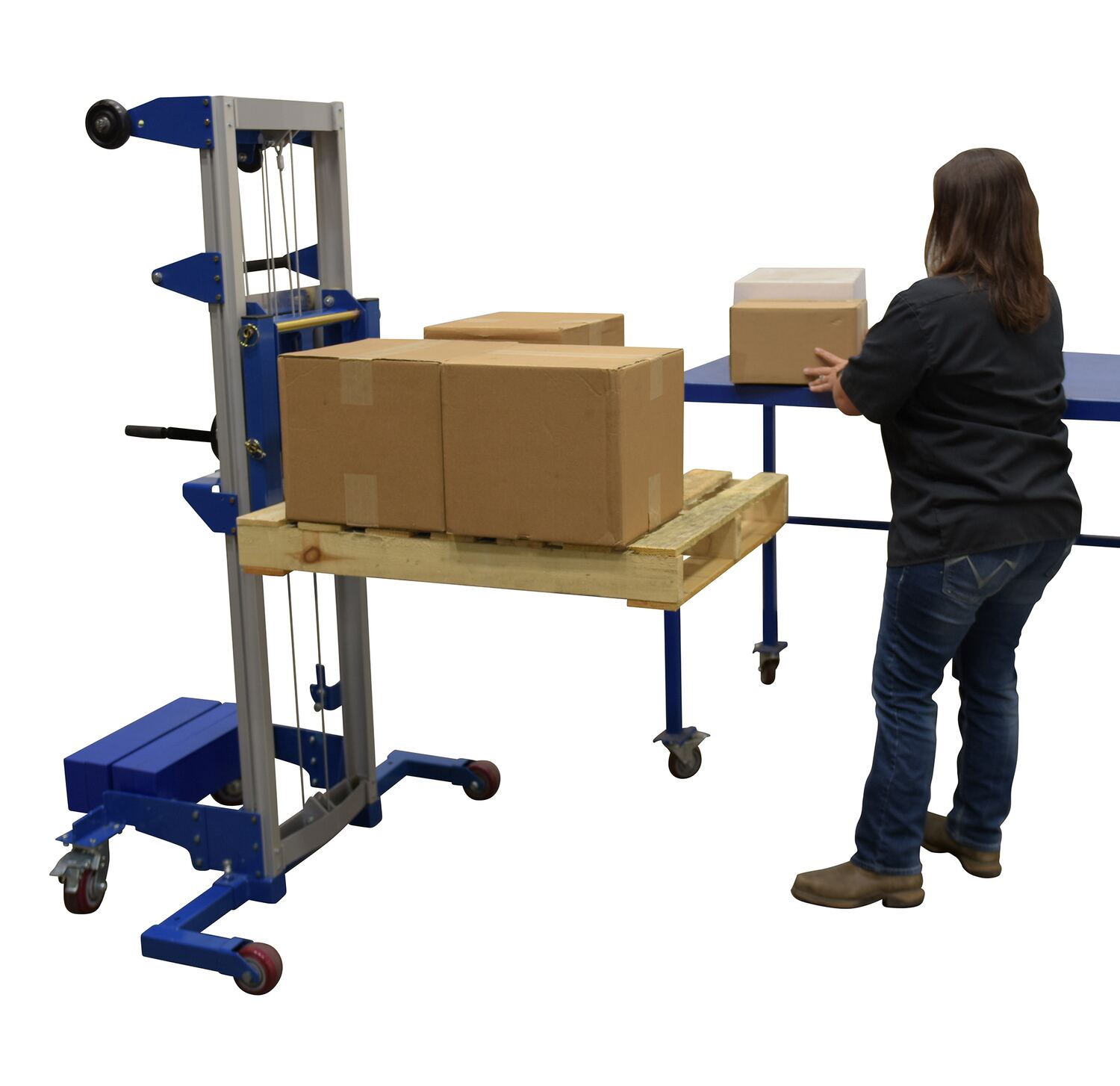

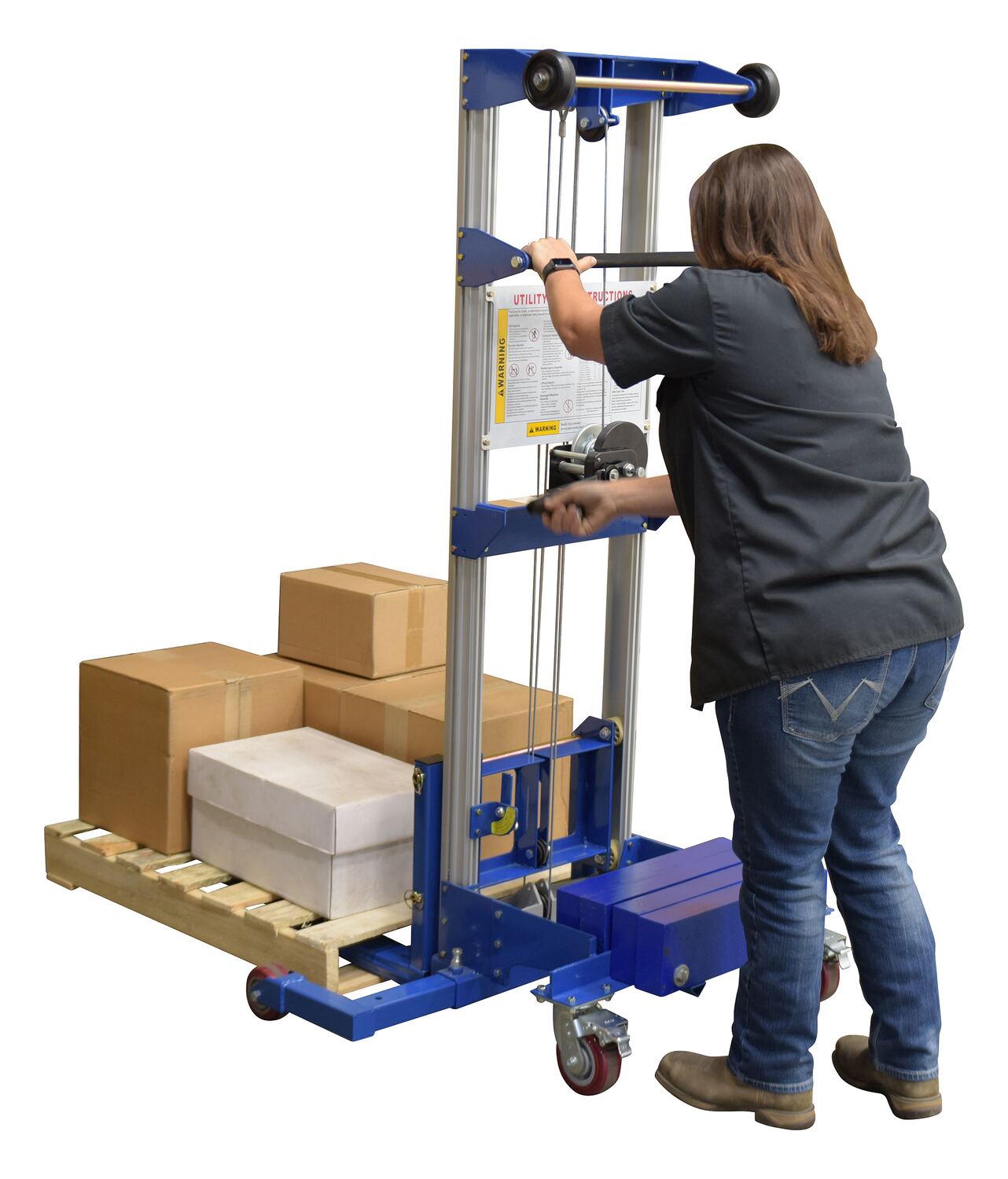

Counterbalance weight design keeps unit from tipping with heavy loads

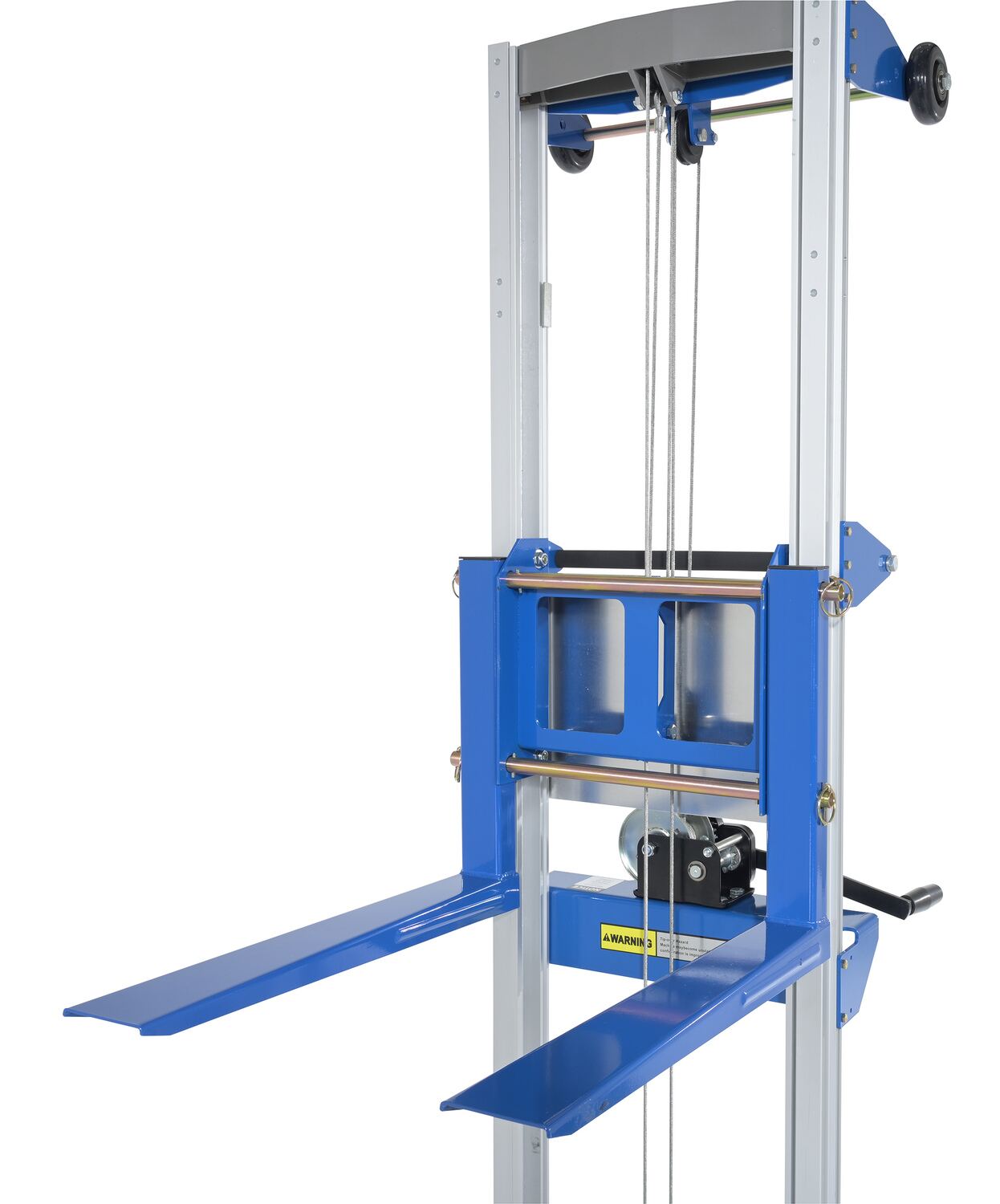

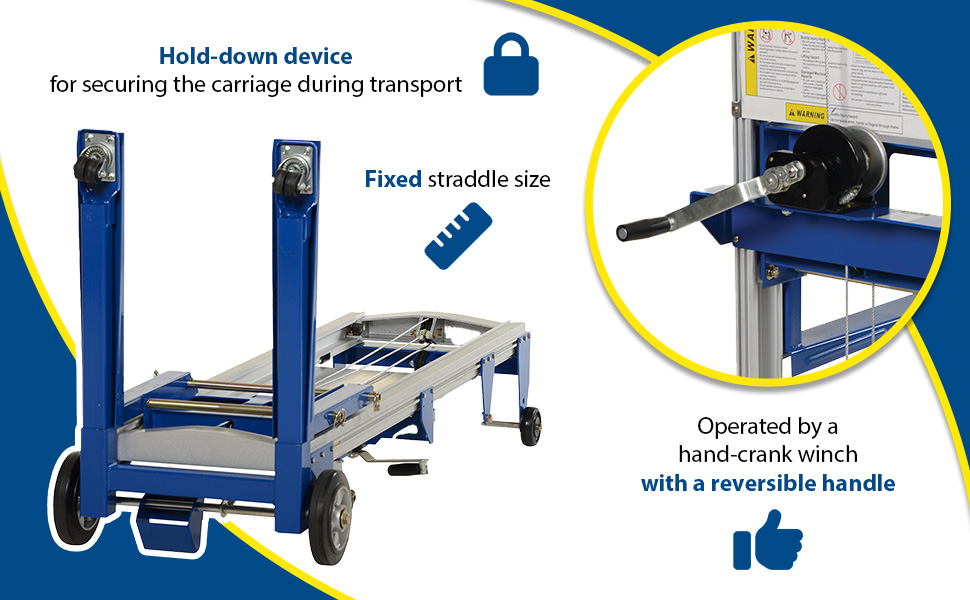

Hold-down device secures carriage during transport
Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.
Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.
Lightweight portable lifts are great for hundreds of applications
Manual cable winch easily raises and lowers forks
Counterbalance weight design keeps unit from tipping with heavy loads
Hold-down device secures carriage during transport
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 500 Lowered Height with Forks Down (in.): 2 Uniform Capacity (lb.): 500 Lowered Height with Forks Down (in.): 2
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 350 Lowered Height with Forks Down (in.): 2 / 21-1/4 Uniform Capacity (lb.): 350 Lowered Height with Forks Down (in.): 2 / 21-1/4
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 400 Lowered Height with Forks Down (in.): 2 / 21-1/4 Uniform Capacity (lb.): 400 Lowered Height with Forks Down (in.): 2 / 21-1/4
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 500 Lowered Height (in.): 3-1/2 / 23-1/2 Uniform Capacity (lb.): 500 Lowered Height (in.): 3-1/2 / 23-1/2
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 400 Lowered Height (in.): 3-1/2 / 23-1/2 Uniform Capacity (lb.): 400 Lowered Height (in.): 3-1/2 / 23-1/2
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 500 Lowered Height (in.): 1-1/4 / 21-1/4 Uniform Capacity (lb.): 500 Lowered Height (in.): 1-1/4 / 21-1/4
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 350 Lowered Height (in.): 1-1/4 / 21-1/4 Uniform Capacity (lb.): 350 Lowered Height (in.): 1-1/4 / 21-1/4
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity (lb.): 400 Lowered Height (in.): 1-1/4 / 21-1/4 Uniform Capacity (lb.): 400 Lowered Height (in.): 1-1/4 / 21-1/4
For More Details of the Option Click the Red Model Button

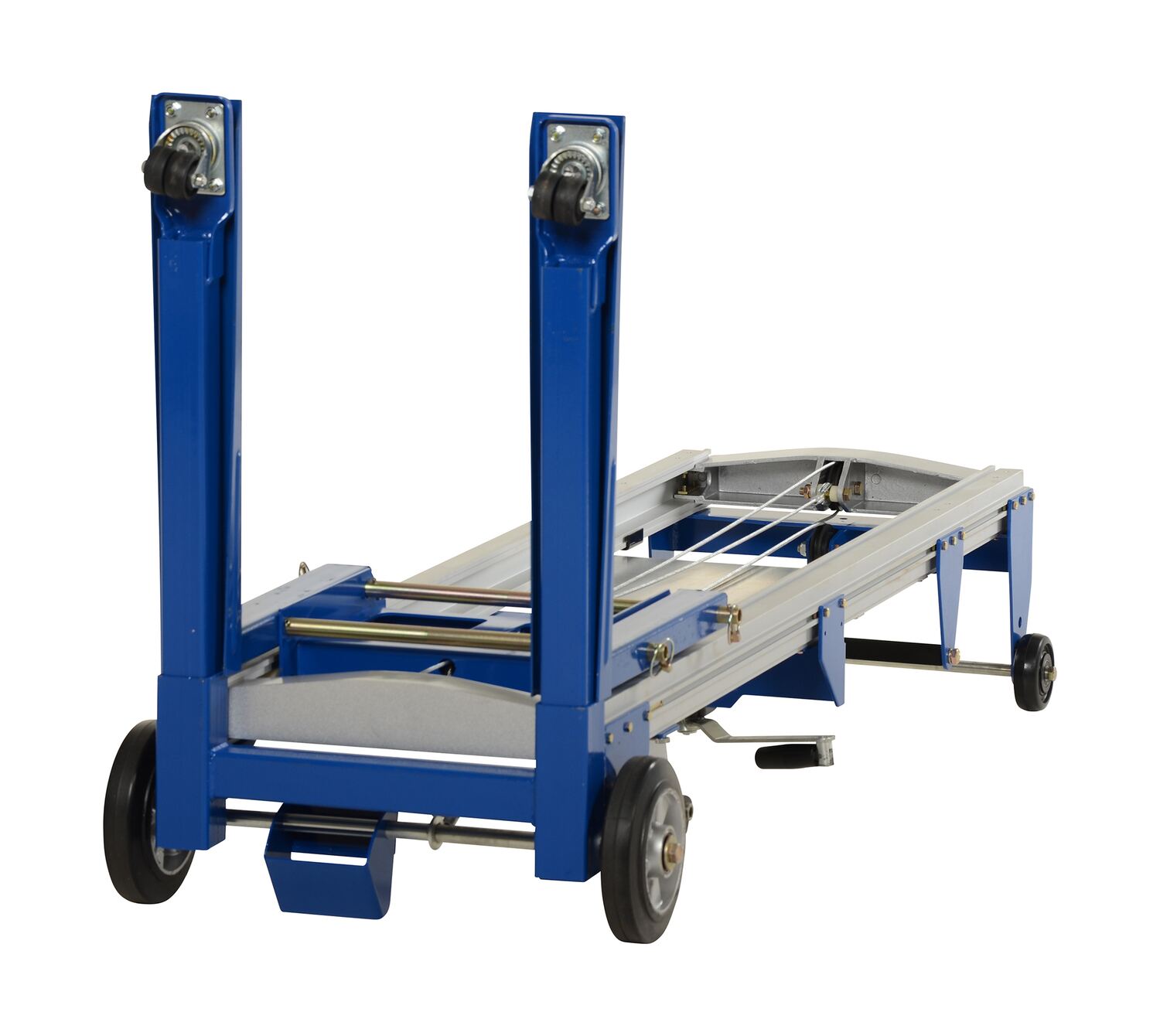

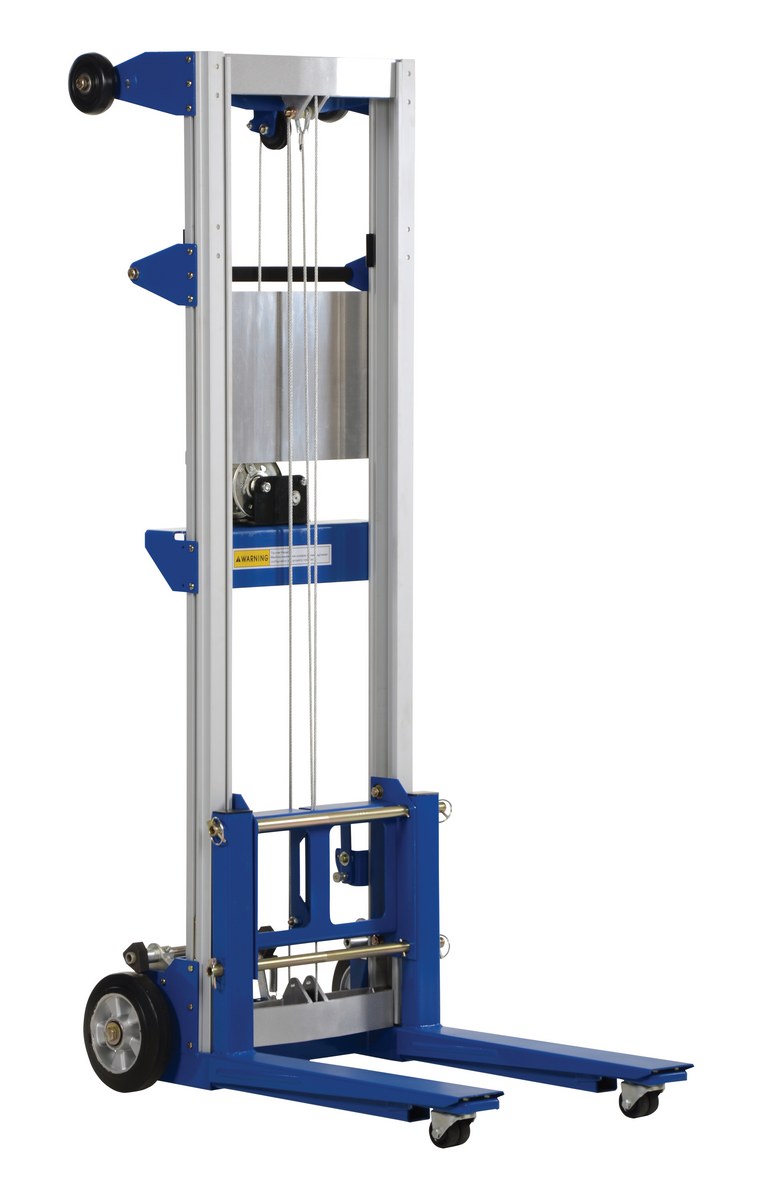

Q: What is the overall height with the forks raised for A-LIFT-R-HP?
A: The raised forks are 3" above the frame.
Q: At what point does the frame raise?
A: The frame of the A-LIFT-R-HP telescopes up when it hits 68".

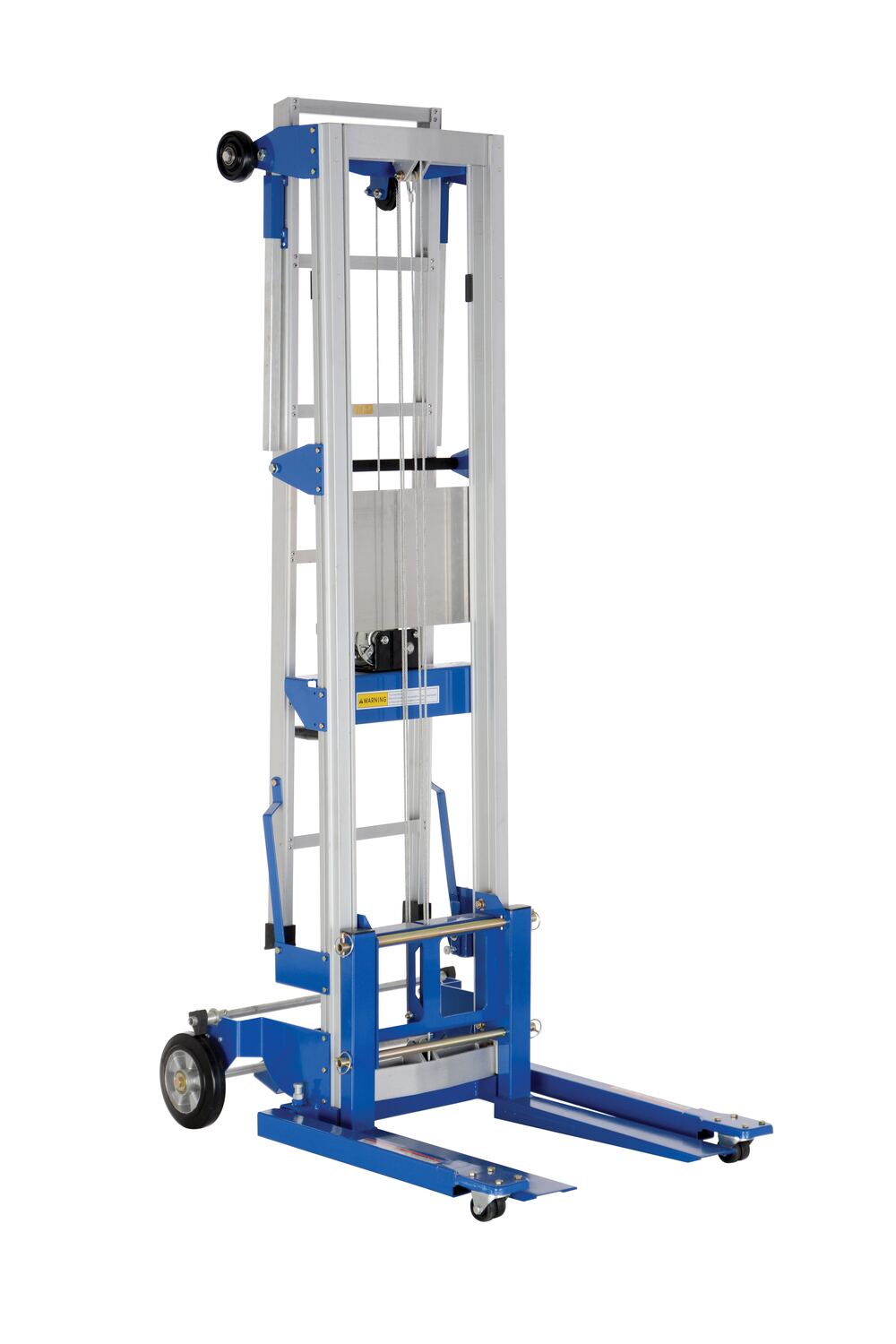

Q: What is the maximum working height or the top step height on the A-LIFT-EHP-LAD option?
A: The top step height is 66.5"
Q: Can the ladder be installed on a counter balance lift?
A: No the ladder cannot be installed on the A-LIFT-CB.
Q: Can a ladder be added to an existing lift truck?
A: Yes a ladder can be added to an existing lift truck in the field. Choose appropriate model number that corresponds with for your lift truck, or contact sales with your lift truck serial number.

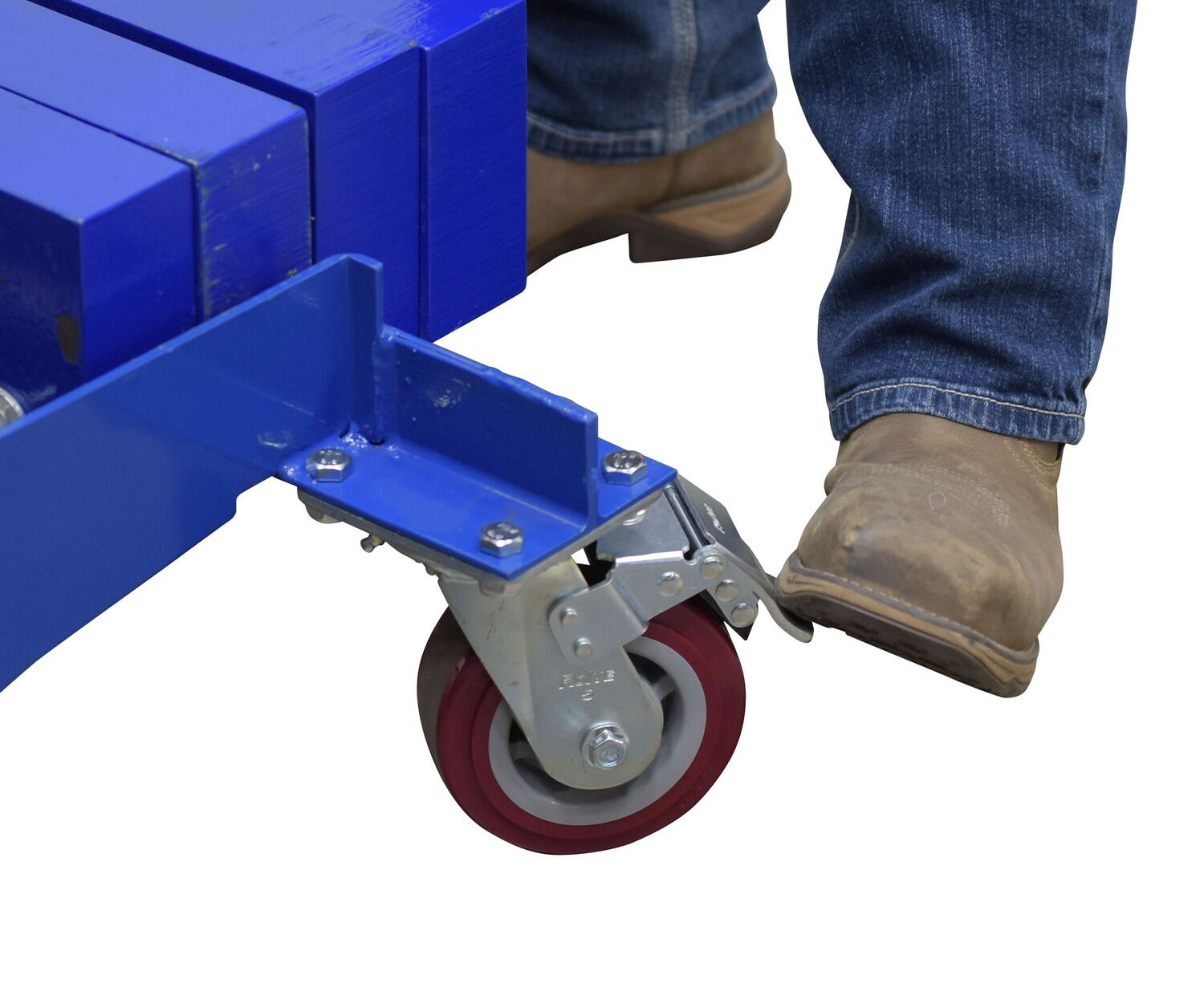

Q: Do the Hand Winch Lift Trucks have a brake?

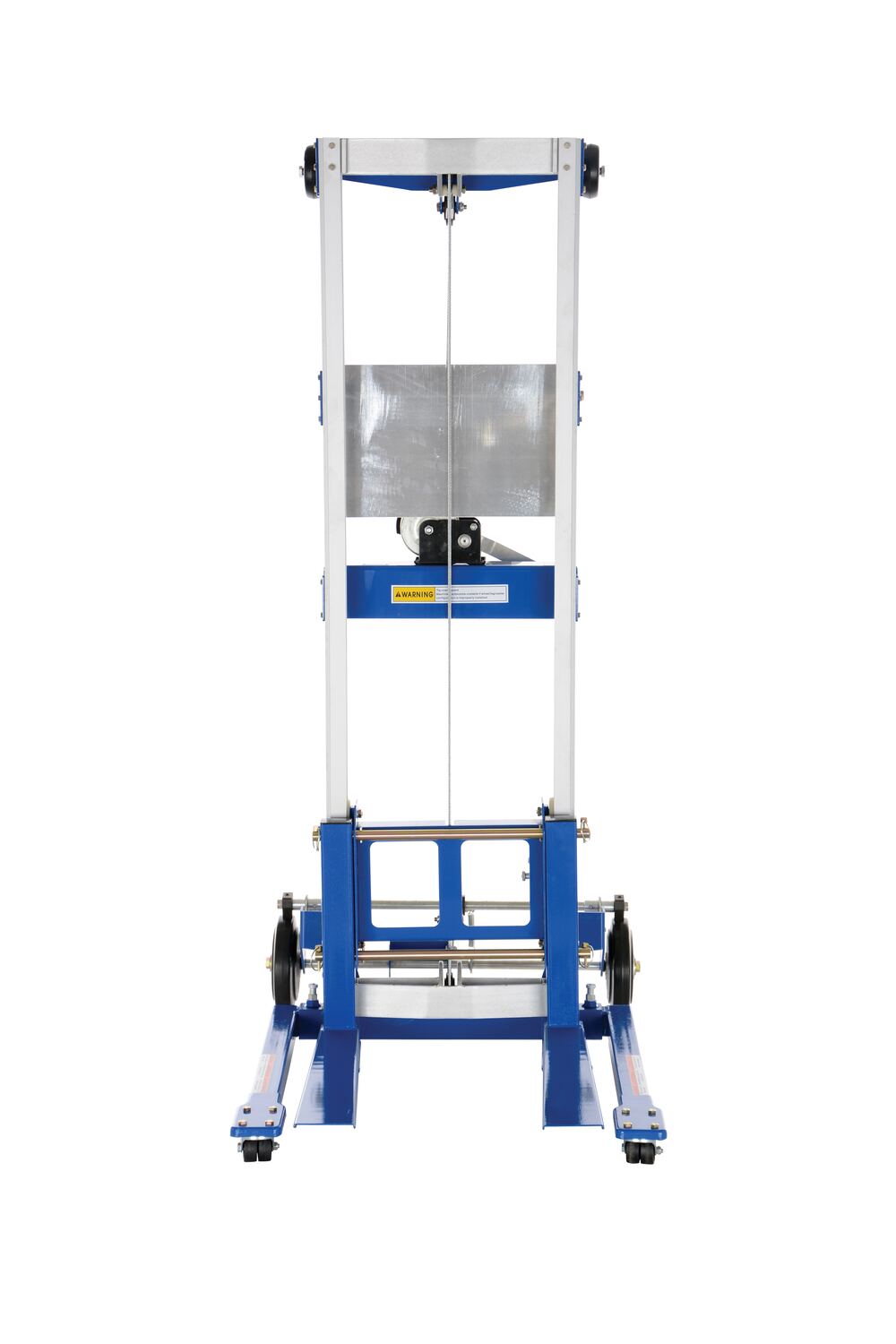

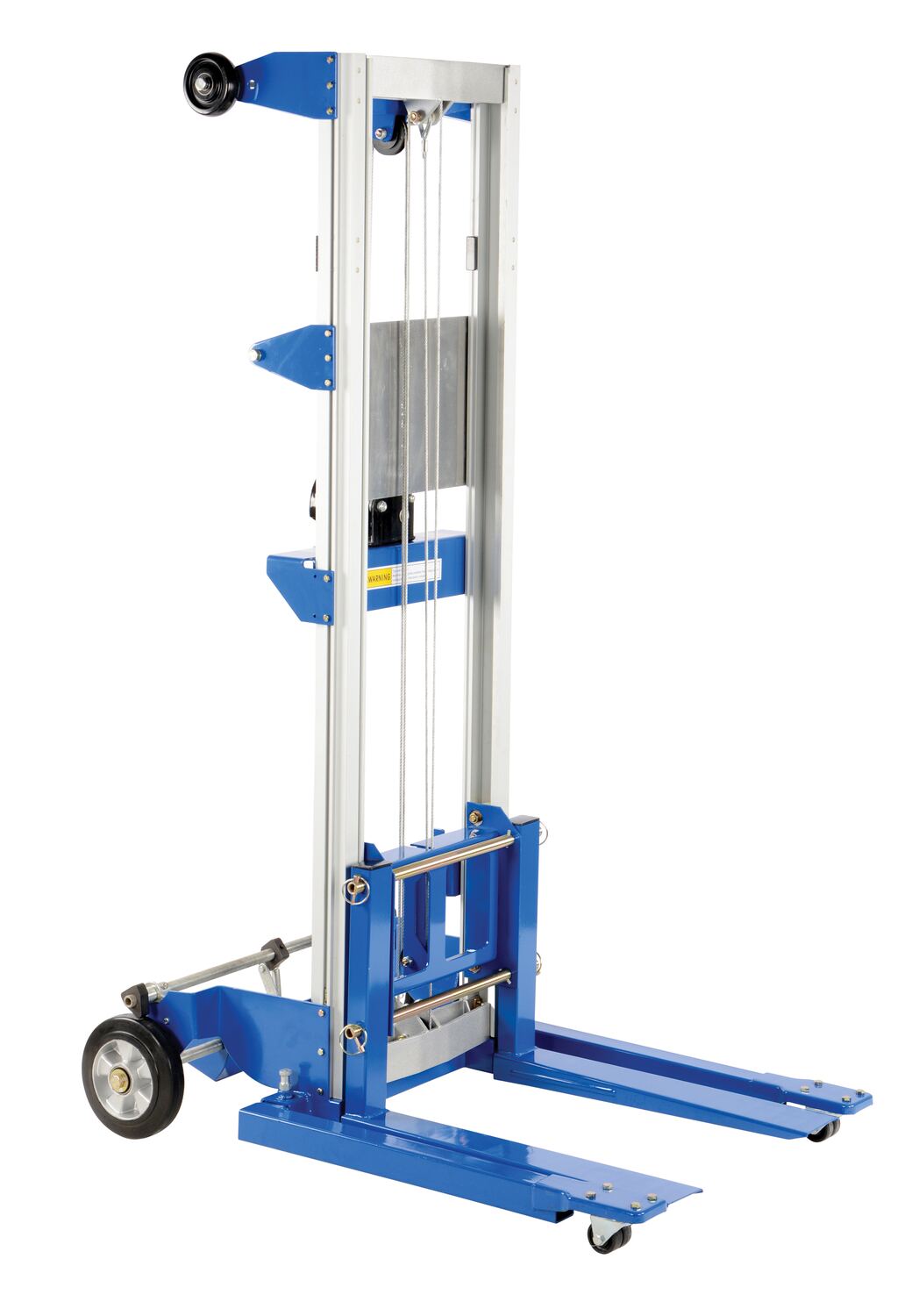

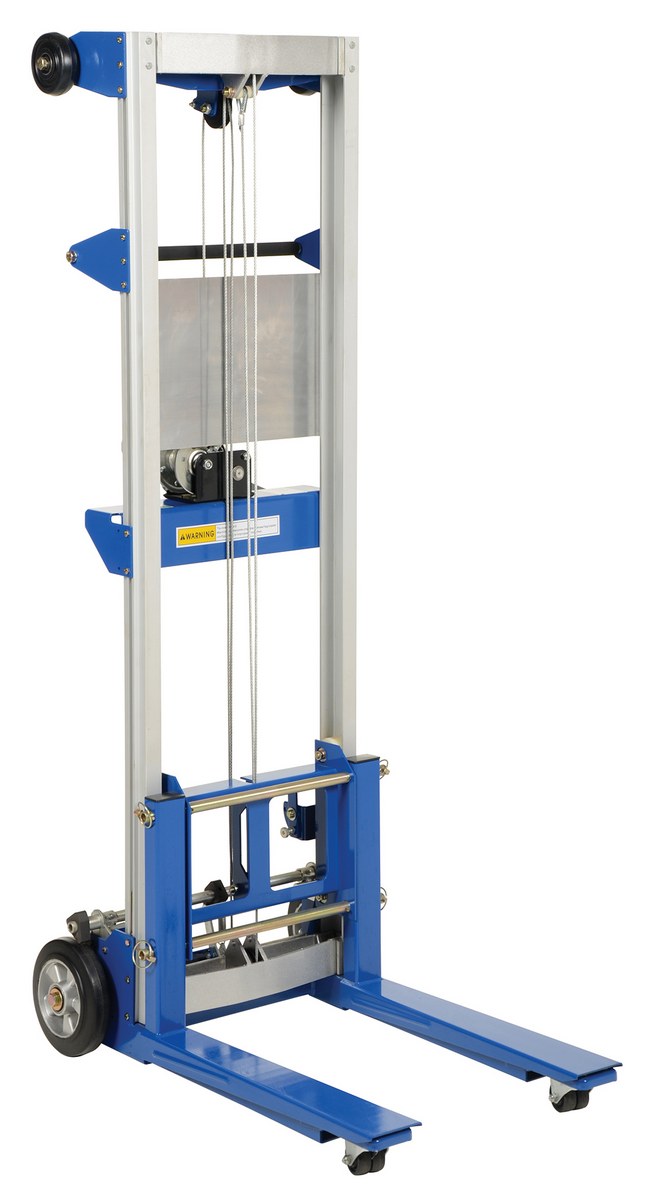

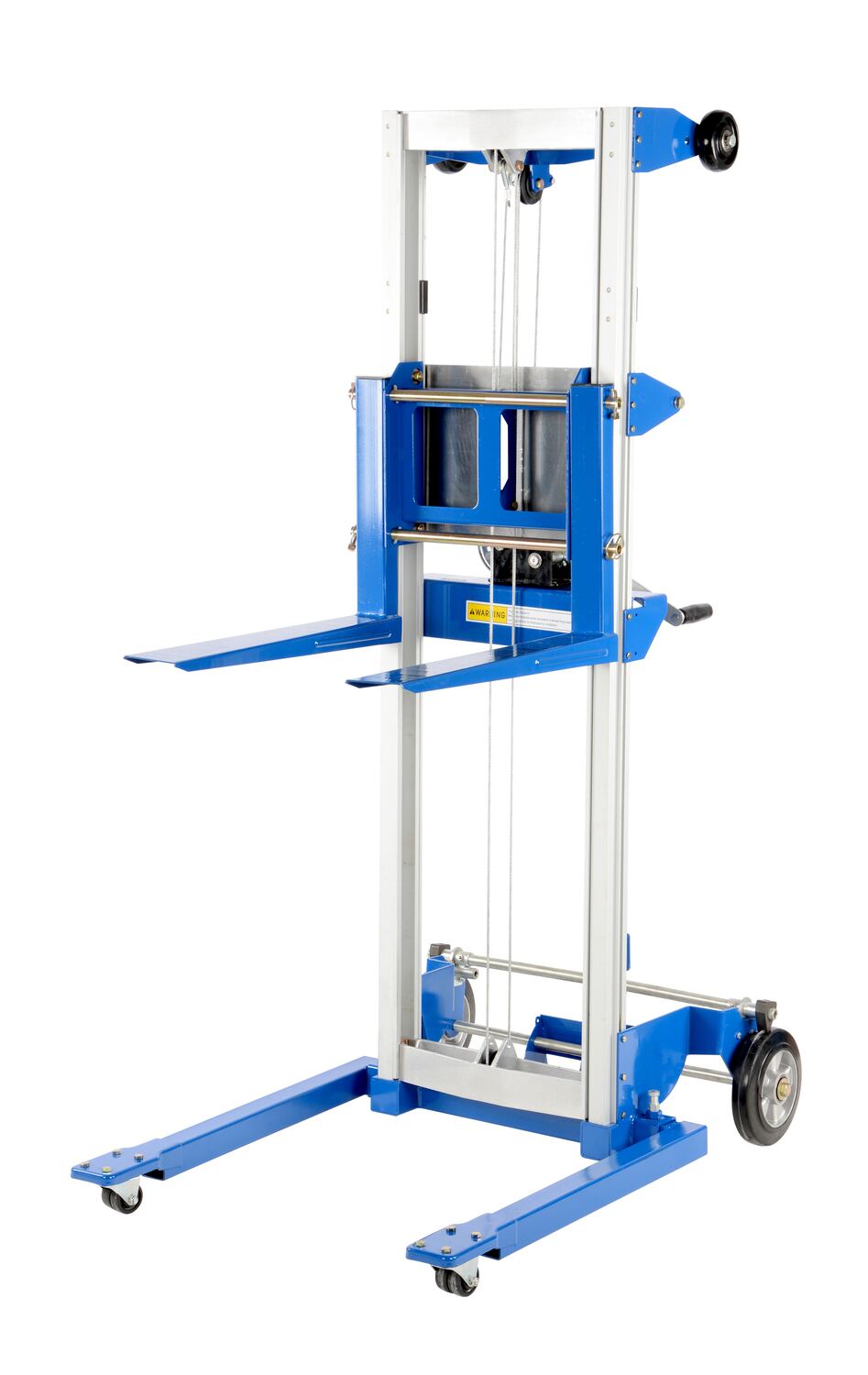

A: The A-LIFT-R series and the A-LIFT-S series both have a foot break that is connected to the axle of the rear wheels.
Compact lift trucks are designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. Constructed of durable steel-and-aluminum. The rugged 4" wide by 1-3/4" thick steel forks measure 22" long (20-1/2." O.D.). Operated by a hand-crank winch that features a reversible handle and a hold-down device for securing the carriage during transport. Forks raise 1" per complete hand crank rotation. The non-adjustable forks can be inverted to provide different height ranges. Two 8" non-marking rear wheels, two 2" front swivel casters. Counter balanced design has poly-on-poly wheels, (2) 5" rear swivel wheels, (2) 4" front wheels. Models ending with 'HP' and 'EHP' suffixes have extended height capabilities. These units have a 2 stage mast system and a telescoping inner mast frame, giving the user the ability to extend the forks above the height of the first mast.
Optional aluminum ladder can be retrofitted or ordered with A-LIFT. Ladder retracts into unit upright when not in use. Model A-LIFT-LAD is 20-1/2"W x 57-1/2"H, while model A-LIFT-EHP-LAD is 20-5/8"W x 69-1/2"H with 11-3/4 rung spacing. Ladder capacity is 250 lbs.
Lightweight portable lifts are great for hundreds of applications
Manual cable winch easily raises and lowers forks
Counterbalance weight design keeps unit from tipping with heavy loads
Hold-down device secures carriage during transport
Model #
Description
Attributes
Net Wt. (lbs)

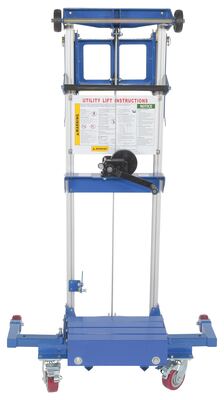

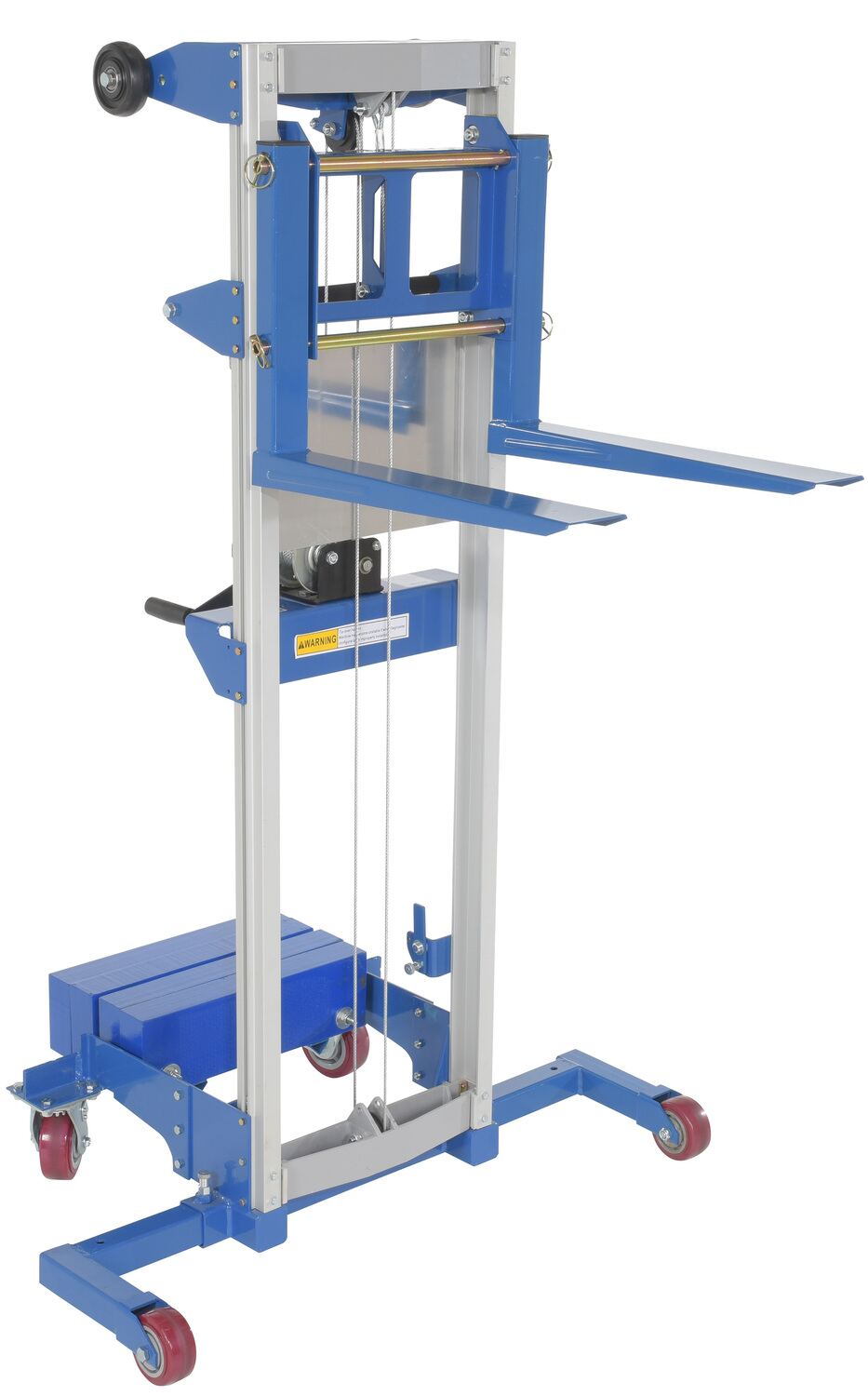

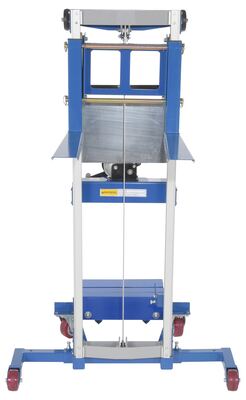

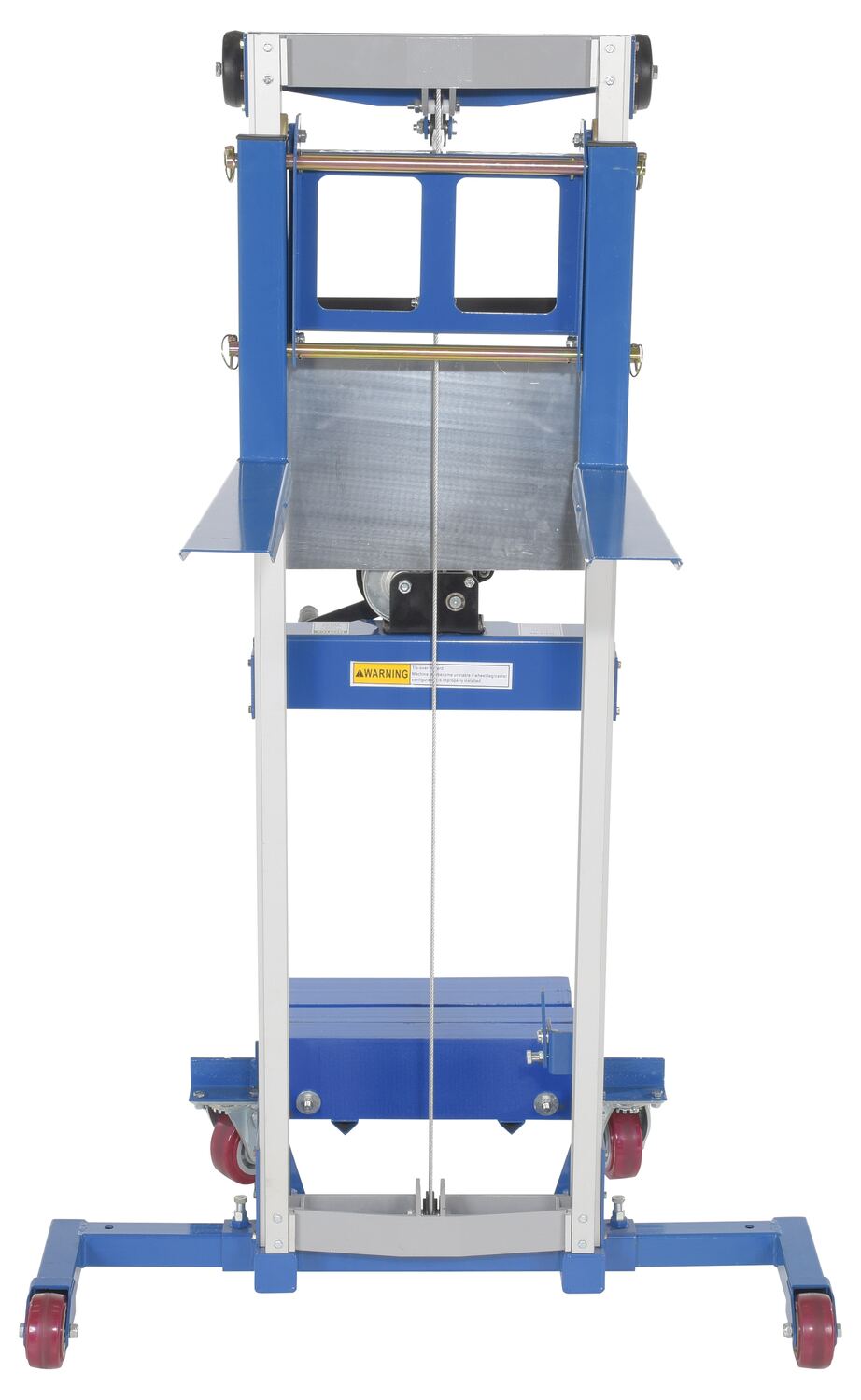

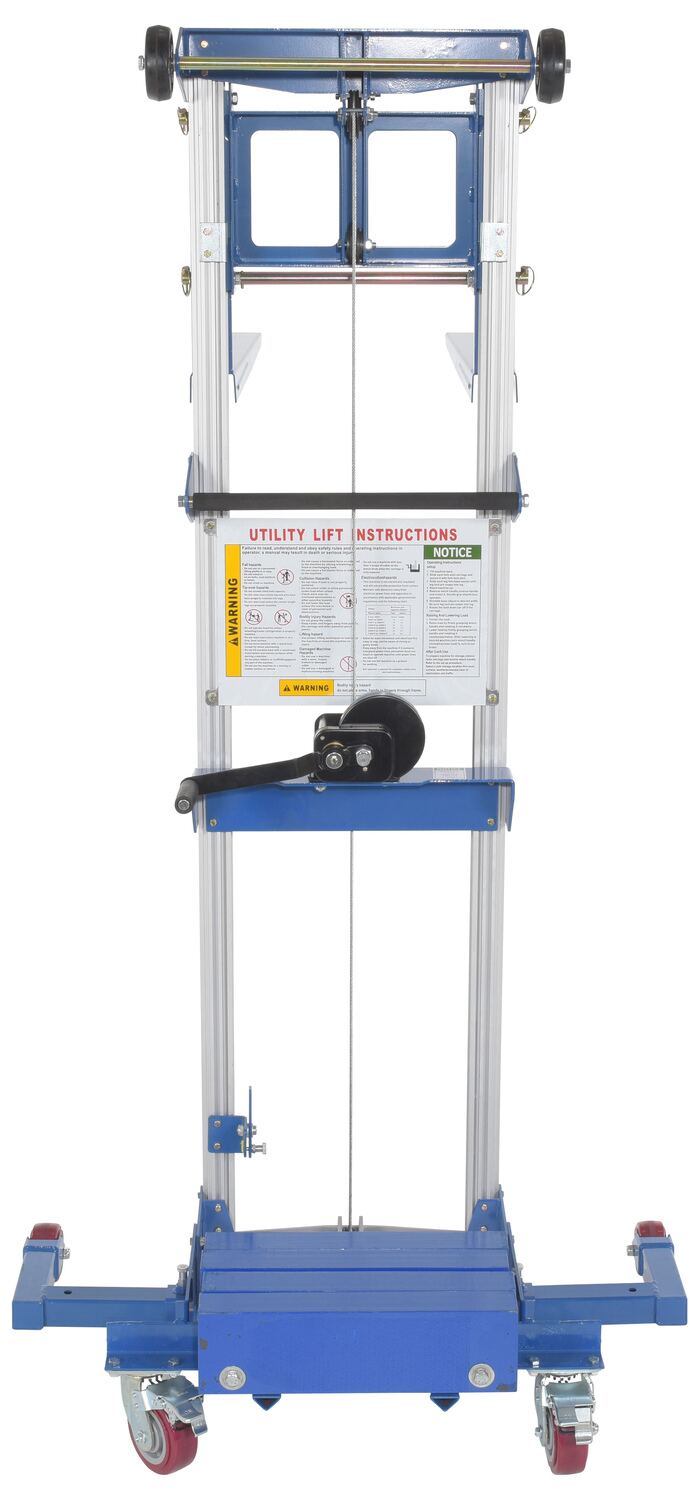

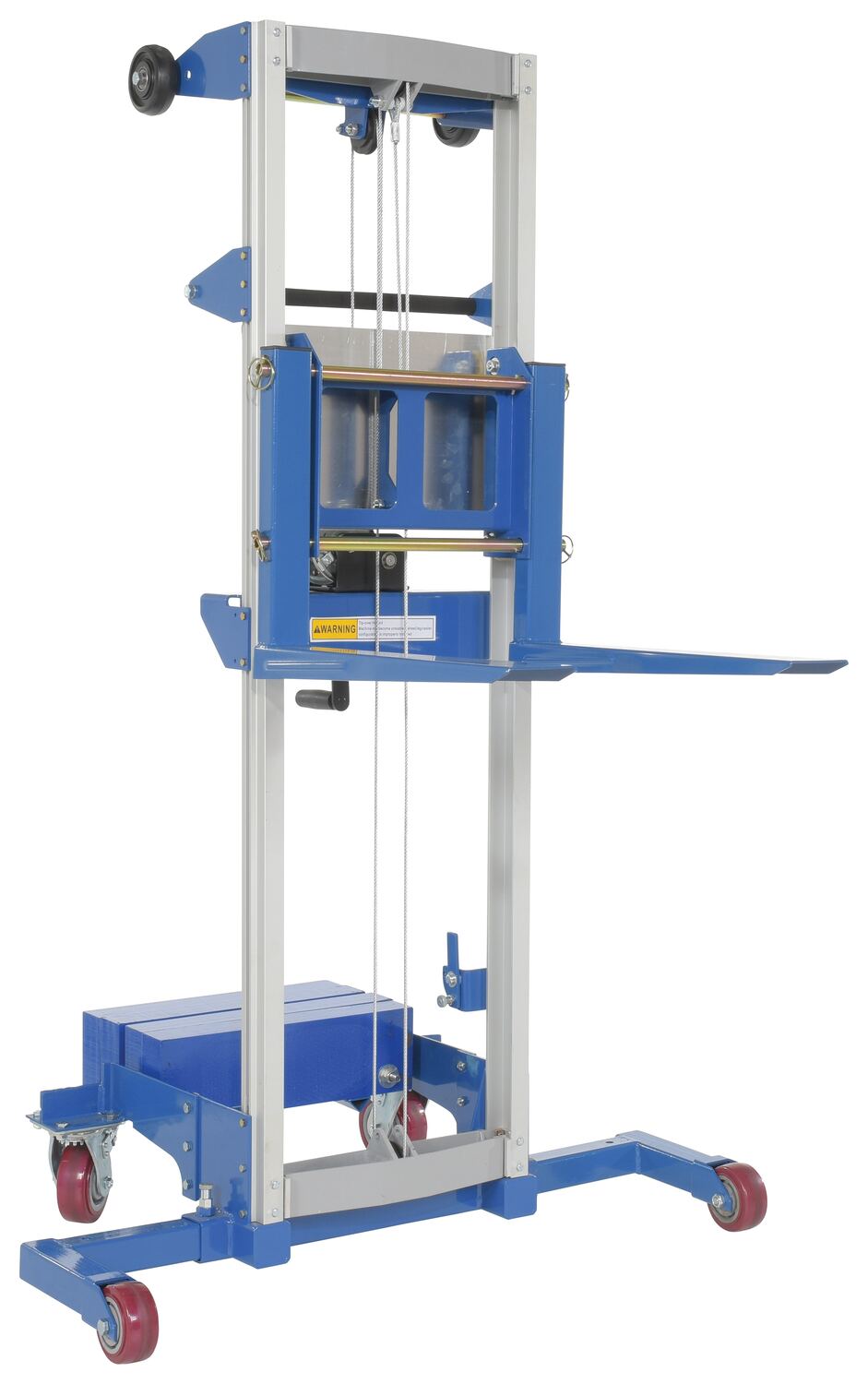

A-LIFT-CB
Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 500 Lb. Capacity Silver/Blue
Uniform Capacity (lb.): 500 Lowered Height with Forks Down (in.): 2
437

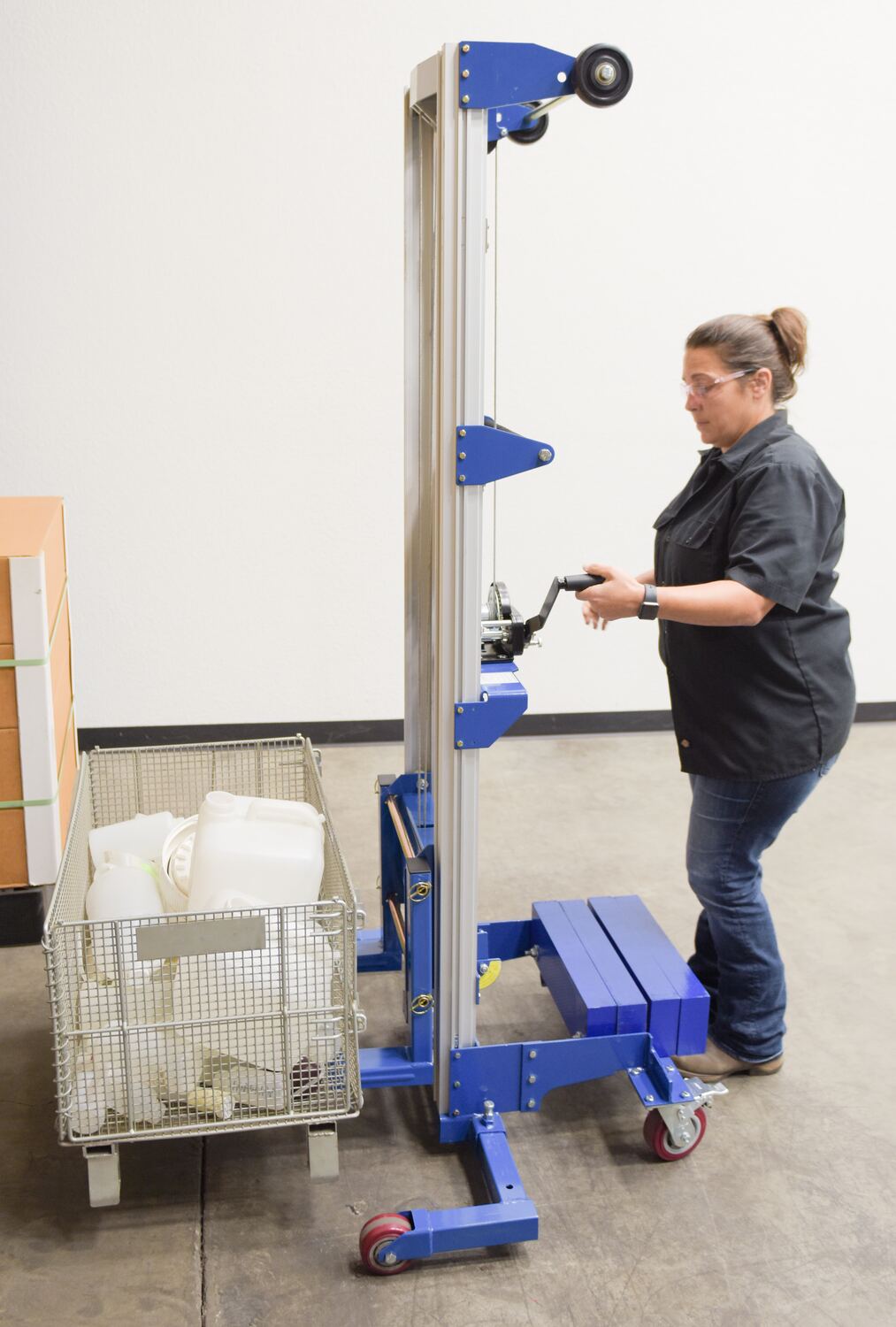

A-LIFT-CB-EHP
Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 350 Lb. Capacity Silver/Blue
Uniform Capacity (lb.): 350 Lowered Height with Forks Down (in.): 2 / 21-1/4
454
A-LIFT-CB-HP
Aluminum/Steel Manual Hand Winch Lift Truck With Counter Balance 400 Lb. Capacity Silver/Blue
Uniform Capacity (lb.): 400 Lowered Height with Forks Down (in.): 2 / 21-1/4
