EPFC-16-LP

Printer Friendly
Available
EPFC-16-LP
EPFC-16-LP EPFC-16-LP EPFC-16-LP EPFC-16-LP EPFC-16-LP EPFC-16-LP EPFC-16-LP EPFC-16-LP

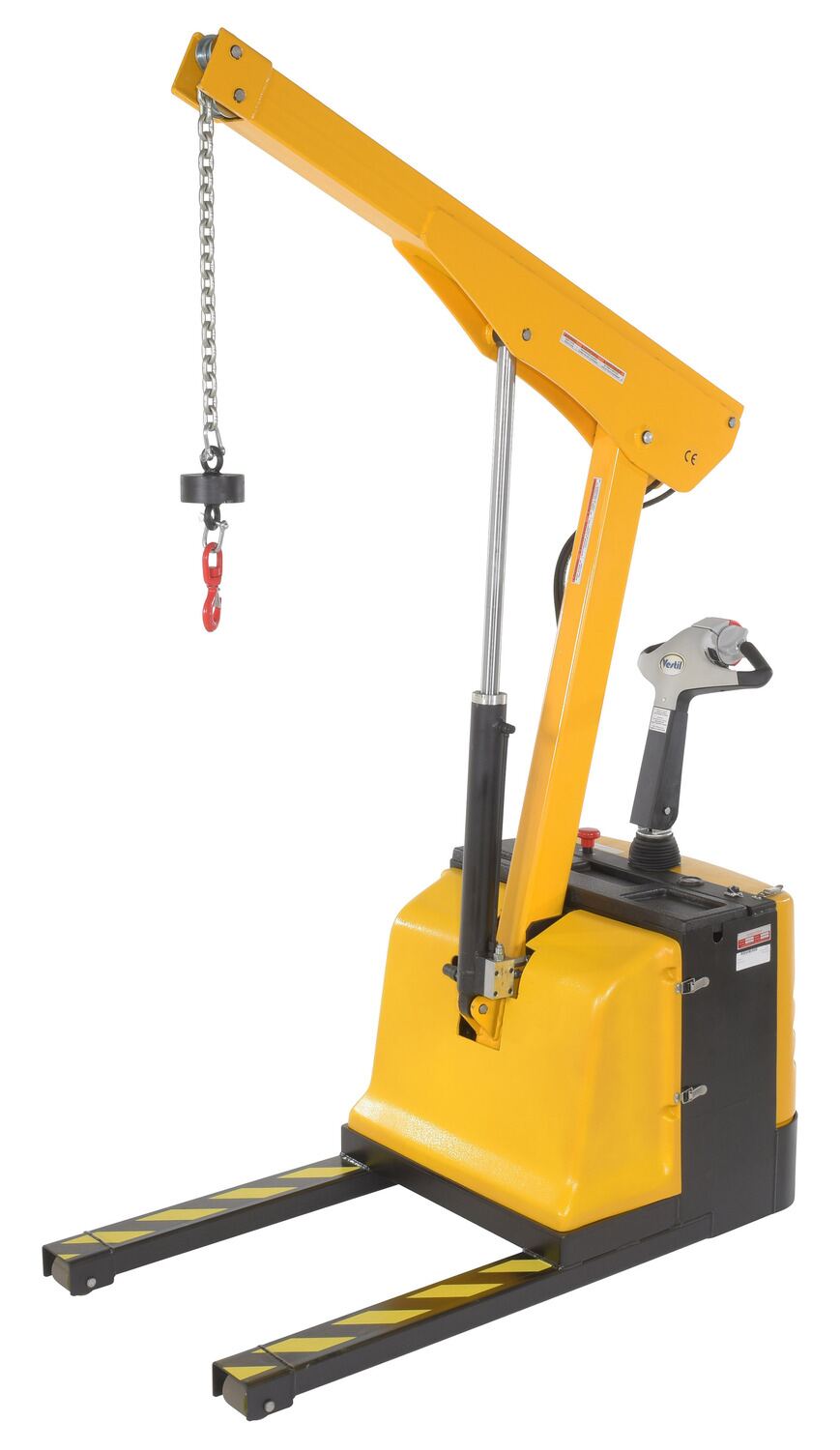

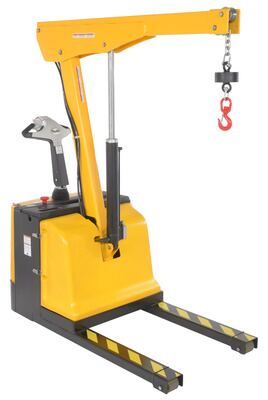

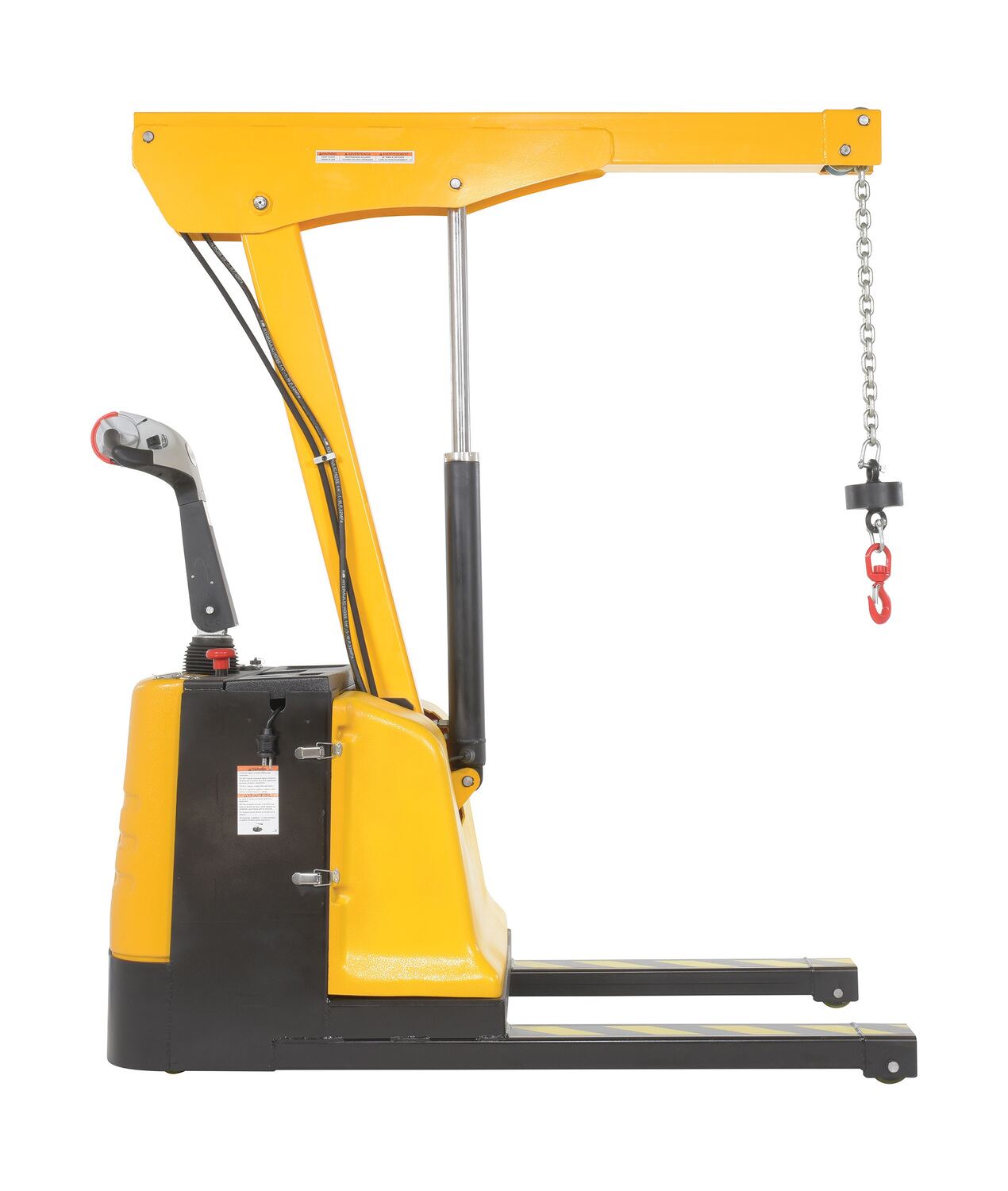

Steel Electric Powered Low Profile Floor Crane 1600 Lb. Capacity Yellow

The low profile electric powered floor crane is a safe and efficient way to lift and move equipment. With the push of a button, the unit raises and lowers loads. Its low profile design can be maneuvered in narrow and crowded warehouses. An included swivel hook with safety latch provides security during lifting. Poly-on-steel, steer and load wheels provide a smooth roll. The handle is both ergonomic and functional, featuring a throttle with infinite forward and reverse speed adjustments. Emergency reverse belly switch instantly reverses direction. Horn is also included.

  • Electromagnetic disc brake
  • Walk behind design
  • 24V internal battery
  • Battery level gauge and charger included
Assembled Wt.(lbs.): 950 Assembled Size: 30.125"W x 65.375"L x 75"H

Total Ship Wt.(lbs.): 1064 (only 1 package) Package 1 Size: 44"W x 86"D x 82"H Color: Yellow

Uniform Capacity (lbs.): 1,600 Arm Height (in.): 70 Drive Motor: DC24V
Battery Type: Acid Controls: Hand Swivel Caster QTY: 1
Swivel Caster Diameter (in.): 10 Swivel Caster Width (in.): 3-1/8 Rigid Caster QTY: 2
Rigid Caster Diameter (in.): 3-1/8 Rigid Caster Width (in.): 3 Caster Material: Poly on Steel
Caster Color: Red Handle Height (in.): 50 Handle Diameter (in.): 1-1/2
Handle Type: Drive Raised Arm Height (in.): 109-1/2 Overall Height (in.): 75
Overall Width (in.): 30-1/8 Overall Length (in.): 65-3/8 Lift Speed w/o Load (sec.): 0.70
Lift Speed w/Load (sec.): 0.50 Lower Down Speed w/o Load (sec.): 0.75 Lower Down Speed w/Load (sec.): 1
Travel Speed w/o Load (m/h): 2.7 Travel Speed w/Load (m/h): 1.8 Gradeability (pct.): 0%

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: EPFC-16-LP
Available
EPFC-16-LP

Steel Electric Powered Low Profile Floor Crane 1600 Lb. Capacity Yellow

The low profile electric powered floor crane is a safe and efficient way to lift and move equipment. With the push of a button, the unit raises and lowers loads. Its low profile design can be maneuvered in narrow and crowded warehouses. An included swivel hook with safety latch provides security during lifting. Poly-on-steel, steer and load wheels provide a smooth roll. The handle is both ergonomic and functional, featuring a throttle with infinite forward and reverse speed adjustments. Emergency reverse belly switch instantly reverses direction. Horn is also included.

  • Electromagnetic disc brake
  • Walk behind design
  • 24V internal battery
  • Battery level gauge and charger included
Dimensions: 30.125"W x 65.375"L x 75"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215372008 GTIN: 00691215372008
Warranty: -- Shipping Weight: 1064 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: CN
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 1,600 Arm Height (in.): 70 Drive Motor: DC24V
Battery Type: Acid Controls: Hand Swivel Caster QTY: 1
Swivel Caster Diameter (in.): 10 Swivel Caster Width (in.): 3-1/8 Rigid Caster QTY: 2
Rigid Caster Diameter (in.): 3-1/8 Rigid Caster Width (in.): 3 Caster Material: Poly on Steel
Caster Color: Red Handle Height (in.): 50 Handle Diameter (in.): 1-1/2
Handle Type: Drive Raised Arm Height (in.): 109-1/2 Overall Height (in.): 75
Overall Width (in.): 30-1/8 Overall Length (in.): 65-3/8 Lift Speed w/o Load (sec.): 0.70
Lift Speed w/Load (sec.): 0.50 Lower Down Speed w/o Load (sec.): 0.75 Lower Down Speed w/Load (sec.): 1
Travel Speed w/o Load (m/h): 2.7 Travel Speed w/Load (m/h): 1.8 Gradeability (pct.): 0%
