Model Details

FHA-4-8-10-ALO

Printer Friendly
FHA-4-8-10-ALO

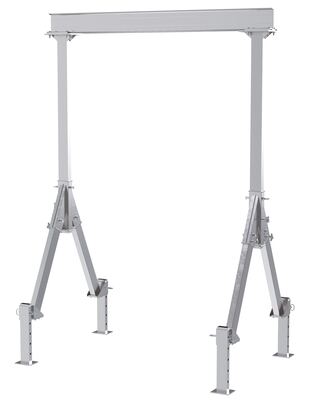

Aluminum Fixed Height Gantry Crane With Adjustable Leveling Option 8 ft. X 10 ft. 4000 lb. Capacity Silver

A fixed height aluminum gantry crane is a valuable asset in warehousing and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. The fixed height gives the user consistent familiarity when raising/lowering items. If a change in height is needed, the adjustable legs allow the crane to be raised or lowered in 4" increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support.

  • Leveling adjustment can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately
Total Ship Wt.(lbs.): 406 (only 1 package) Size: 64"W x 96"L x 134"H Color: Silver

Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 112 Raised Height (in.): 128
Base Plate Width (in.): 6 Base Plate Width (in.): 7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHA-4-8-10-ALO
FHA-4-8-10-ALO

Aluminum Fixed Height Gantry Crane With Adjustable Leveling Option 8 ft. X 10 ft. 4000 lb. Capacity Silver

A fixed height aluminum gantry crane is a valuable asset in warehousing and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. The fixed height gives the user consistent familiarity when raising/lowering items. If a change in height is needed, the adjustable legs allow the crane to be raised or lowered in 4" increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support.

  • Leveling adjustment can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately
Dimensions: 64"W x 96"L x 134"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215373678 GTIN: 00691215373678
Warranty: -- Shipping Weight: 406 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 4,000 Lowered Height (in.): 112 Raised Height (in.): 128
Base Plate Width (in.): 6 Base Plate Width (in.): 7
