Model Details

G6-18-B

G6-18-B

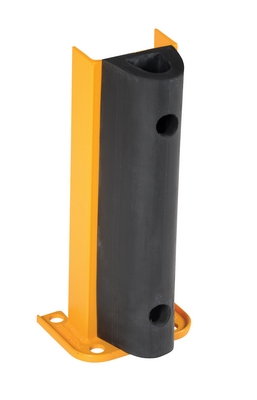

Steel Structural Rack Guard 7-3/4 In. x 8-1/16 In. x 18-1/4 In. Yellow

A structural Rack Guard with rubber bumper is the economical way to protect against damage to pallet racking and wall corners. Easy to install to concrete surface. Four (4) mounting holes for maximum stability. Installation hardware sold separately.

  • Heavy-duty steel "C" channel construction provides rugged long lasting use
  • Powder coat yellow provides an attractive safety finish
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Economical design provides safety at an affordable cost
Total Ship Wt.(lbs.): 25 (only 1 package) Size: 8.0625"W x 7.75"L x 18.25"H Color: Yellow

Construction Steel C Channel (in.): 6 C Channel Thickness (in.): 0.20 Usable Width (in.): 4-9/16
Usable Length (in.): 2-7/8 Mounting Hole (qty.): 4 Mounting Hole Size (in.): 5/8
Plate Width (in.): 8-1/16 Plate Length (in.): 6 Mounting Plate Thickness (in.): 1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: G6-18-B


G6-18-B

Steel Structural Rack Guard 7-3/4 In. x 8-1/16 In. x 18-1/4 In. Yellow

A structural Rack Guard with rubber bumper is the economical way to protect against damage to pallet racking and wall corners. Easy to install to concrete surface. Four (4) mounting holes for maximum stability. Installation hardware sold separately.

  • Heavy-duty steel "C" channel construction provides rugged long lasting use
  • Powder coat yellow provides an attractive safety finish
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Economical design provides safety at an affordable cost
Dimensions: 8.0625"W x 7.75"L x 18.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215021135 GTIN: 00691215021135
Warranty: -- Shipping Weight: 25 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Construction Steel C Channel (in.): 6 C Channel Thickness (in.): 0.20 Usable Width (in.): 4-9/16
Usable Length (in.): 2-7/8 Mounting Hole (qty.): 4 Mounting Hole Size (in.): 5/8
Plate Width (in.): 8-1/16 Plate Length (in.): 6 Mounting Plate Thickness (in.): 1/4
