Model Details

HDC-305-60-DC

Printer Friendly
HDC-305-60-DC

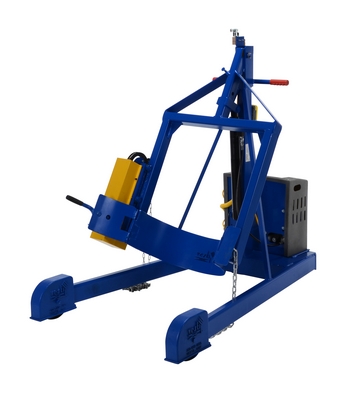

Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

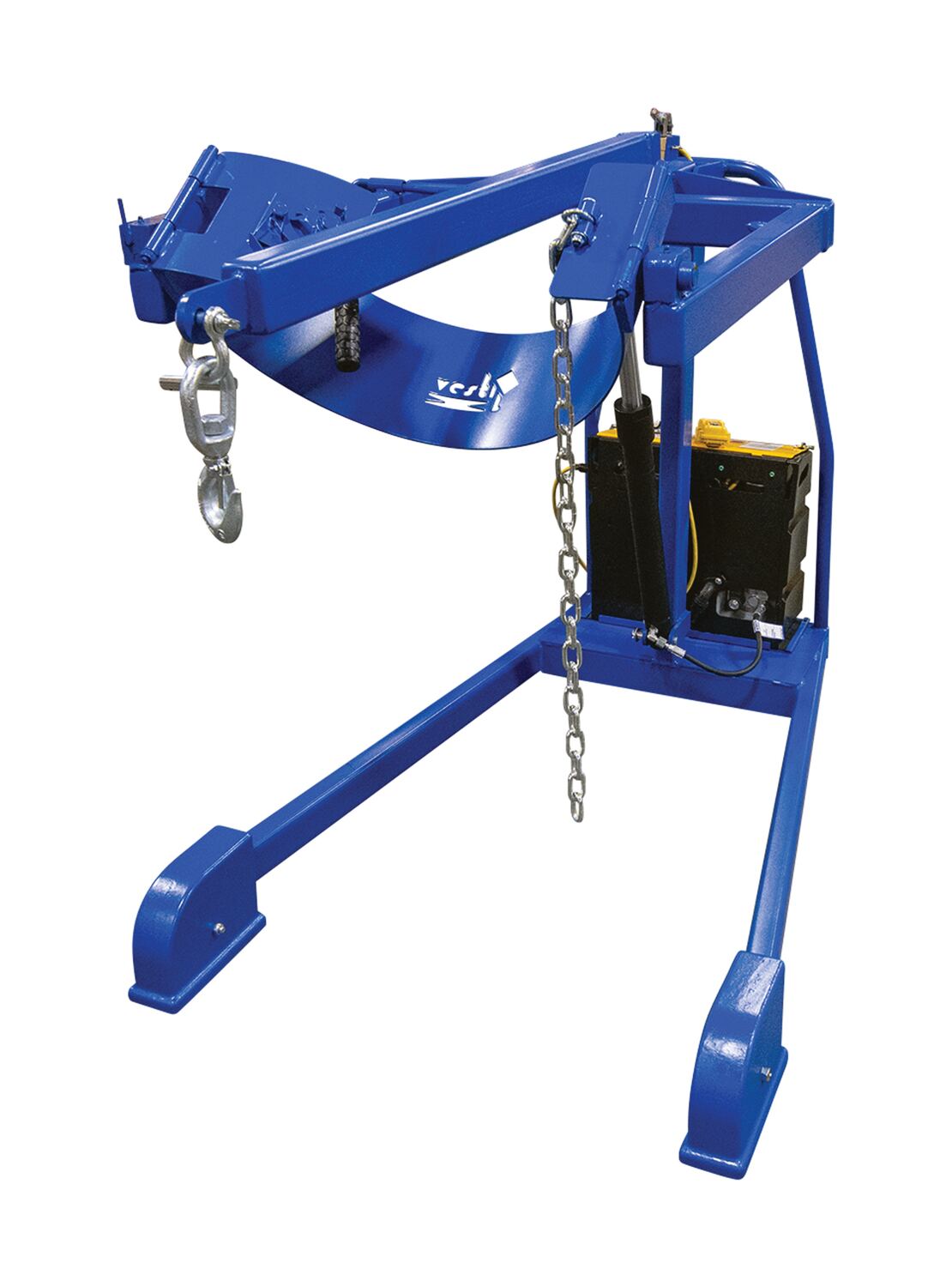

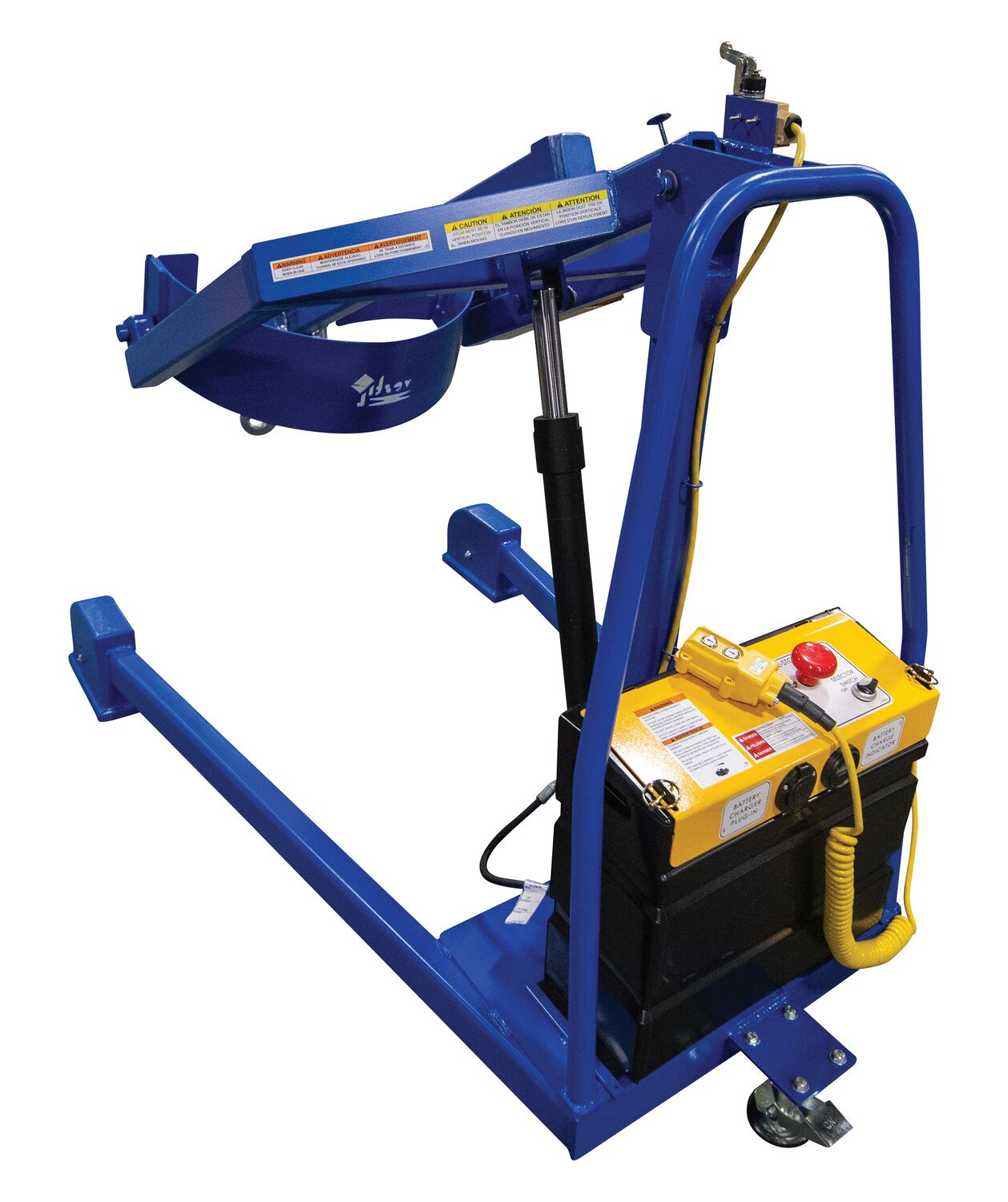

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is DC powered and rolls on casters. The hand crank rotates the drum. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction. Complies with cETLus certified battery charger.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 494 (only 1 package) Size: 46.875"W x 72.5"L x 80.125"H Color: Blue

Uniform Capacity (lb.): 800 Lift Height (in.): 59-11/16 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Lift Motor HP: 1 Lift Power Unit (volts): 12 Maximum Drum Diameter: 23.5
Minimum Drum Diameter: 20.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDC-305-60-DC
HDC-305-60-DC

Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is DC powered and rolls on casters. The hand crank rotates the drum. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction. Complies with cETLus certified battery charger.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Dimensions: 46.875"W x 72.5"L x 80.125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215022095 GTIN: 00691215022095
Warranty: -- Shipping Weight: 494 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 800 Lift Height (in.): 59-11/16 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Hand Crank
Lift Motor HP: 1 Lift Power Unit (volts): 12 Maximum Drum Diameter: 23.5
Minimum Drum Diameter: 20.5
