Model Details

HDC-305-96-DC

Printer Friendly
HDC-305-96-DC

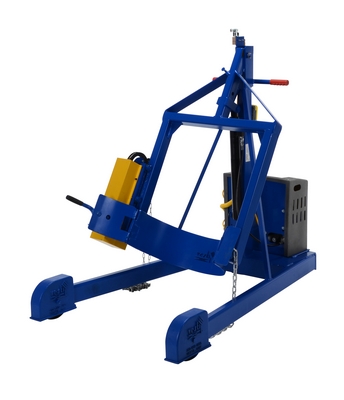

Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is DC powered and rolls on casters. This unit has a chain rotation to rotate the drum. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction. Complies with cETLus certified battery charger.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Total Ship Wt.(lbs.): 745 (only 1 package) Size: 49.1875"W x 104.125"L x 118"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 800 Lift Height (in.): 97-9/16 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Pull Chain
Lift Motor HP: 1 Lift Power Unit (volts): 12 Maximum Drum Diameter: 23.5
Minimum Drum Diameter: 20.5

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HDC-305-96-DC
HDC-305-96-DC

Steel Portable DC Powered Hydraulic Drum Carrier, Rotator and Boom 97-9/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. The lift operation is DC powered and rolls on casters. This unit has a chain rotation to rotate the drum. This unit features a lifting boom attachment which stores on the outriggers. Heavy-duty welded steel construction. Complies with cETLus certified battery charger.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Dimensions: 49.1875"W x 104.125"L x 118"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215022187 GTIN: 00691215022187
Warranty: -- Shipping Weight: 745 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 800 Lift Height (in.): 97-9/16 Accepts: 55-gallon steel drum
Drum Rotation (degree): 360 Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2 Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2 Rear Caster Material: Poly-on-Steel Rotation Method: Pull Chain
Lift Motor HP: 1 Lift Power Unit (volts): 12 Maximum Drum Diameter: 23.5
Minimum Drum Diameter: 20.5
