Model Details

MWP-440-M-SS

Printer Friendly
MWP-440-M-SS

Stainless Steel Manual Work Positioner 34 In. x 24-1/2 In. x 76 In. 440 Lb. Capacity Silver

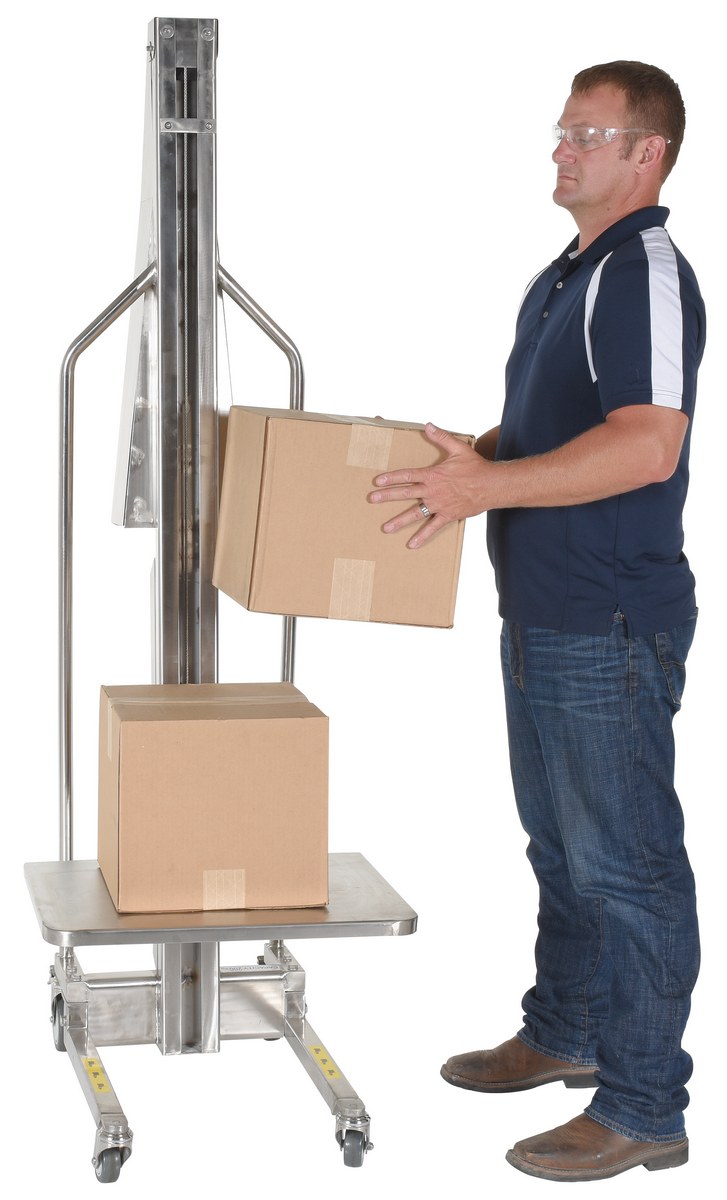

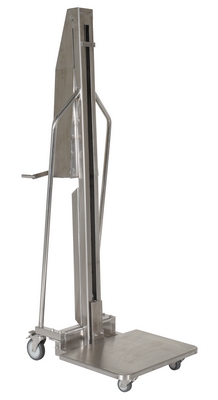

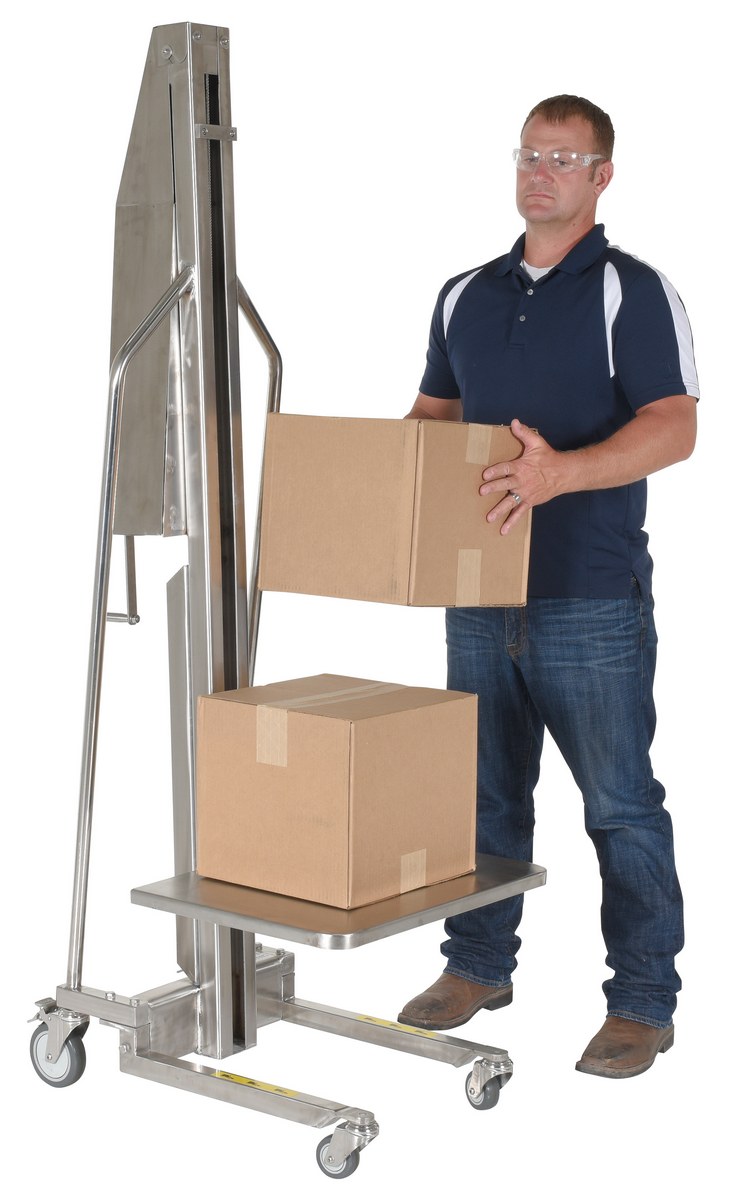

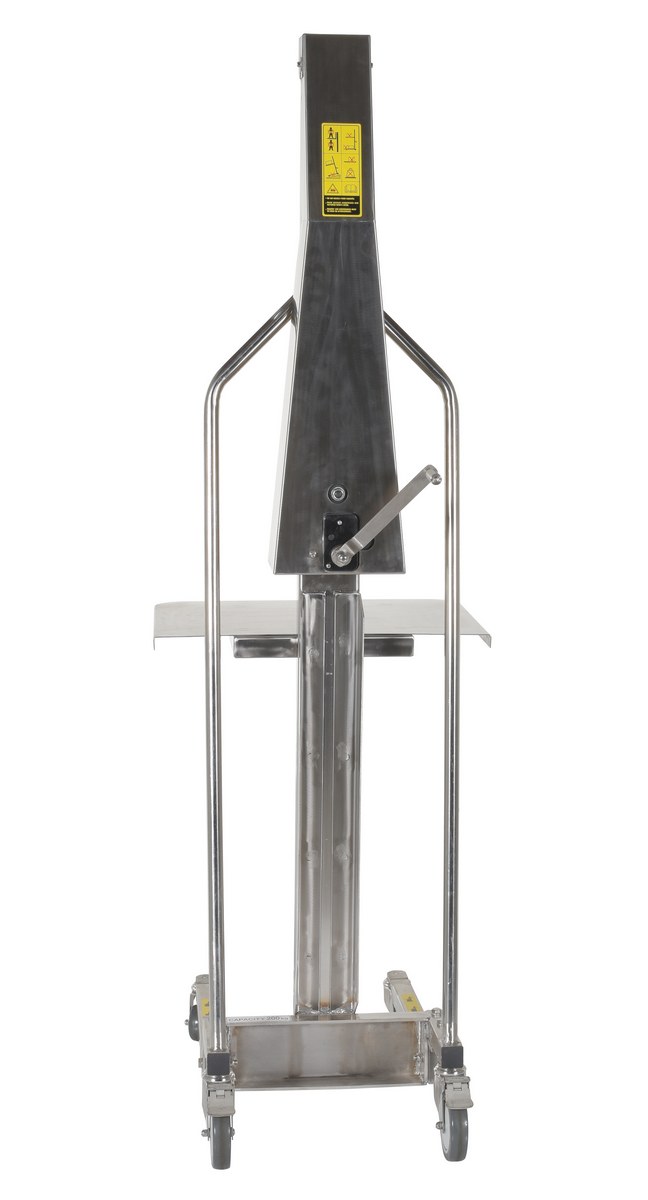

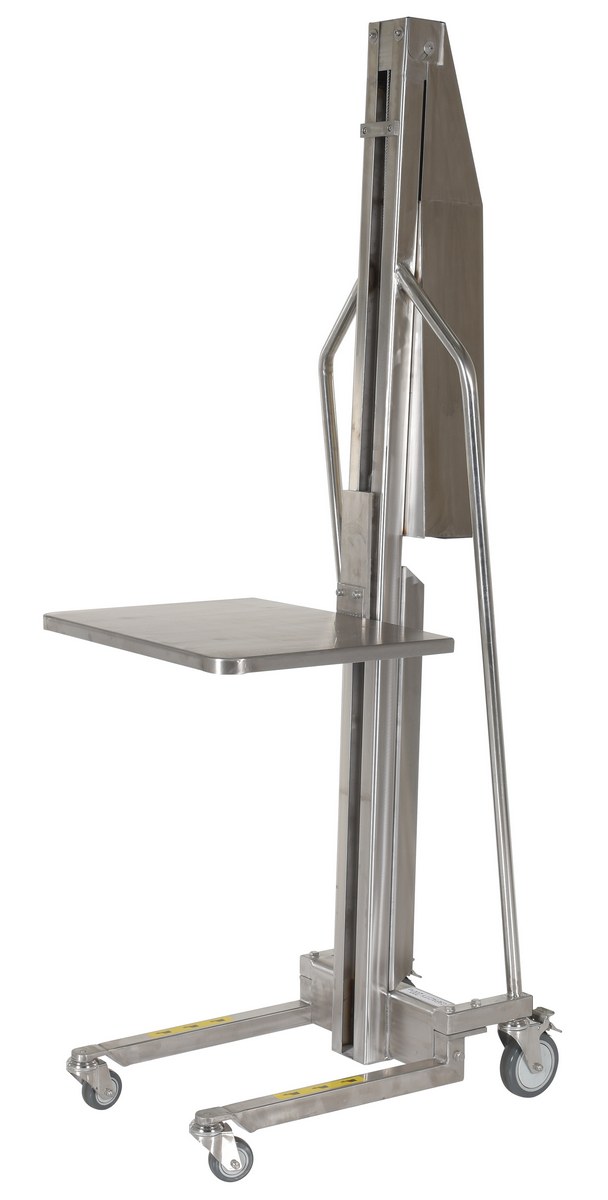

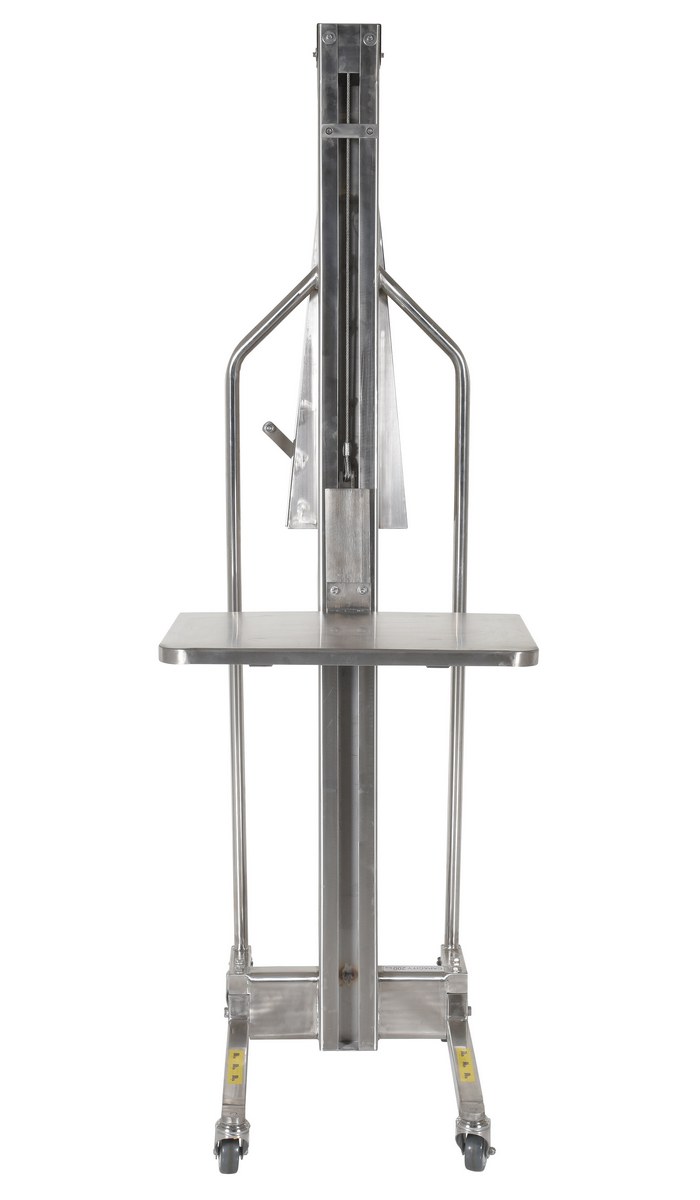

These lightweight lifts are designed to take the strain out of any lifting job. Ideal for use in narrow aisles and confined spaces. Platform height is adjustable with a manual hand winch. An auto brake system allows for controlled lowering. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard.

  • Large platform for handling an array of items
  • Compact design for tight areas
  • Hand crank lifting and lowering or precise positioning
  • Stainless steel construction limits corrosion
Total Ship Wt.(lbs.): 165 (only 1 package) Size: 24.5"W x 34"L x 76"H Color: Silver Non-Returnable

Uniform Capacity (lb.): 440 Platform Width (in.): 24-1/2 Platform Length (in.): 18-1/2
Lowered Height (in.): 5 Raised Height (in.): 60 Load Caster Quantity/Diameter (in.): (2) 3
Load Caster Type: Swivel Steer Caster Quantity/Diameter (in.): (2) 5 Steer Caster Type: Swivel Total Locking
Caster Material: Polyurethane Service Range (in.): 5-60 Rear Outrigger Height (in.): 8-1/2
Front Outrigger Height (in.): 5

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: MWP-440-M-SS
MWP-440-M-SS

Stainless Steel Manual Work Positioner 34 In. x 24-1/2 In. x 76 In. 440 Lb. Capacity Silver

These lightweight lifts are designed to take the strain out of any lifting job. Ideal for use in narrow aisles and confined spaces. Platform height is adjustable with a manual hand winch. An auto brake system allows for controlled lowering. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard.

  • Large platform for handling an array of items
  • Compact design for tight areas
  • Hand crank lifting and lowering or precise positioning
  • Stainless steel construction limits corrosion
Dimensions: 24.5"W x 34"L x 76"H Sell UOM: EA-Each Color: Silver
Material: 304 Stainless Steel UPC: 691215321884 GTIN: 00691215321884
Warranty: -- Shipping Weight: 165 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 440 Platform Width (in.): 24-1/2 Platform Length (in.): 18-1/2
Lowered Height (in.): 5 Raised Height (in.): 60 Load Caster Quantity/Diameter (in.): (2) 3
Load Caster Type: Swivel Steer Caster Quantity/Diameter (in.): (2) 5 Steer Caster Type: Swivel Total Locking
Caster Material: Polyurethane Service Range (in.): 5-60 Rear Outrigger Height (in.): 8-1/2
Front Outrigger Height (in.): 5
