MWP-550-DC

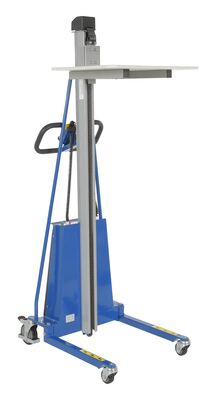

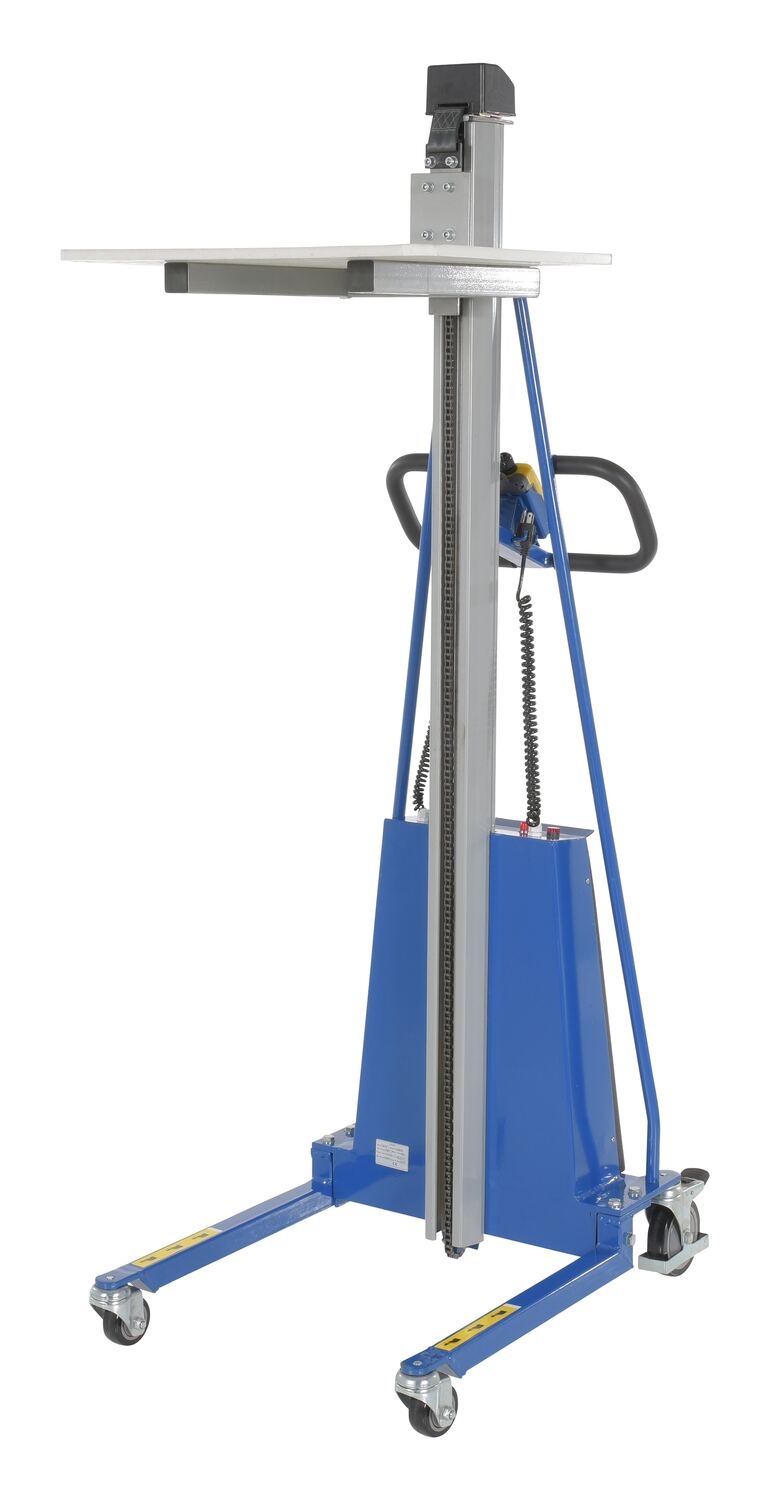

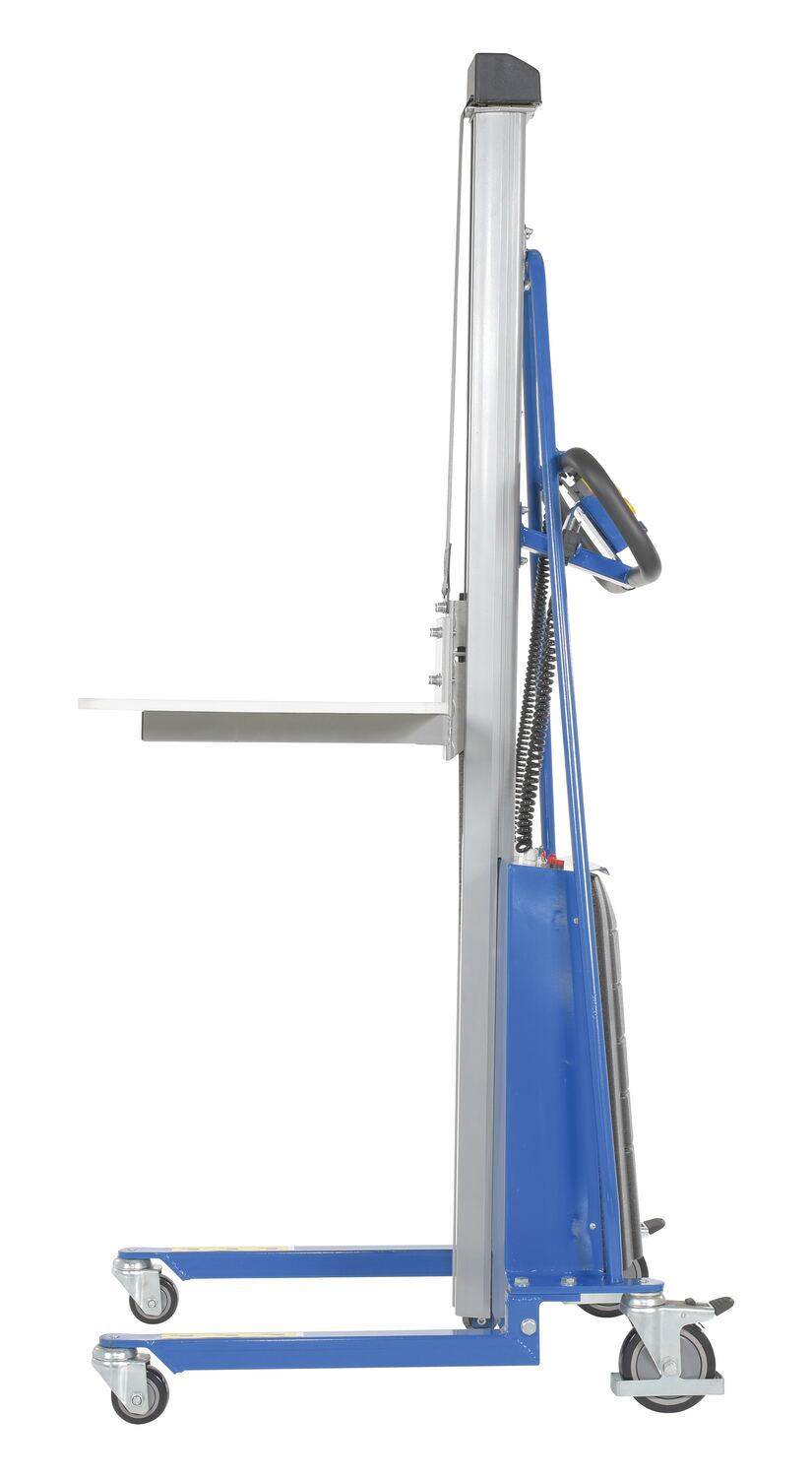

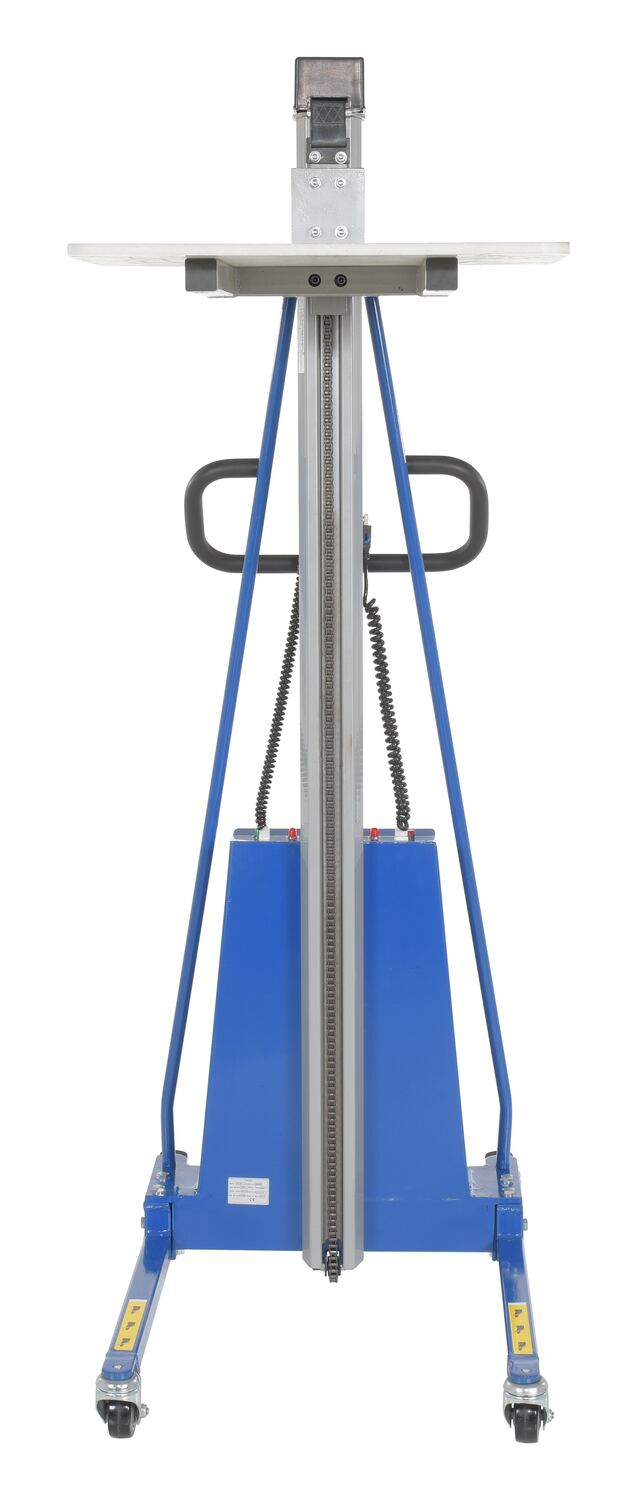

Steel DC Powered Work Positioner 35-1/2 In. x 23-5/8 In. x 79-1/2 In. 550 Lb. Capacity Blue

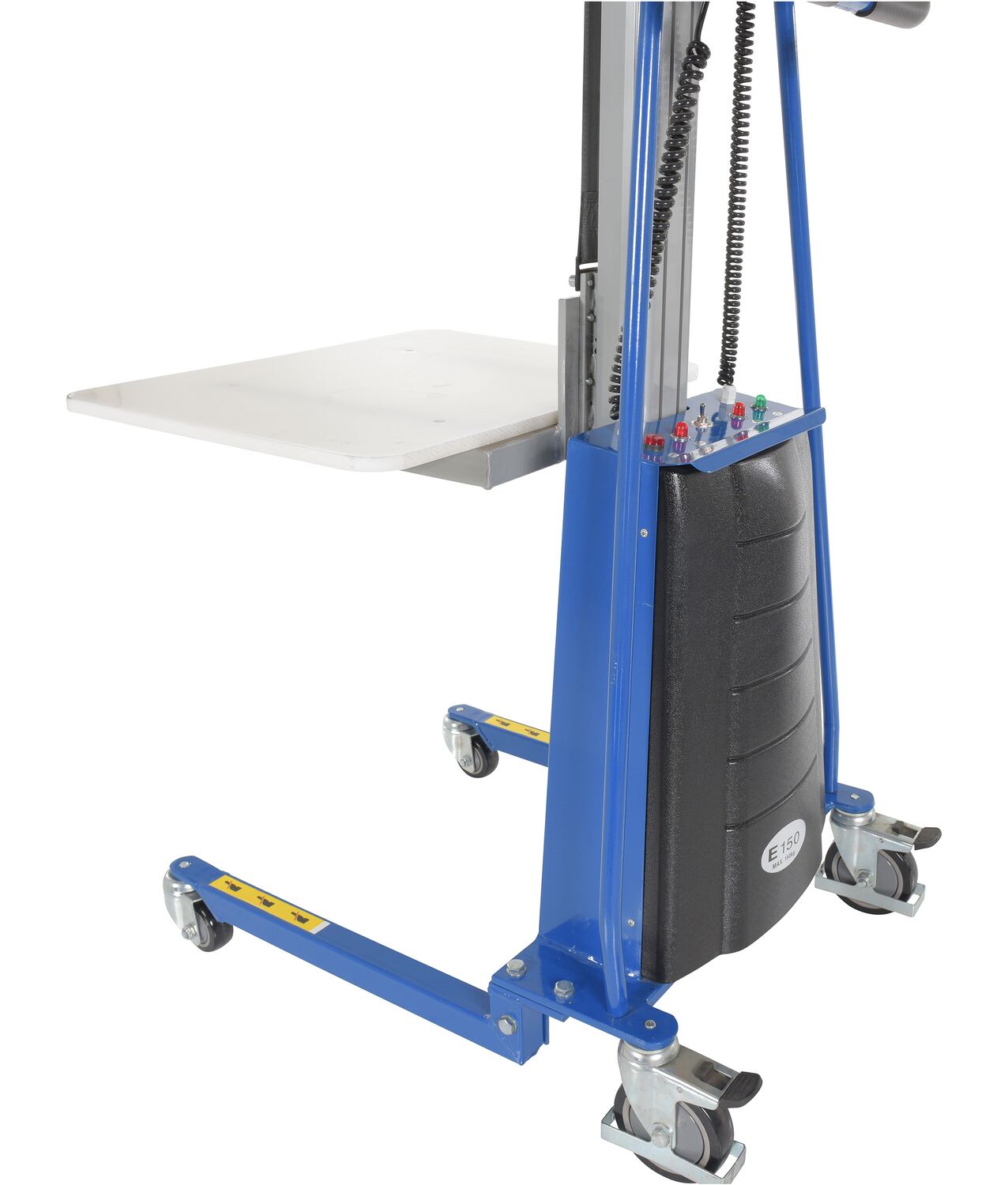

The Vestil work positioner takes the strain out of any lifting job! While many competitor models are big and bulky, the Vestil positioner is specifically built to go down narrow aisles and around confined spaces. With a platform height that is adjustable with a DC powered lift; getting to the perfect height is quick and easy. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Includes two (2) 12V AGM batteries with an integral battery charger.

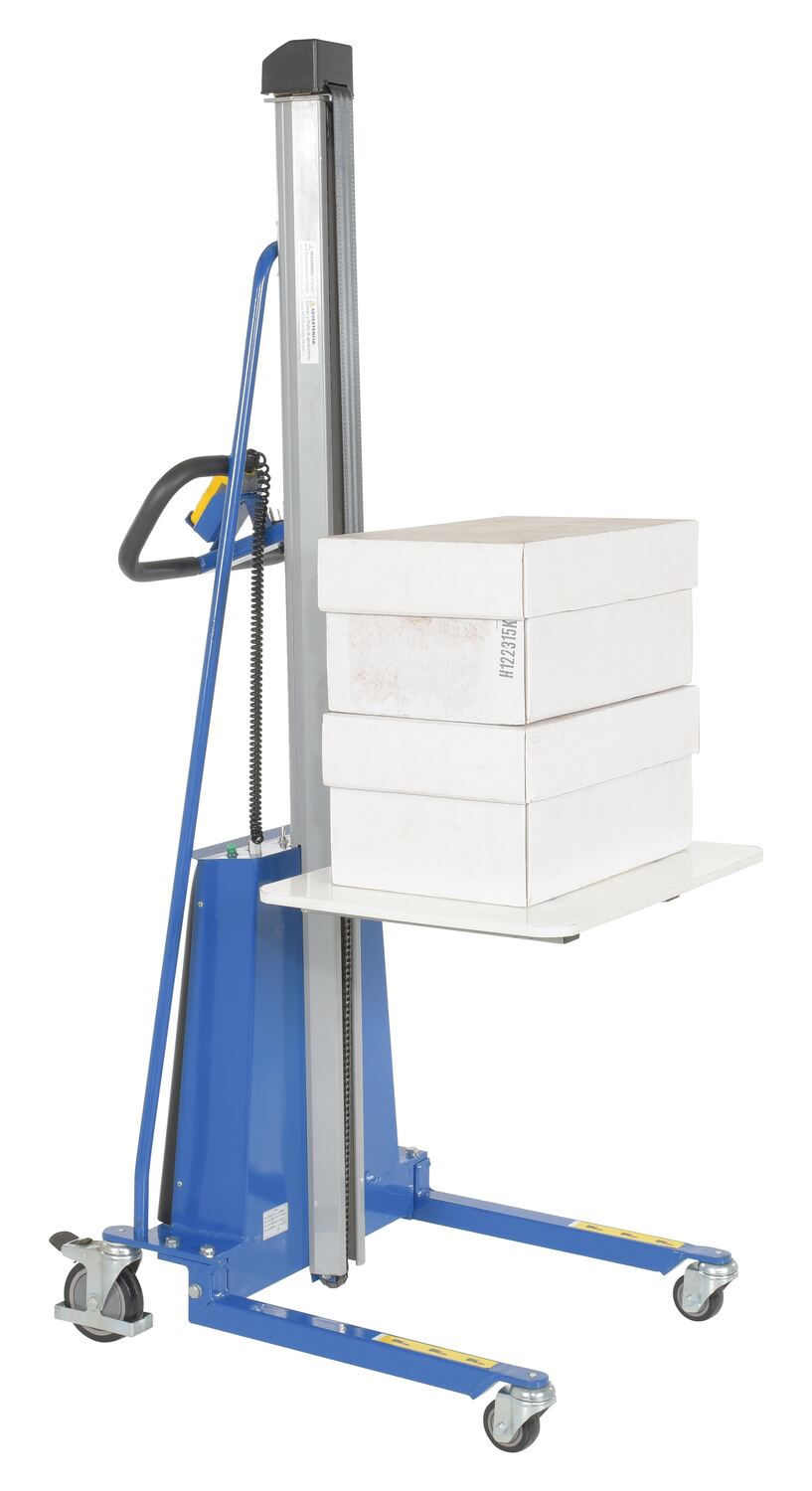

  • Large open sided platform handles an array of items
  • Auto brake system for controlled lowering

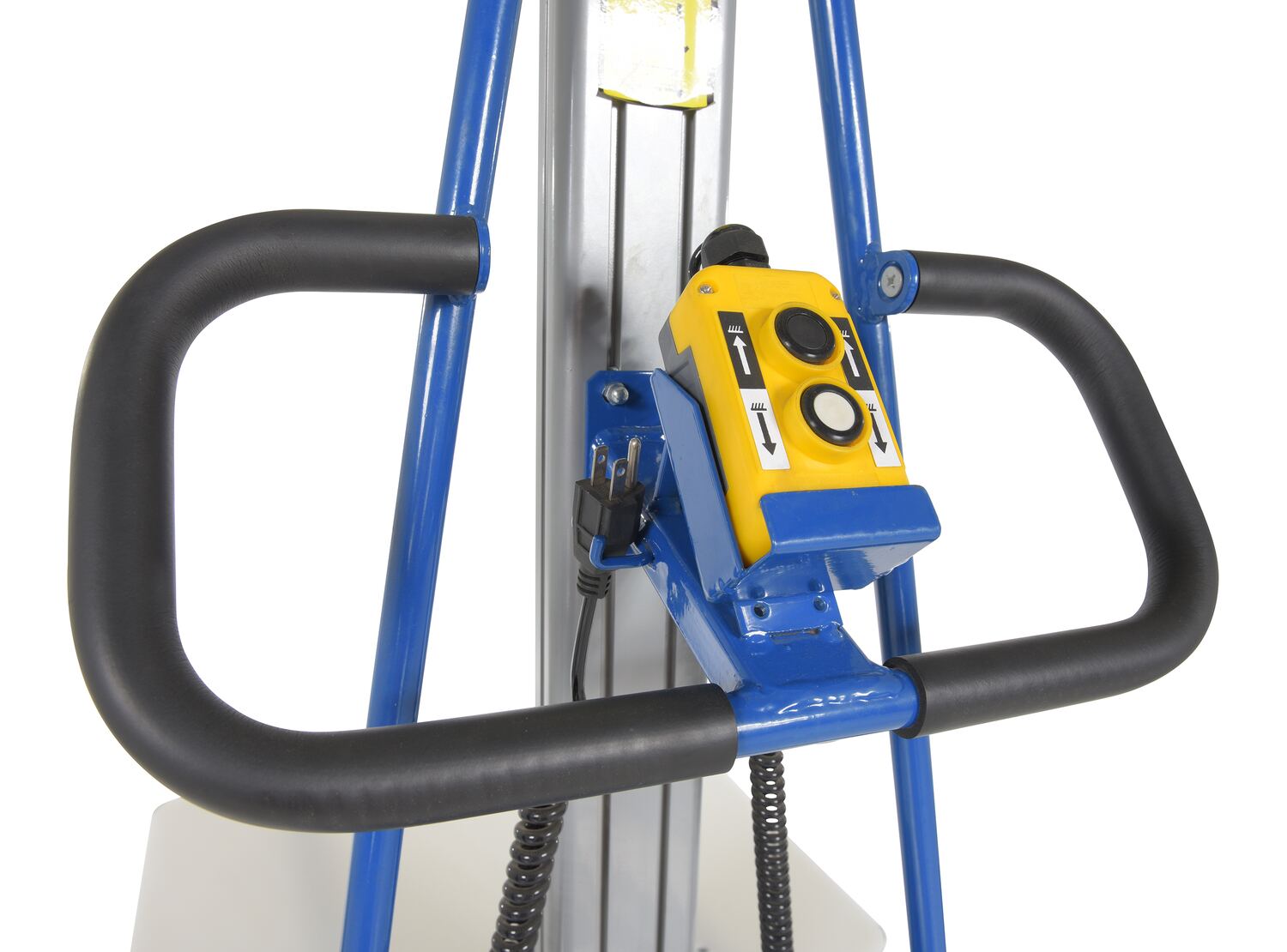

  • Manually driven for precise positioning
  • Smooth surface to limit product abrasion
Total Ship Wt.(lbs.): 254 (only 1 package) Size: 23.625"W x 35.5"L x 79.5"H Color: Blue

Uniform Capacity (lb.): 550 Platform Width (in.): 23-5/8 Platform Length (in.): 18-1/2
Lowered Height (in.): 5-1/4 Raised Height (in.): 67 Load Caster Quantity/Diameter (in.): (2) 3
Load Caster Type: Swivel Steer Caster Quantity/Diameter (in.): (2) 5 Steer Caster Type: Swivel Total Locking
Caster Material: Polyurethane Power: (2) 12V AGM

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: MWP-550-DC
MWP-550-DC

Steel DC Powered Work Positioner 35-1/2 In. x 23-5/8 In. x 79-1/2 In. 550 Lb. Capacity Blue

The Vestil work positioner takes the strain out of any lifting job! While many competitor models are big and bulky, the Vestil positioner is specifically built to go down narrow aisles and around confined spaces. With a platform height that is adjustable with a DC powered lift; getting to the perfect height is quick and easy. Two (2) 3" swivel load casters and two (2) 5" total locking swivel steering polyurethane casters standard. Includes two (2) 12V AGM batteries with an integral battery charger.

  • Large open sided platform handles an array of items
  • Auto brake system for controlled lowering
  • Manually driven for precise positioning
  • Smooth surface to limit product abrasion
Dimensions: 23.625"W x 35.5"L x 79.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215320429 GTIN: 00691215320429
Warranty: -- Shipping Weight: 254 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 550 Platform Width (in.): 23-5/8 Platform Length (in.): 18-1/2
Lowered Height (in.): 5-1/4 Raised Height (in.): 67 Load Caster Quantity/Diameter (in.): (2) 3
Load Caster Type: Swivel Steer Caster Quantity/Diameter (in.): (2) 5 Steer Caster Type: Swivel Total Locking
Caster Material: Polyurethane Power: (2) 12V AGM
