S-118-FF-DM

Printer Friendly
Available
S-118-FF-DM
S-118-FF-DM S-118-FF-DM S-118-FF-DM S-118-FF-DM

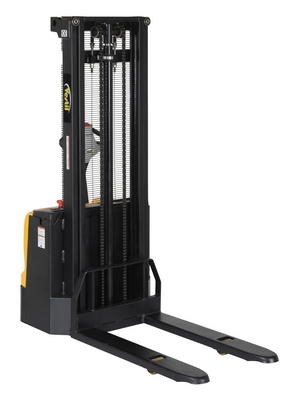

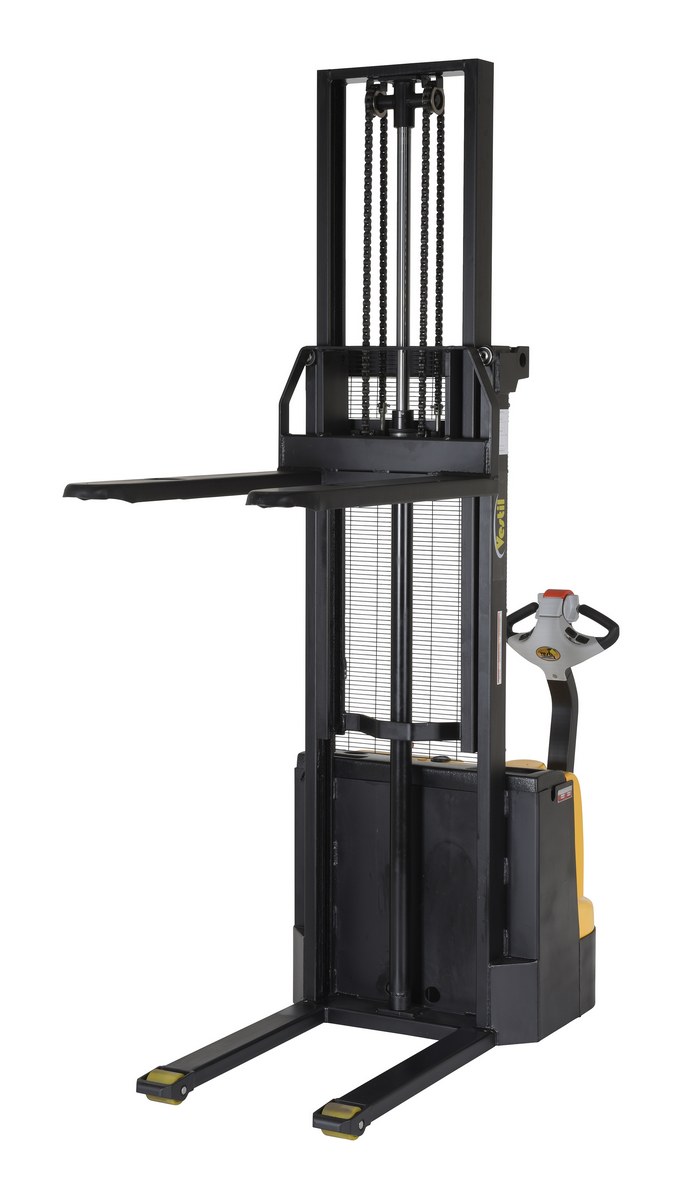

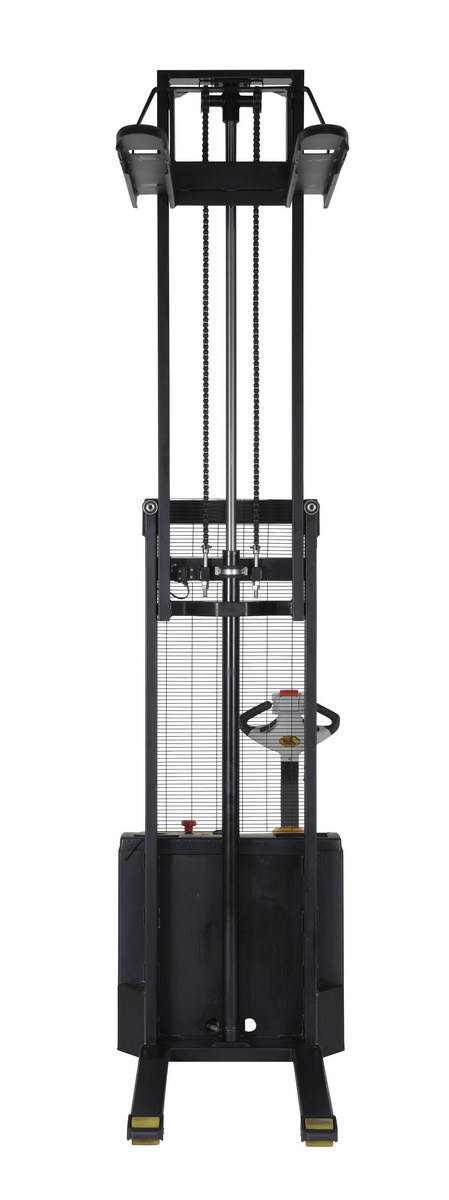

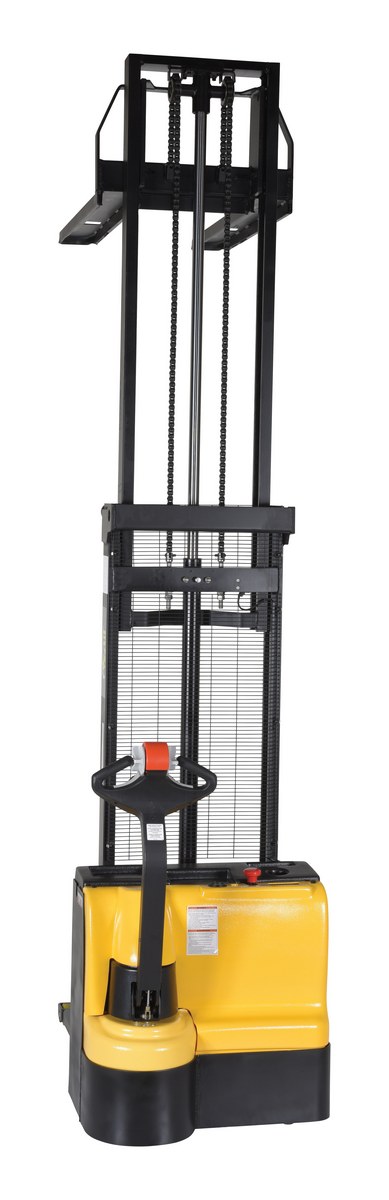

Steel Fixed Forks Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries. .A battery charger, gauge and horn are included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Assembled Wt.(lbs.): 1091 Assembled Size: 31.5"W x 70.875"L x 78.75"H

Total Ship Wt.(lbs.): 1330 (only 1 package) Package 1 Size: 36"W x 85"D x 87"H Color: Yellow / Black Non-Returnable

Uniform Capacity at 0 - 62" (lb.): 2,200 Uniform Capacity at 62 - 118" (lb.): 1,500 Service Range (in.): 3-3/8 to 118
Fork Width/Length (in.): 5-9/10 x 42-1/8 Fixed Fork Spacing (in.): 26-3/4 (OD) Fixed Leg Spacing (in.): 26-3/4 (OD)
Overall Mast Height - Retracted (in.): 78-3/4 Overall Mast Height - Extended (in.): 141-3/8 Drive Motor: 24V / 0.7 KW
Lift Motor: 24V / 2.0 KW Battery: (2) 12V / 70~85 Ah Battery Charger: 24V / 10 amps
Operation Time with Constant Use (hrs.): 3 to 4 Operation Time with Intermittent Use (hrs.): 8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: S-118-FF-DM
Available
S-118-FF-DM

Steel Fixed Forks Double Mast Stacker 118 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries. .A battery charger, gauge and horn are included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 31.5"W x 70.875"L x 78.75"H Sell UOM: -- Color: Yellow / Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1330 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 62" (lb.): 2,200 Uniform Capacity at 62 - 118" (lb.): 1,500 Service Range (in.): 3-3/8 to 118
Fork Width/Length (in.): 5-9/10 x 42-1/8 Fixed Fork Spacing (in.): 26-3/4 (OD) Fixed Leg Spacing (in.): 26-3/4 (OD)
Overall Mast Height - Retracted (in.): 78-3/4 Overall Mast Height - Extended (in.): 141-3/8 Drive Motor: 24V / 0.7 KW
Lift Motor: 24V / 2.0 KW Battery: (2) 12V / 70~85 Ah Battery Charger: 24V / 10 amps
Operation Time with Constant Use (hrs.): 3 to 4 Operation Time with Intermittent Use (hrs.): 8
