Model Details

← All Products- ← Ergonomic Solutions- ← Stackers -← Double Mast Stackers with Powered Drive and Powered Lift- S-125-AA-DM

S-125-AA-DM

Printer Friendly
Available
S-125-AA-DM
S-125-AA-DM S-125-AA-DM S-125-AA-DM S-125-AA-DM S-125-AA-DM S-125-AA-DM

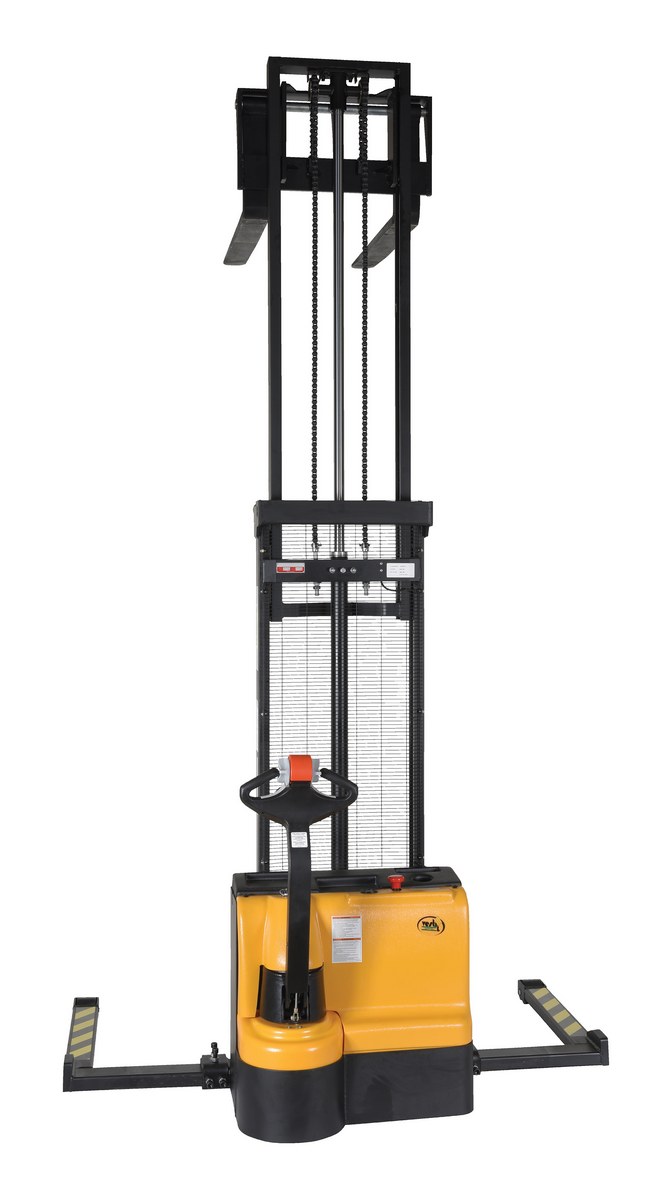

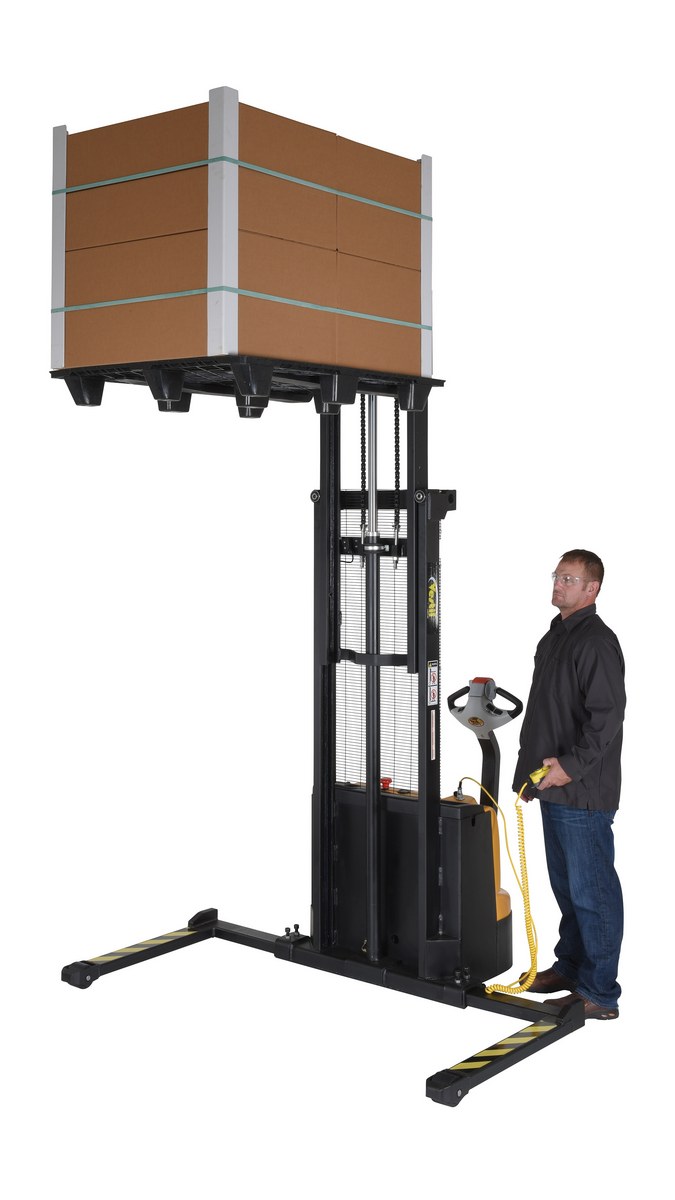

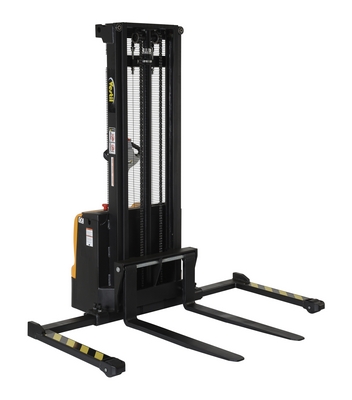

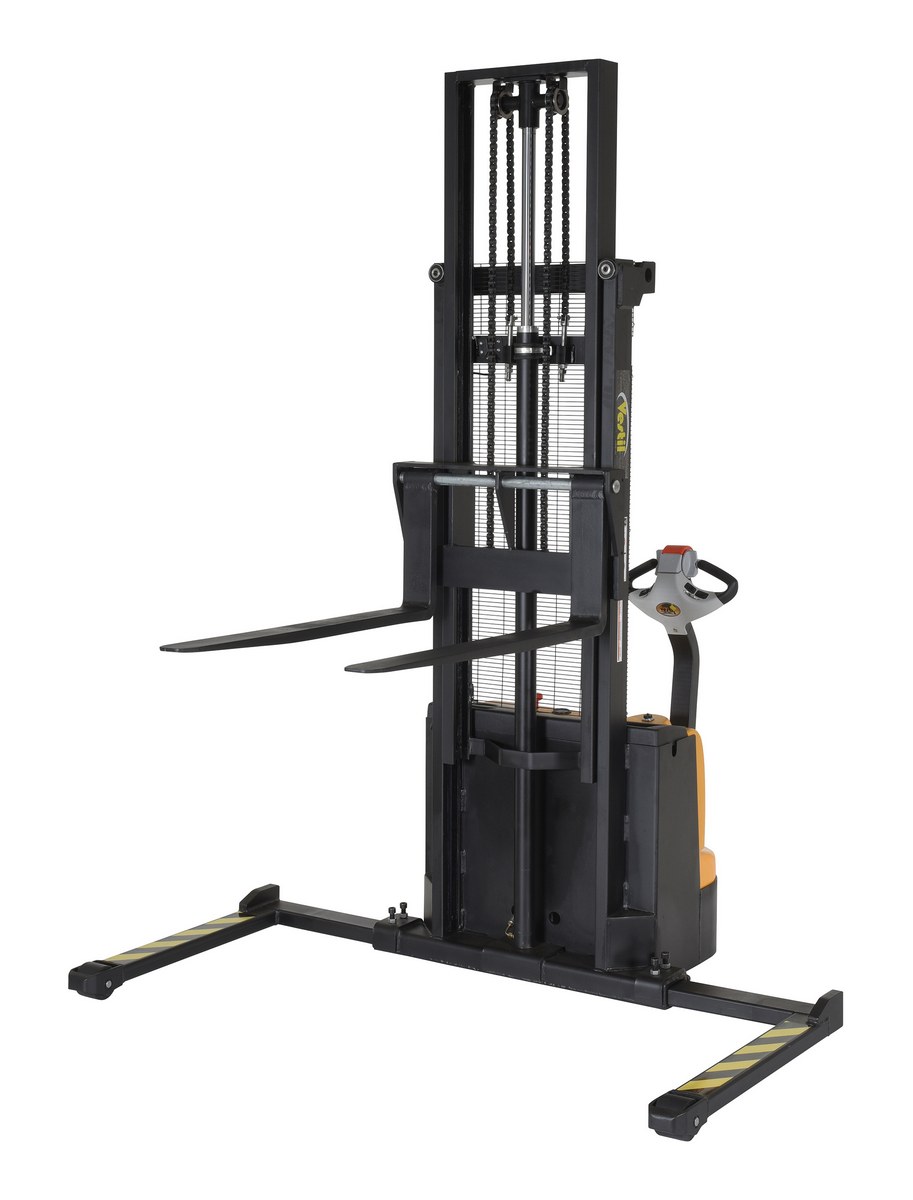

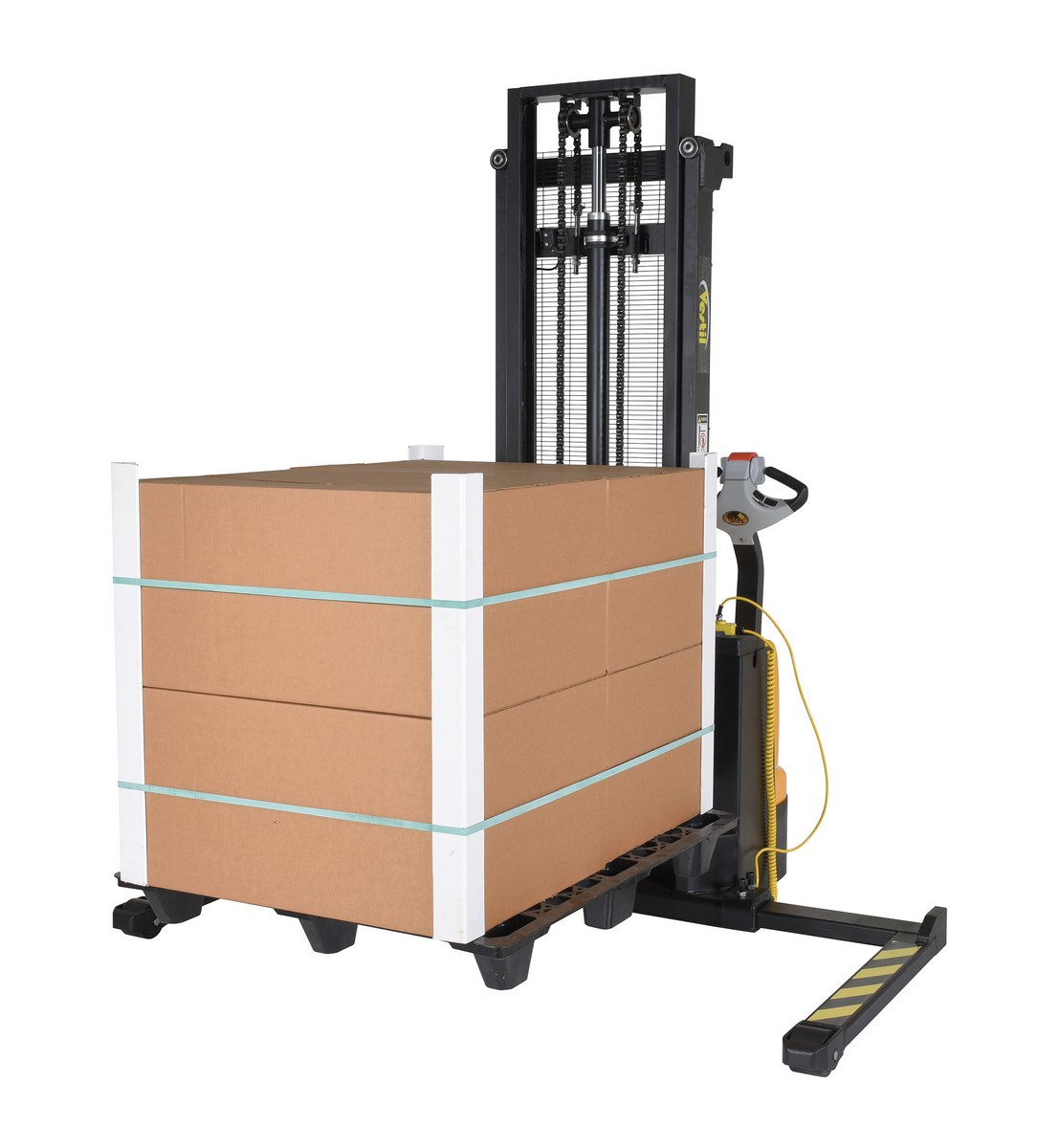

Steel Adjustable Double Mast Stacker 125 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Assembled Wt.(lbs.): 1190 Assembled Size: 50"W x 69"L x 82.5"H

Total Ship Wt.(lbs.): 1482 (only 1 package) Package 1 Size: 60"W x 64"D x 77"H Color: Yellow / Black

Uniform Capacity at 0 - 62" (lb.): 2,200 Uniform Capacity at 62 - 125" (lb.): 1,500 Service Range (in.): 2-1/8 to 125
Fork Width/Length (in.): 4 x 42-1/8 Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD) Adjustable Leg Spacing (in.): 40 to 50 (ID)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: S-125-AA-DM
Available
S-125-AA-DM

Steel Adjustable Double Mast Stacker 125 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 50"W x 69"L x 82.5"H Sell UOM: -- Color: Yellow / Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1482 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 62" (lb.): 2,200 Uniform Capacity at 62 - 125" (lb.): 1,500 Service Range (in.): 2-1/8 to 125
Fork Width/Length (in.): 4 x 42-1/8 Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD) Adjustable Leg Spacing (in.): 40 to 50 (ID)
