S-150-AA-DM

Printer Friendly
Available
S-150-AA-DM
S-150-AA-DM S-150-AA-DM S-150-AA-DM S-150-AA-DM S-150-AA-DM

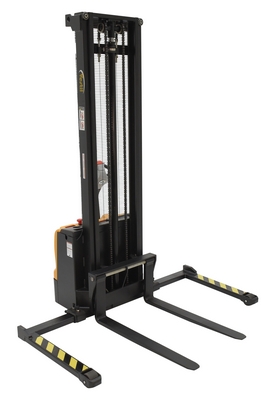

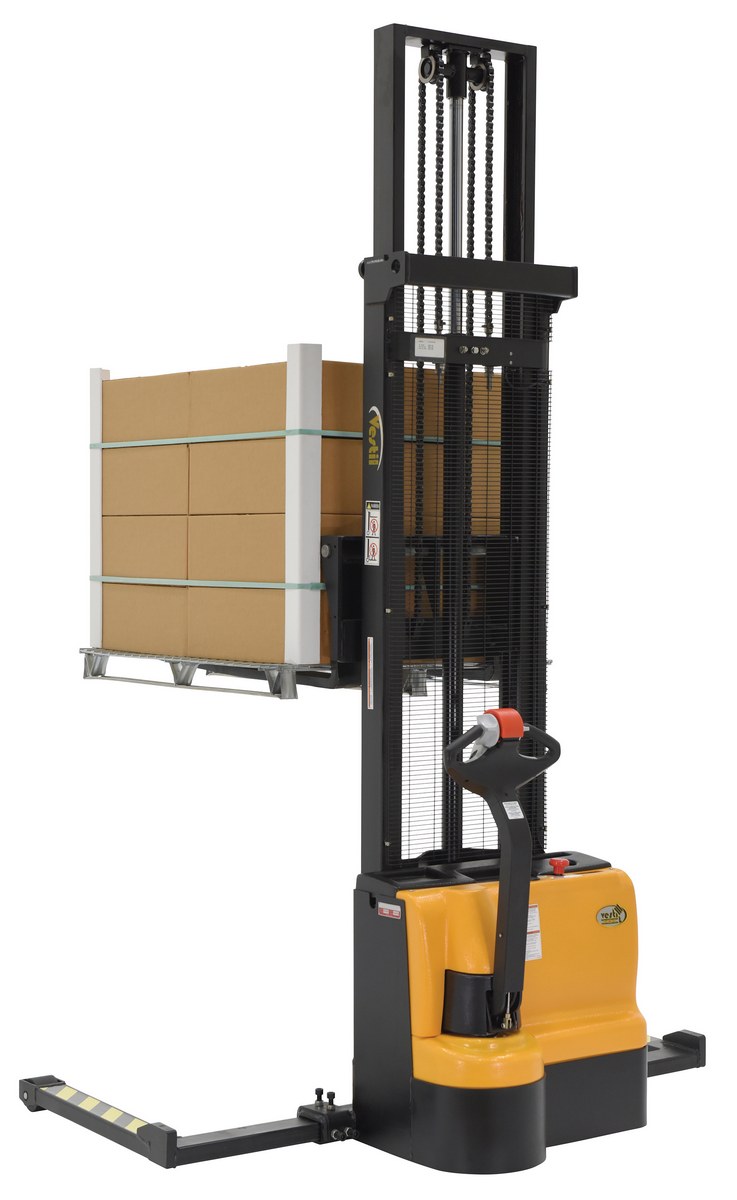

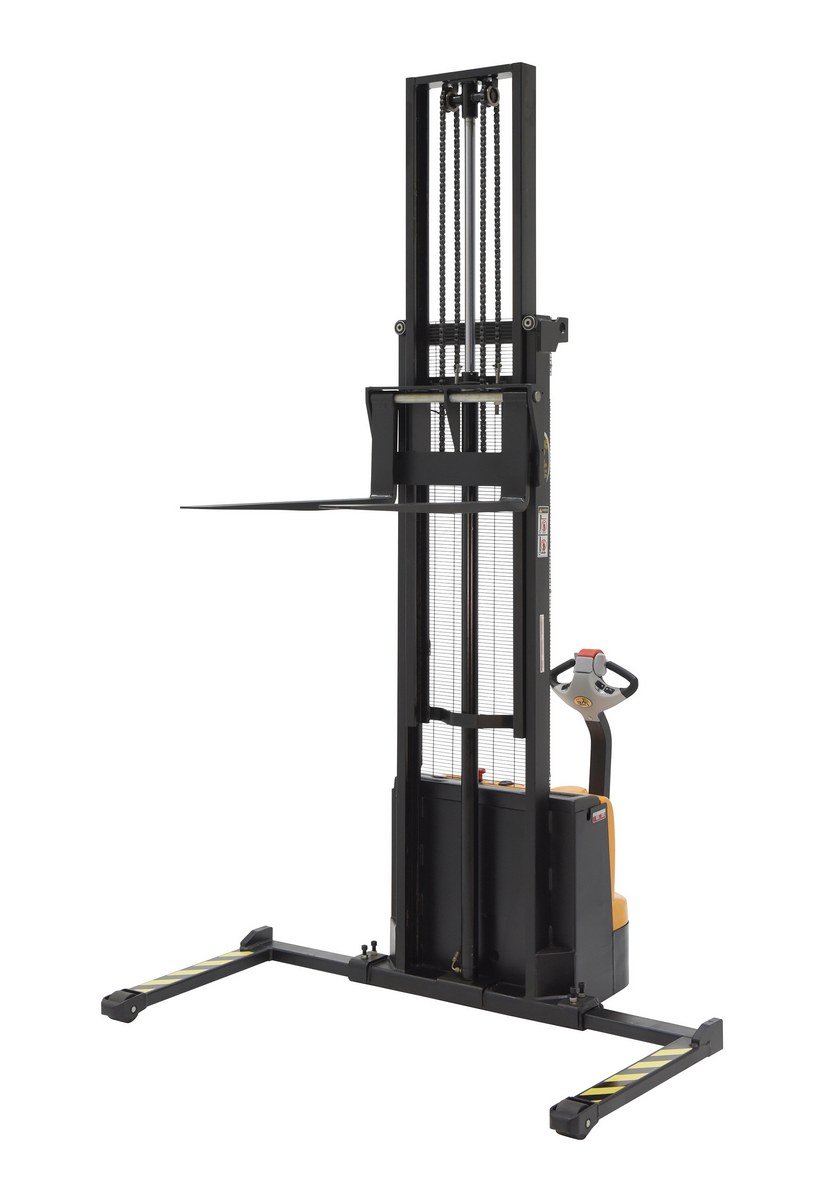

Steel Adjustable Double Mast Stacker 150 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Assembled Wt.(lbs.): 1290 Assembled Size: 48"W x 72.25"L x 98.5"H

Total Ship Wt.(lbs.): 1582 (only 1 package) Package 1 Size: 60"W x 76"D x 103"H Color: Yellow / Black

Uniform Capacity at 0 - 62" (lb.): 2,200 Uniform Capacity at 62 - 118" (lb.): 1,500 Uniform Capacity at 118 - 150" (lb.): 1,000
Service Range (in.): 2-1/8 to 150 Fork Width/Length (in.): 4 x 42-1/8 Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.): 40 to 50 (ID) Overall Mast Height - Retracted (in.): 98-1/2 Overall Mast Height - Extended (in.): 171-17/20
Drive Motor: DC 24V Lift Motor: DC 24V Battery: (2) 12V
Drive Wheel Diameter/Width (in.): 10 x 4 Front Wheel Diameter/Width (in.): 4 x 2-9/10 Stabilizer Wheel Diameter/Width (in.): 6 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: S-150-AA-DM
Available
S-150-AA-DM

Steel Adjustable Double Mast Stacker 150 In. Raised Height 2200 Lb. Capacity Black / Yellow

Double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two lead acid deep cycle batteries, integral battery charger, and battery level gauge. Horn included. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently.

  • Emergency reverse belly switch instantly reverses direction
  • Powered unit to minimize manual labor
  • Diminishes amount of bending and twisting
  • Simple movement controls
Dimensions: 48"W x 72.25"L x 98.5"H Sell UOM: -- Color: Yellow / Black
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1582 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 62" (lb.): 2,200 Uniform Capacity at 62 - 118" (lb.): 1,500 Uniform Capacity at 118 - 150" (lb.): 1,000
Service Range (in.): 2-1/8 to 150 Fork Width/Length (in.): 4 x 42-1/8 Adjustable Fork Spacing (in.): 8-3/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.): 40 to 50 (ID) Overall Mast Height - Retracted (in.): 98-1/2 Overall Mast Height - Extended (in.): 171-17/20
Drive Motor: DC 24V Lift Motor: DC 24V Battery: (2) 12V
Drive Wheel Diameter/Width (in.): 10 x 4 Front Wheel Diameter/Width (in.): 4 x 2-9/10 Stabilizer Wheel Diameter/Width (in.): 6 x 2
