Model Details

← All Products- ← Ergonomic Solutions- ← Stackers -← Counter-Balanced Powered Drive Lifts- S-2CB-118

S-2CB-118

Printer Friendly
Available
S-2CB-118
S-2CB-118 S-2CB-118 S-2CB-118 S-2CB-118 S-2CB-118 S-2CB-118

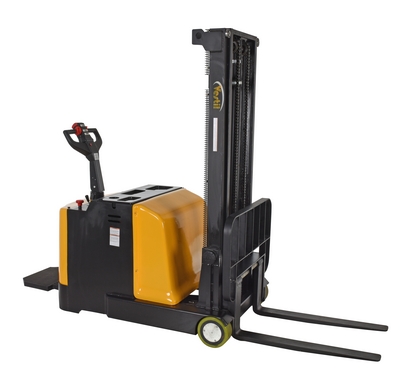

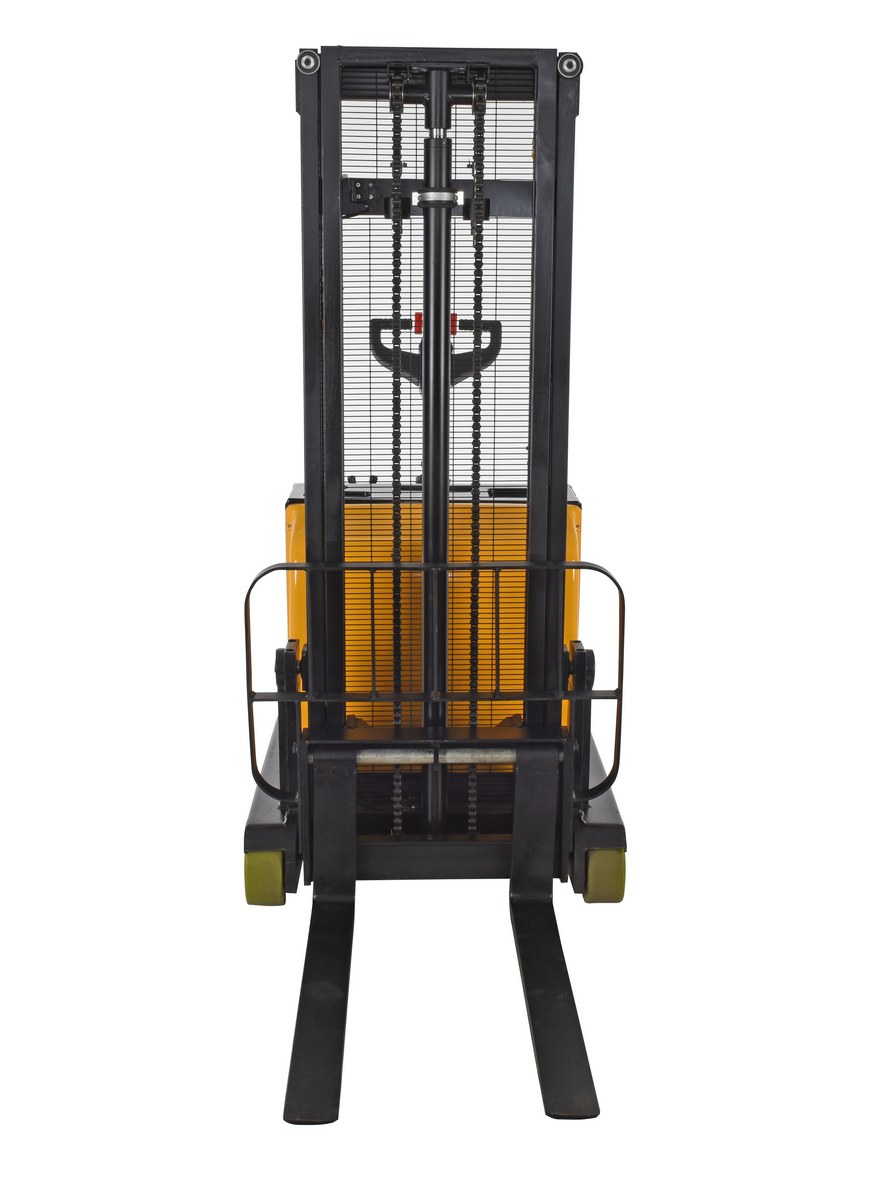

Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift also includes batteries, an integral battery charger, and battery level gauge. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

  • Simple controls for quick movement
  • Walk behind style for ergonomic posture
  • Ability to raise to high levels of workspace
  • Poly-on-steel steer and load wheels
Assembled Wt.(lbs.): 2654 Assembled Size: 35.5"W x 110"L x 78"H

Total Ship Wt.(lbs.): 2652 (only 1 package) Package 1 Size: 36"W x 101"D x 82"H Color: Black / Yellow

Uniform Capacity at 0 - 62" (lb.): 2,000 Uniform Capacity at 62 - 118" (lb.): 1,000 Service Range (in.): 2 to 118
Fork Width/Length (in.): 4 x 36-1/4 Adjustable Fork Spacing (in.): 8-3/8 to 23-1/4 Drive Motor: 24V / 1 KW
Lift Motor: 24V / 2 KW Battery: (2) 12V / 135 Ah Battery Charger: 24V / 12 amp
Operation Time with Constant Use (hrs.): 3 to 4 Operation Time with Intermittent Use (hrs.): 8 Travel Speed - Unloaded (MPH): 3.43
Travel Speed - Loaded (MPH): 2.8 Platform Ground Clearance (in.): 1-1/2 Load Center (in.): 19
Mast Style: Telescopic Lift Speed w/o Load: 5.9" / sec Lift Speed w/ Load: 2.95" / sec
Lower Speed w/o Load: 4" / sec Lower Speed w/ Load: 3.15" / sec

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: S-2CB-118
Available
S-2CB-118

Steel Counter Balanced Powered Drive Lift 2 In. to 118 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift also includes batteries, an integral battery charger, and battery level gauge. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

  • Simple controls for quick movement
  • Walk behind style for ergonomic posture
  • Ability to raise to high levels of workspace
  • Poly-on-steel steer and load wheels
Dimensions: 35.5"W x 110"L x 78"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 2652 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity at 0 - 62" (lb.): 2,000 Uniform Capacity at 62 - 118" (lb.): 1,000 Service Range (in.): 2 to 118
Fork Width/Length (in.): 4 x 36-1/4 Adjustable Fork Spacing (in.): 8-3/8 to 23-1/4 Drive Motor: 24V / 1 KW
Lift Motor: 24V / 2 KW Battery: (2) 12V / 135 Ah Battery Charger: 24V / 12 amp
Operation Time with Constant Use (hrs.): 3 to 4 Operation Time with Intermittent Use (hrs.): 8 Travel Speed - Unloaded (MPH): 3.43
Travel Speed - Loaded (MPH): 2.8 Platform Ground Clearance (in.): 1-1/2 Load Center (in.): 19
Mast Style: Telescopic Lift Speed w/o Load: 5.9" / sec Lift Speed w/ Load: 2.95" / sec
Lower Speed w/o Load: 4" / sec Lower Speed w/ Load: 3.15" / sec
