The stacker with powered drive and powered lift is a fully powered electric stacker that transports loads throughout warehouse facilities quickly and with less effort. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The power lifter features a lead acid deep cycle battery, integral battery charger, and a battery level gauge. The stacker rolls smoothly on poly-on-steel steer and load wheels.
| Uniform Capacity (lb.): 2,000 | Service Range (in.): 2-1/8 to 62 | Fork Width/Length (in.): 4 x 42 |
| Adjustable Fork Spacing (in.): 8 to 26-3/4 (OD) | Adjustable Leg Spacing (in.): 38-3/16 to 50 (ID) | Overall Mast Height (in.): 78 |
| Drive Motor: DC 24V / 0.7 KW | Lift Motor: DC 24V / 2.0 KW | Battery: (2) 12V / 95 Ah |
| Battery Charger: DC 24V / 6 amp | Operation Time with Constant Use (hrs.): 3 to 4 | Operation Time with Intermittent Use (hrs.): 8 |
| Drive Wheel Qty./Diameter/Width (in.): (1) 10 x 3-3/8 | Front Wheel Qty./Diameter/Width (in.): (2) 4 x 2.9 | Stabilizer Wheel Qty./Diameter/Width (in.): (2) 3 x 1.4 |
| Wheel Material: Poly-on-Steel | Travel Speed - Loaded (MPH): 3.1 | Travel Speed - Unloaded (MPH): 3.8 |
Quickship Item?
Can It Ship UPS/FedEx?
PDF Documents
Details For Model: S-62-AA |
|||||||||||||||||||||||||||||||||||
Available |

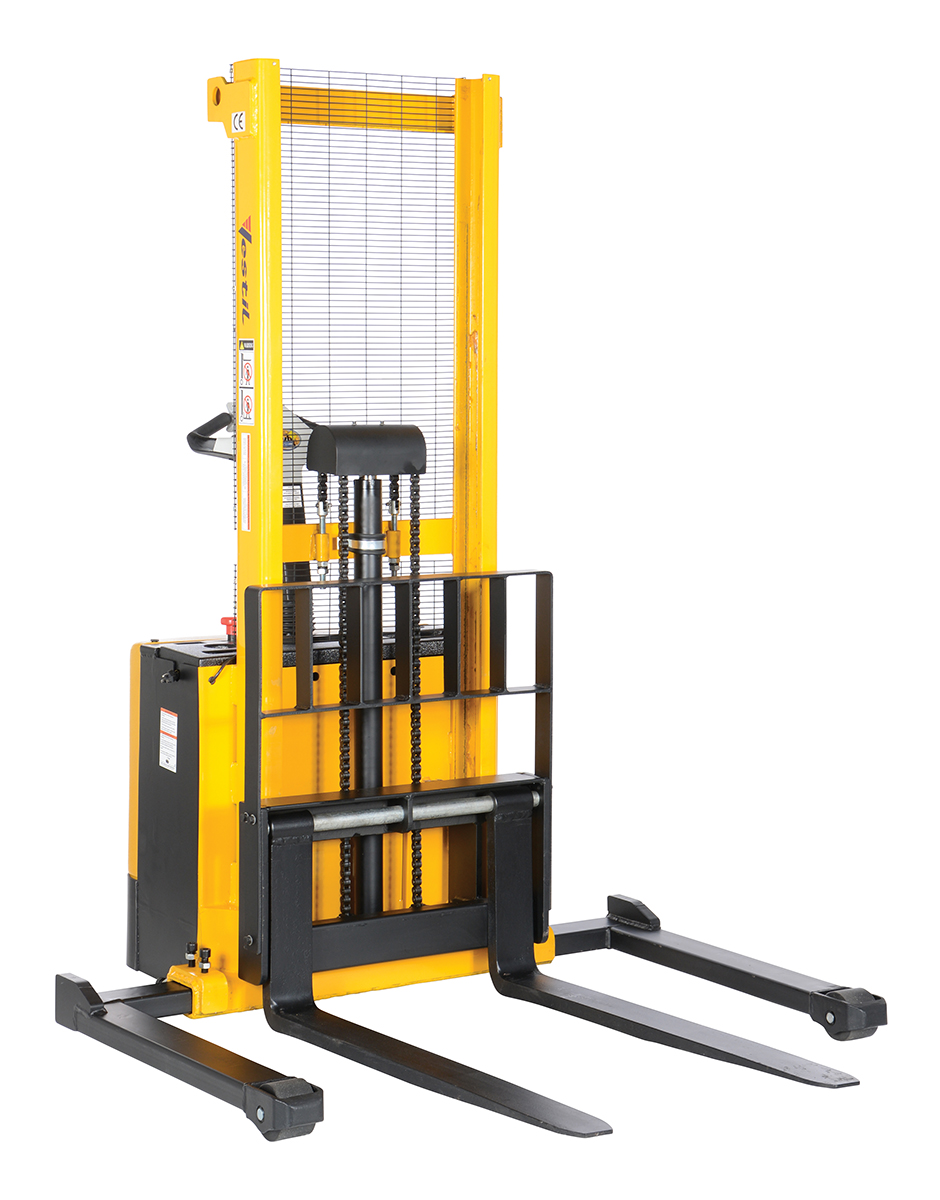

Steel Adjustable Powered Lift Stacker 62 In. Raised Height 2,000 Lb. Capacity Black / YellowThe stacker with powered drive and powered lift is a fully powered electric stacker that transports loads throughout warehouse facilities quickly and with less effort. The high torque drive and lift motor handles heavy-duty jobs. The ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than five (5) seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. It includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. The power lifter features a lead acid deep cycle battery, integral battery charger, and a battery level gauge. The stacker rolls smoothly on poly-on-steel steer and load wheels.
|
||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
