S3-125-AA

Printer Friendly
Available
S3-125-AA
S3-125-AA S3-125-AA S3-125-AA S3-125-AA S3-125-AA S3-125-AA S3-125-AA S3-125-AA S3-125-AA S3-125-AA

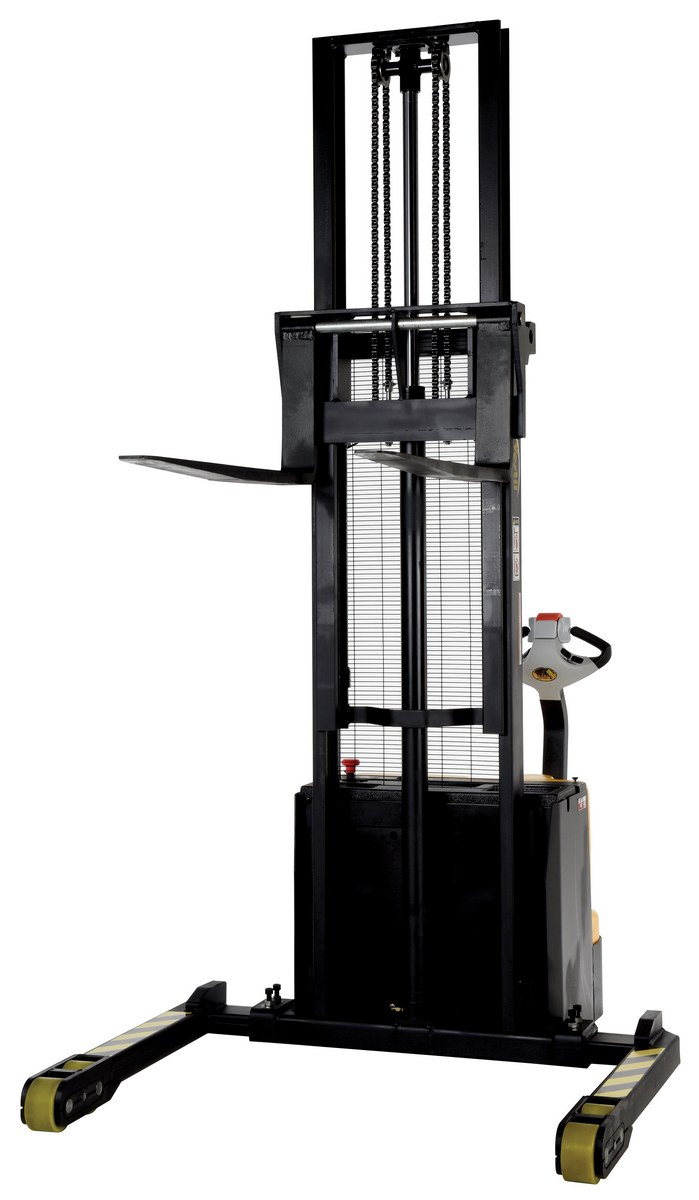

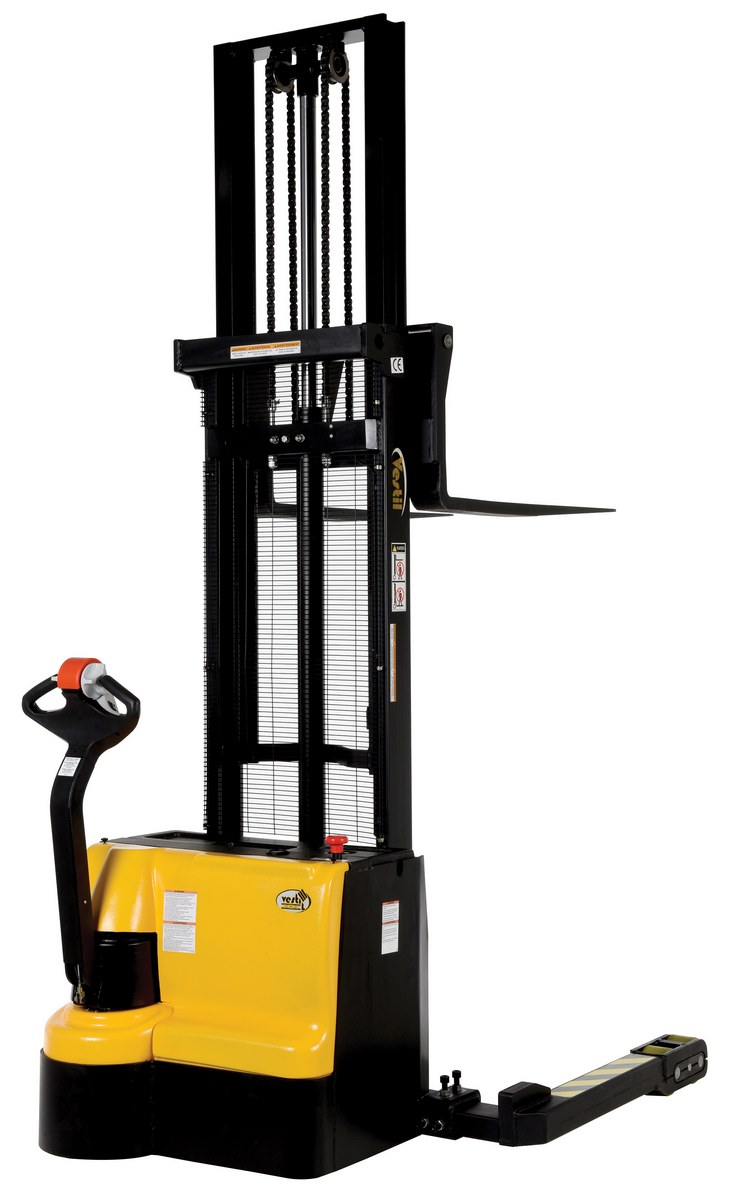

Steel Adjustable Double Mast Stacker 125 In. Raised Height 3,000 Lb. Capacity Black / Yellow

The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two batteries, integral battery charger, and a battery level gauge. Horn included.

  • Stacker has a bright yellow finish for clear visibility
  • Infinite speed adjustment in forward and reverse
  • Emergency reverse belly switch instantly reverses direction
  • Automatic shut off is applied when handle disengaged
Assembled Wt.(lbs.): 1842 Assembled Size: 50"W x 75"L x 82.5"H

Total Ship Wt.(lbs.): 2038 (only 1 package) Package 1 Size: 64"W x 86"D x 90"H Color: Black / Yellow

Uniform Capacity 0 - 62" (lb.): 3,000 Uniform Capacity 62 - 118" (lb.): 2,500 Uniform Capacity 118 - 125" (lb.): 2,000
Service Range (in.): 2-9/16 to 125 Fork Width/Length (in.): 4 x 42 Adjustable Fork Spacing (in.): 7-7/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.): 41-3/8 to 50 (ID) Overall Mast Height - Retracted (in.): 83 Overall Mast Height - Extended (in.): 144-11/16

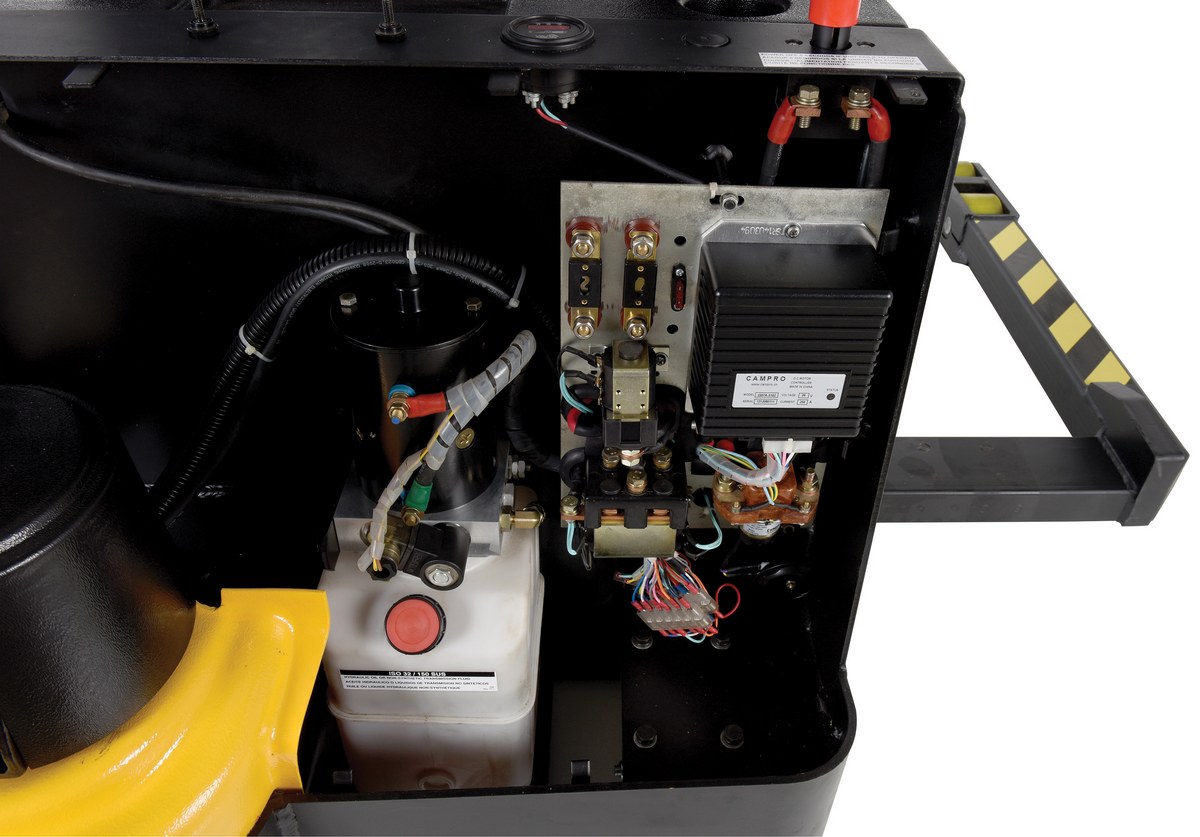

Drive Motor: DC 24V / 1.2 KW Lift Motor: DC 24V / 3.0 KW Battery: (2) 12V / 80~95 Ah
Battery Charger: 24V / 8 amp Travel Speed - Loaded (MPH): 2.8 Travel Speed - Unloaded (MPH): 3.4
Drive Wheel Diameter/Width (in.): 9-7/8 x 4 Front Wheel Qty./Diameter/Width (in.): (2) 5 x 2-9/10 Stabilizer Wheel Diameter/Width (in.): 5-9/10 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: S3-125-AA
Available
S3-125-AA

Steel Adjustable Double Mast Stacker 125 In. Raised Height 3,000 Lb. Capacity Black / Yellow

The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two batteries, integral battery charger, and a battery level gauge. Horn included.

  • Stacker has a bright yellow finish for clear visibility
  • Infinite speed adjustment in forward and reverse
  • Emergency reverse belly switch instantly reverses direction
  • Automatic shut off is applied when handle disengaged
Dimensions: 50"W x 75"L x 82.5"H Sell UOM: -- Color: Black / Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 2038 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity 0 - 62" (lb.): 3,000 Uniform Capacity 62 - 118" (lb.): 2,500 Uniform Capacity 118 - 125" (lb.): 2,000
Service Range (in.): 2-9/16 to 125 Fork Width/Length (in.): 4 x 42 Adjustable Fork Spacing (in.): 7-7/8 to 26-3/4 (OD)
Adjustable Leg Spacing (in.): 41-3/8 to 50 (ID) Overall Mast Height - Retracted (in.): 83 Overall Mast Height - Extended (in.): 144-11/16
Drive Motor: DC 24V / 1.2 KW Lift Motor: DC 24V / 3.0 KW Battery: (2) 12V / 80~95 Ah
Battery Charger: 24V / 8 amp Travel Speed - Loaded (MPH): 2.8 Travel Speed - Unloaded (MPH): 3.4
Drive Wheel Diameter/Width (in.): 9-7/8 x 4 Front Wheel Qty./Diameter/Width (in.): (2) 5 x 2-9/10 Stabilizer Wheel Diameter/Width (in.): 5-9/10 x 2
