Model Details
The steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.
Uniform Capacity (lb.): 5000 | Height Difference (in.): 4 | Steel Strength (psi): 55000 |
Bend Degree: 11 | Bend Distance from Beveled Edge (in.): 9 | Leg Distance from Beveled Edge (in.): 10 |
Plate Thickness (in.): 3/8 | OSHA: 1910.30(a) | ANSI: MH 30.2 |
Quickship Item?
Can It Ship UPS/FedEx?
Details For Model: SE-4830 |
||||||||||||||||||||||||||

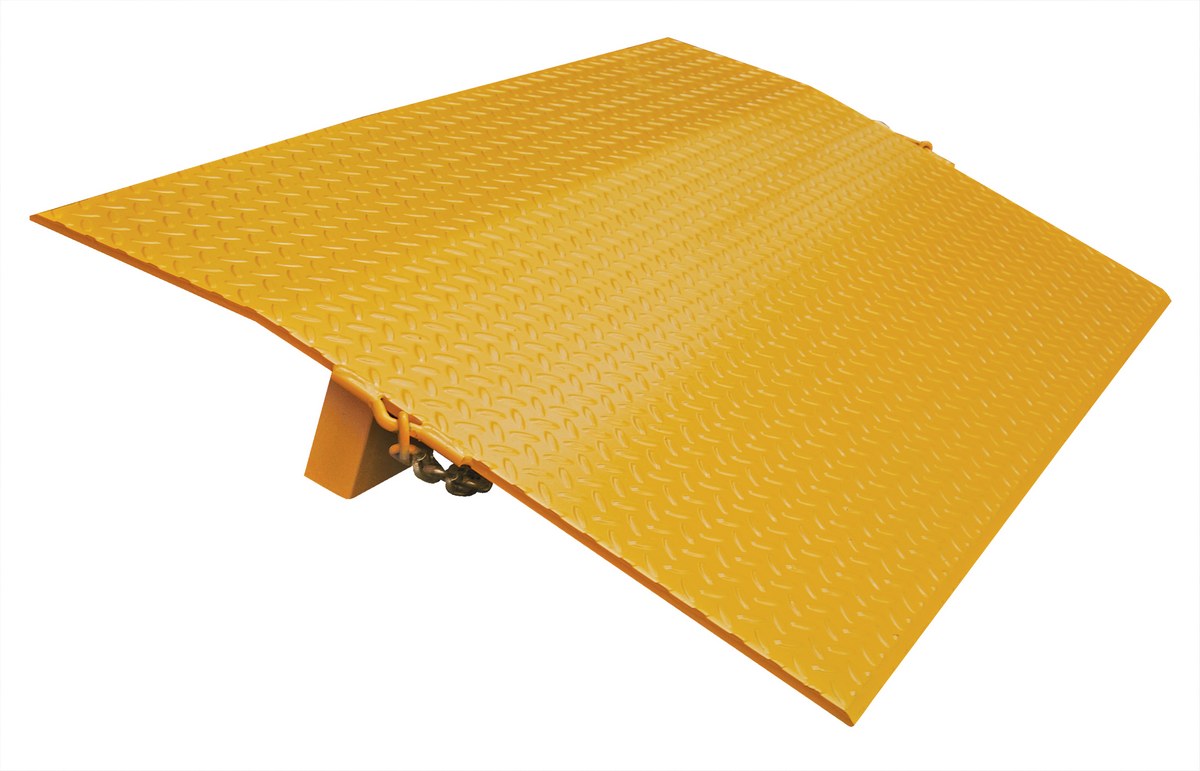

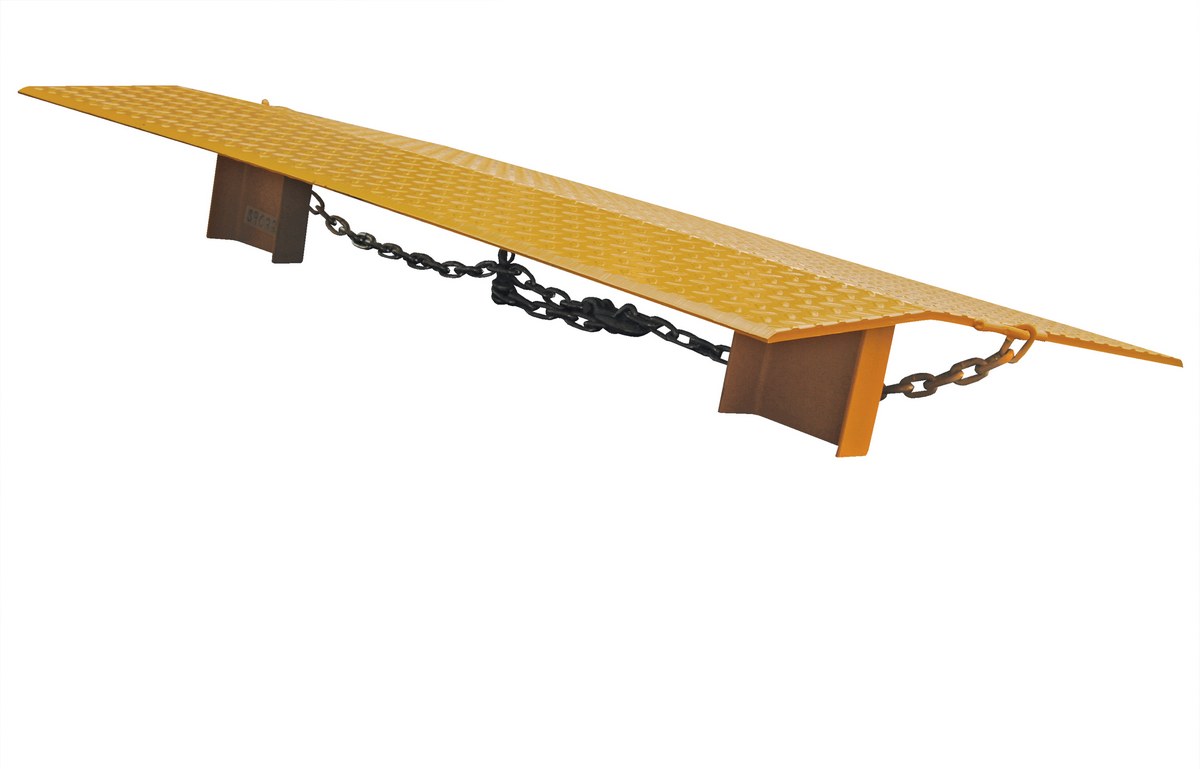

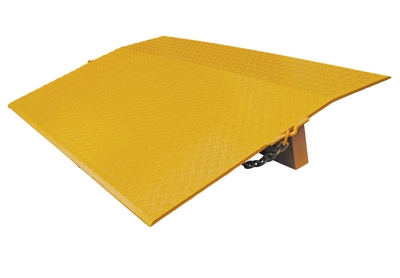

Steel Truck Dock Plate 30 In. x 48 In. x 7-9/16 In. 5,000 Lb. Capacity YellowThe steel truck dock plate is constructed of high strength INX-55 (55,000 psi) steel. Safety locking legs prevent slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for smooth entry and exit. Chain pickup comes standard. Designed with an 11 degrees bend located 9" from the beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When using three wheeled pallet trucks, select capacity +20% due to concentrated load center of board.
|
||||||||||||||||||||||||||
|
||||||||||||||||||||||||||
