ASP-48-3-HR

Steel Adjustable Step Stand 48 Inches Wide 3-Step with Handrails 500 Lb Capacity Yellow

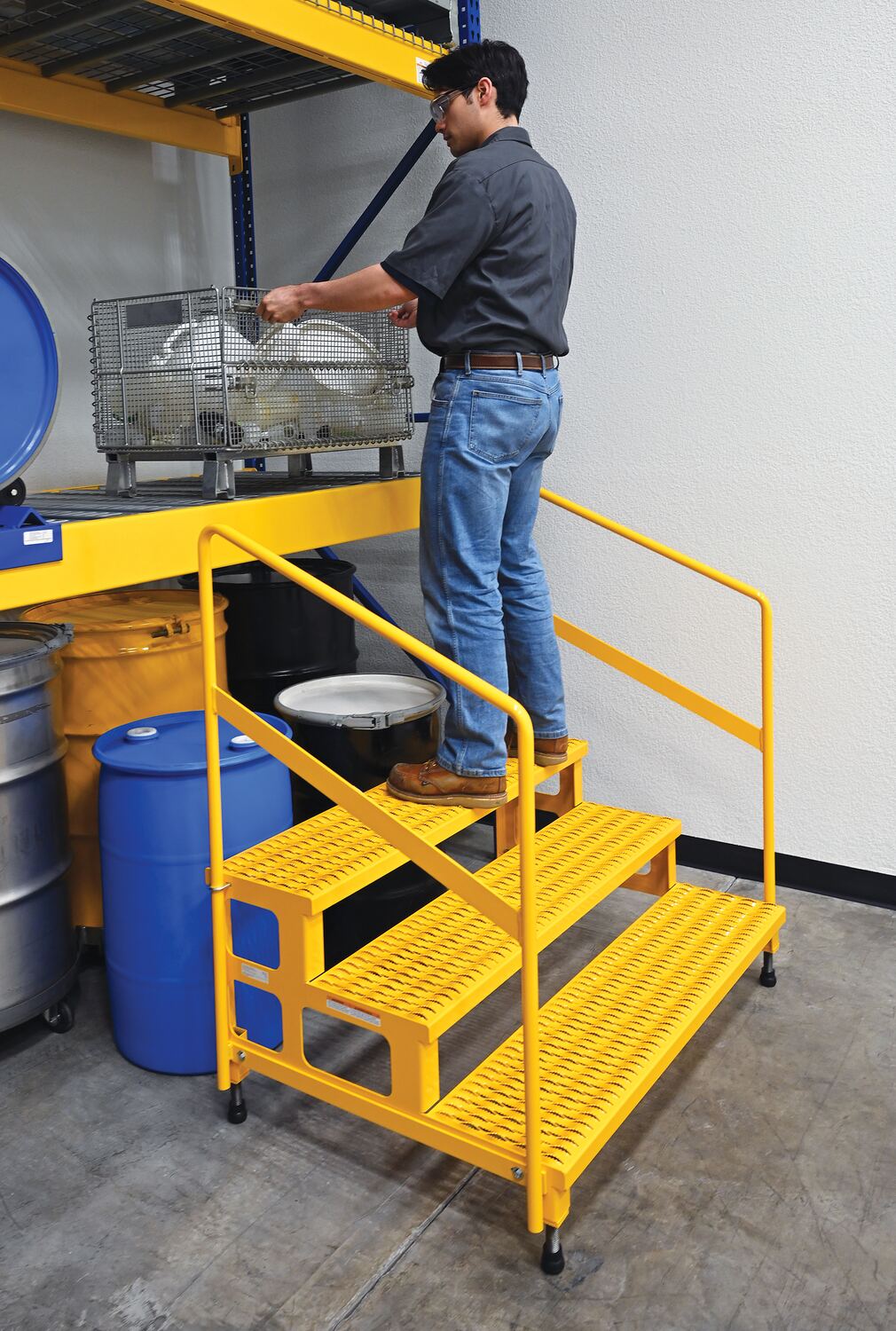

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. Step angle is maintained at a stable 30 degrees. Built of powder coated welded steel with schedule 40 steel handrails. Do not use the stand if it cannot be leveled properly or remains unstable despite adjusting the legs appropriately.
Available QuickShip Non-Returnable
Key Features

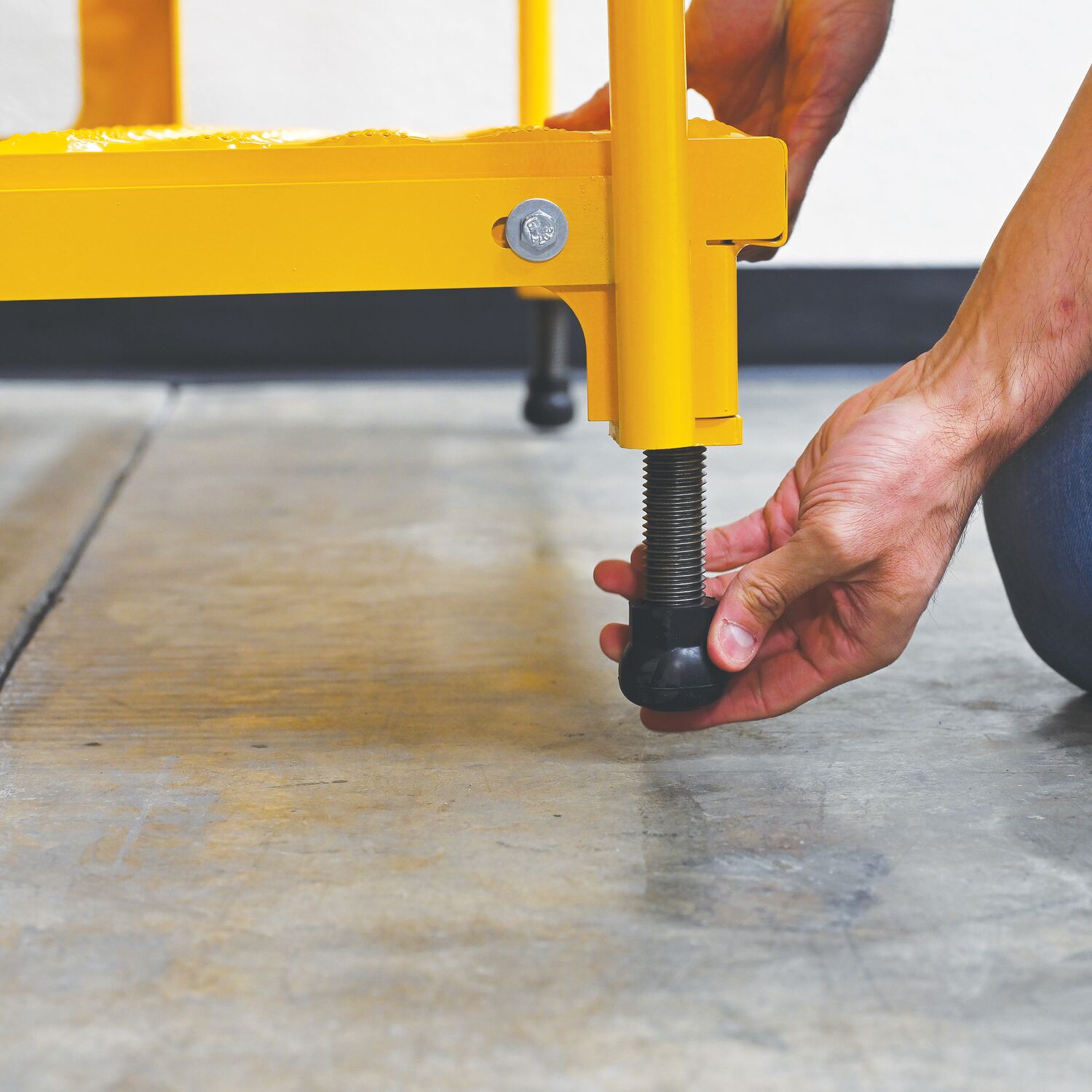

  • Independently adjustable height legs

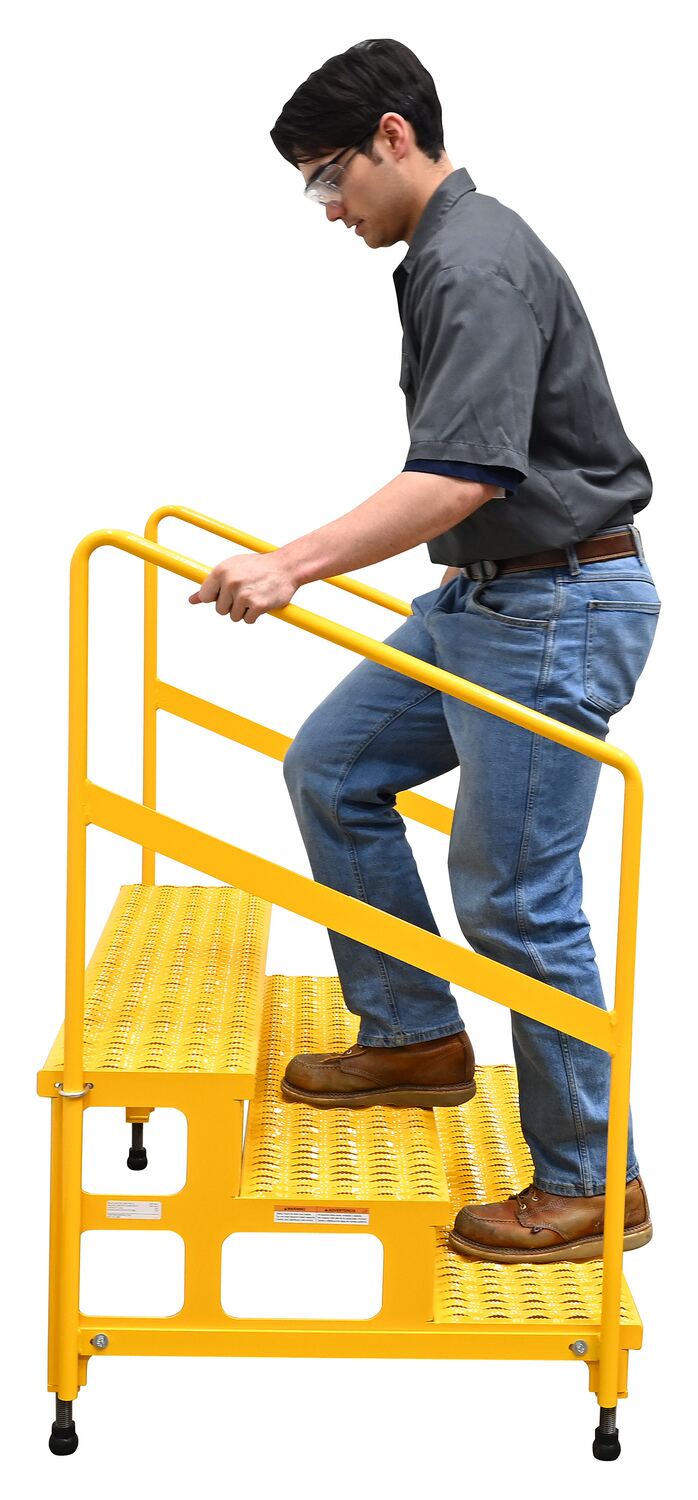

  • Handrails included for user stability

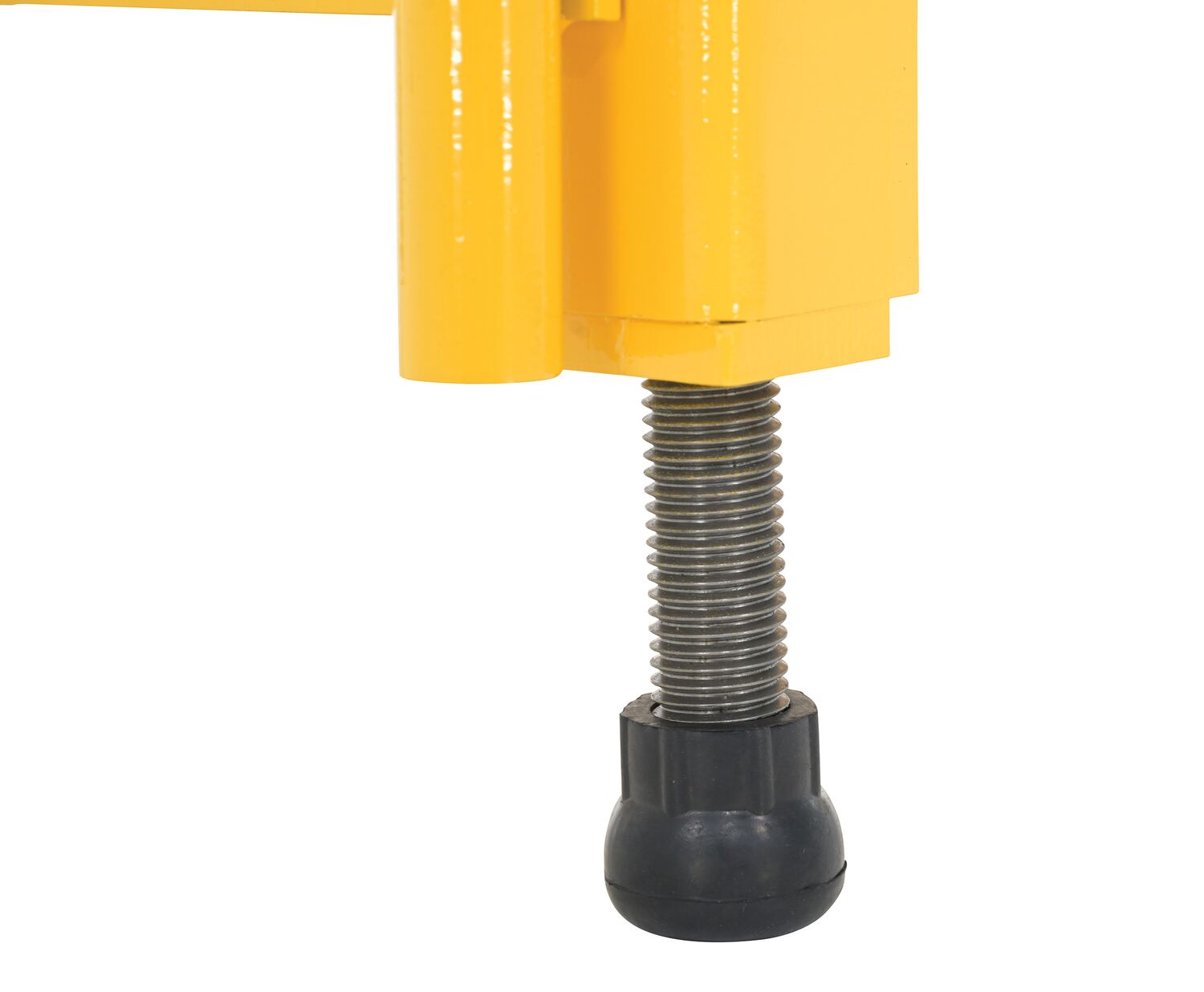

  • Each leg fitted with rubber tip for better grip & traction
  • Serrated step surface provides excellent traction
Product Image

Visual Reference

ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
ASP-48-3-HR
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 149 lbs
Assembled Size 51.125"W x 33.875"L x 52"H
Total Ship Weight 169 lbs
Package 1 Size 40"W x 48"D x 38"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Step Width (in.) 49
Number of Steps 3
Uniform Capacity (lb.) 500
Adjustable Bottom Step Height Range (in.) 6 to 8-1/4
Adjustable Middle Step Height Range (in.) 13 to 15-1/4
Adjustable Top Step Height Range (in.) 20 to 22-1/4
Step Material Serrated Steel
Step Depth (in.) 11-3/4
Step Angle (degrees) 30
Leg Feature Anti-Slip Tips
Adjustable Legs? Yes
Handrail Construction Steel Tubing
Includes 2 Bolt-On Handrails
Overall Width (in.) 51-1/8
Overall Length (in.) 33-7/8
Overall Height (in.) 53
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   ASP series Adjustable Step-Mate Stands Owners Manual   Label Page PDF   90 Days Warranty
